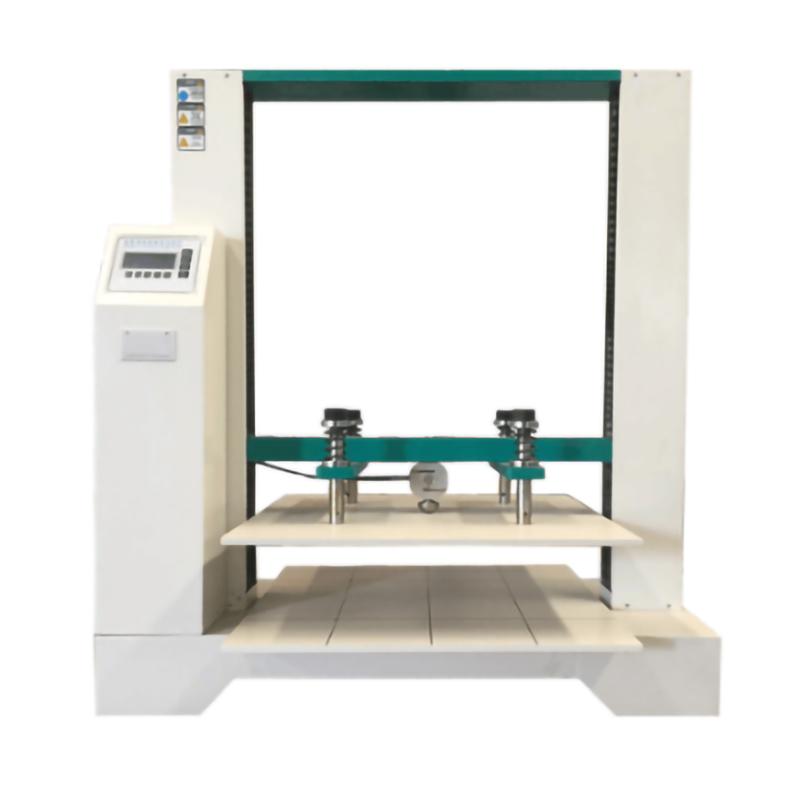

PINKE PK-501 Carton Compression Tester
PINKE PK-501 Carton Compression Tester
Model：
PK-501
pinke
pinke PK-501 Carton compression testing machineSPEC
pinke PK-501 Carton compression testing machineDetails
pinke PK-501 Carton compression testing machinePacking list
- SKU
- NB033469
- load cell
- Level 0.5 high-precision Power Sensors
- Maximum test force
- 5000 kg
- Accuracy level
- Level 1
- Test force test range
- 0.4%~100%FS
- Force Accuracy
- +/- 1% or less
- Analysis
- 1/200000
- force magnification
- full automatic
- Displacement error of indication
- +/- 1% of the indication
- Displacement resolution
- 0.05mm
- Control mode
- Microcomputer, touch screen optional
- Transmission mode
- AC variable frequency motor motor
- Motor function
- 2.0Kw
- Test speed range
- 10~300min/mm
- Speed Accuracy
- +/- 1% of the indication
- Test space
- 1000 * 1000 * 1000 mm, 1200 * 1200 * 1200 mm, 1500 * 1500 * 1500mm optional, can also be customized according to customer requirements
- display system
- Special software for material testing machine developed by PK-2000 based on XP leveling
- Automatic shutdown device
- 1. Upper and lower limit travel protection device 2. Maximum Capacity overload protection 3. Leakage protection
- Volume
- 150×100×200cm
- Weight
- About 1000kg
- Power supply Voltage
- AC~220V 50Hz
PK-501
Carton compression testing machine
Description
It is suitable for corrugated boxes, honeycomb boxes and other packaging parts to carry out pressure resistance (maximum crushing force), deformation, stacking test, the equipment adopts Intel central processing unit to control the test process, full digital circuit, professional measurement and control software support, the test function is powerful, can carry out constant pressure deformation, deformation measurement pressure, maximum crushing force and stacking test four tests, fully meet the test requirements of cartons.
Meet the criteria
ISO2874、TAPPIT804、JIS Z0212、ISO2872、NF H3 001、CNS 2236/3511、QB/T 1048
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
