PY-H609 Bending Stiffness Tester (touch screen) measuring range ≤ 500mN · m

SE
Puyun PY-H609 Bending Stiffness Tester (touch screen) can be used to detect the bending stiffness performance of sheet materials such as films, mica sheets, graphite sheets, and composite materials at the same time. The sample size is 38 * 70mm (standard size), the actual measurement size is 38 * 50mm (standard), and the span accuracy is ± 0.1mm.
$2636.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

PuYun PY-H609 Bending Stiffness TesterSPEC

PuYun PY-H609 Bending Stiffness TesterDetails

PuYun PY-H609 Bending Stiffness TesterPacking list

SKU
NB033476
Specimen size
38 * 70mm (standard size)
Actual measurement size
38 * 50mm (standard)
bending length
60mm、50mm、40mm、30mm、25mm、20mm、15mm、10mm、5mm
span Accuracy
±0.1mm
Measuring range
0 ~ 10000mN
Sensors
Sensing Accuracy ± 0.1%
resolution
0.01mN
Bending angle
Adjustable from 1 to 92℃
Angle Accuracy
±0.1
Angle measurement
A single test can measure 3 different angles at the same time, and 1-90 ° can be set arbitrarily.
Angular velocity control
0.5~ 50 °/sec (adjustable), three test angles and duration are independently adjustable
Film thickness measurement
Film thickness in (0.01~ 5.0) mm paper and other composite materials
Bending time
Choose different bending times based on material elasticity
Specimen holder
Manual fixture operation, automatic reset after test completion
Display
7Inch touch screen operation interface, visual menu operation.
Clamping method
Unlimited blessing, continuous clamping without damage
signal output
Standard computer signal output, link to computer, computer operating platform, can realize document editing (optional)
Self-calibrating
Equipment can be self-calibrated, standard calibrating tools
printout

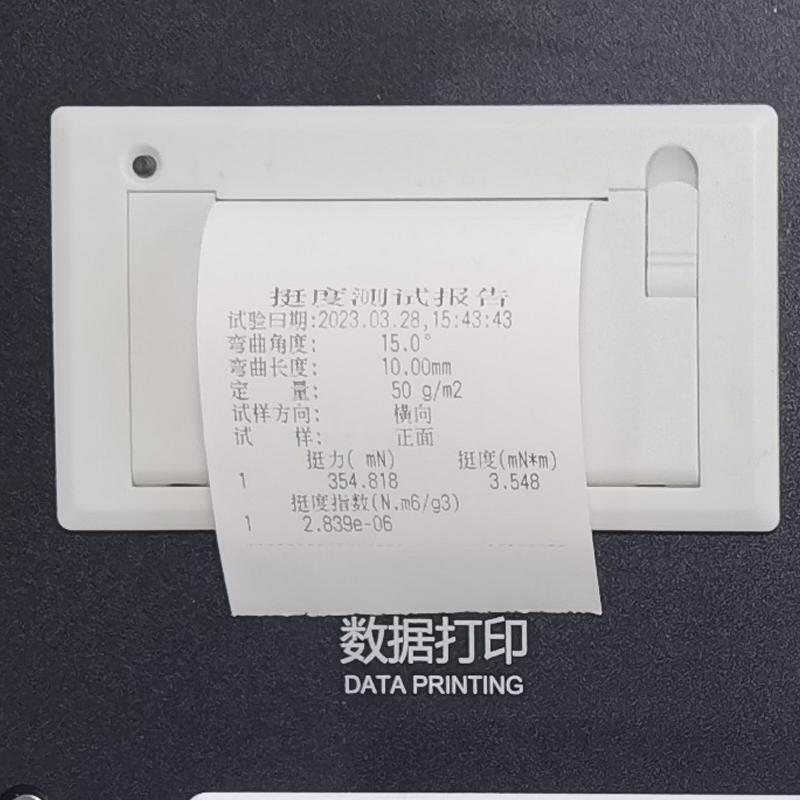

Modular integrated thermal printer
PY-H609
Bending Stiffness Tester

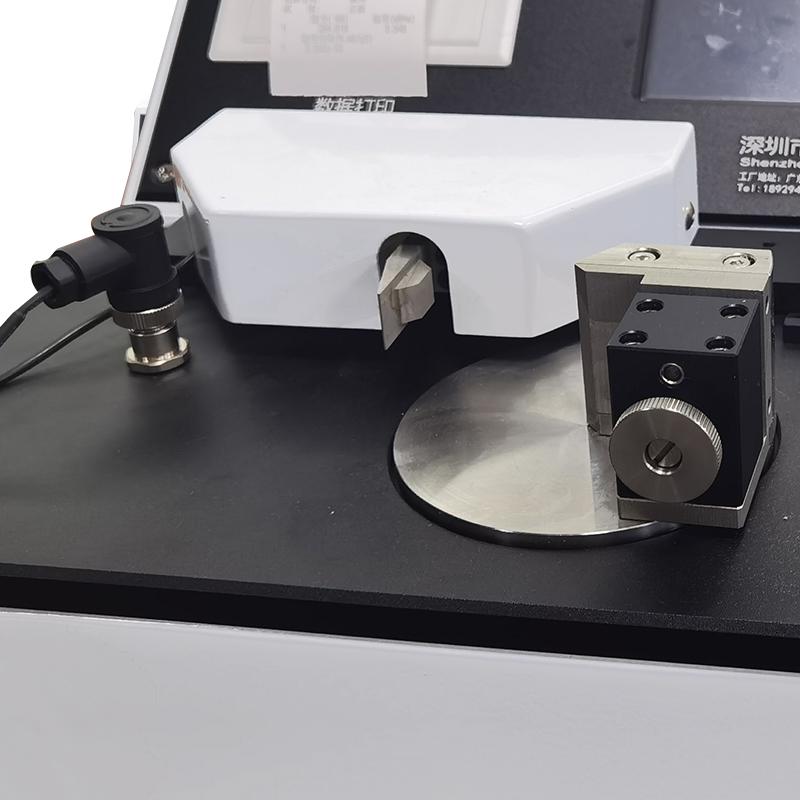

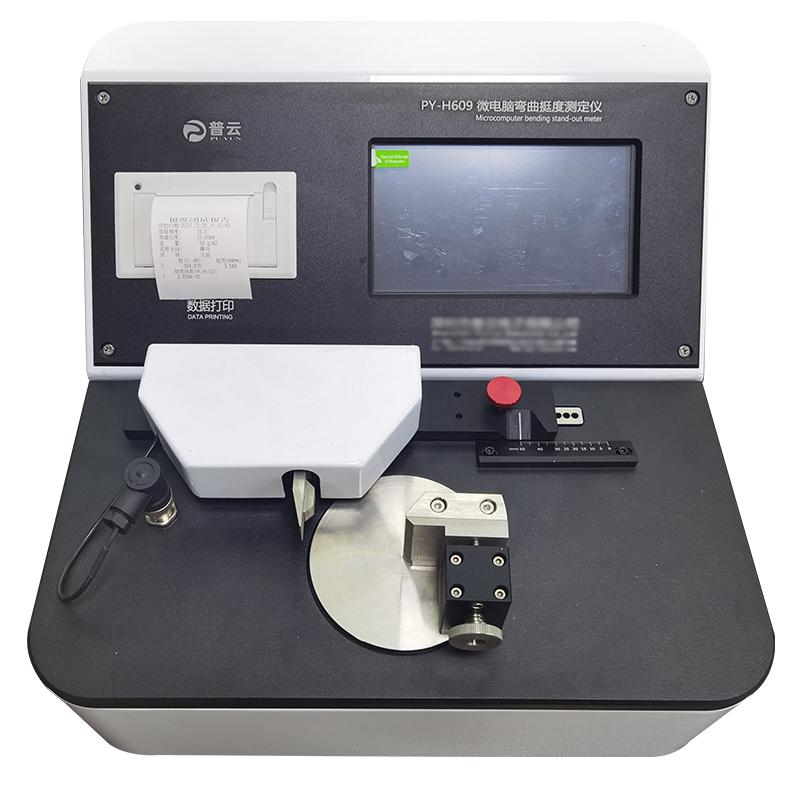

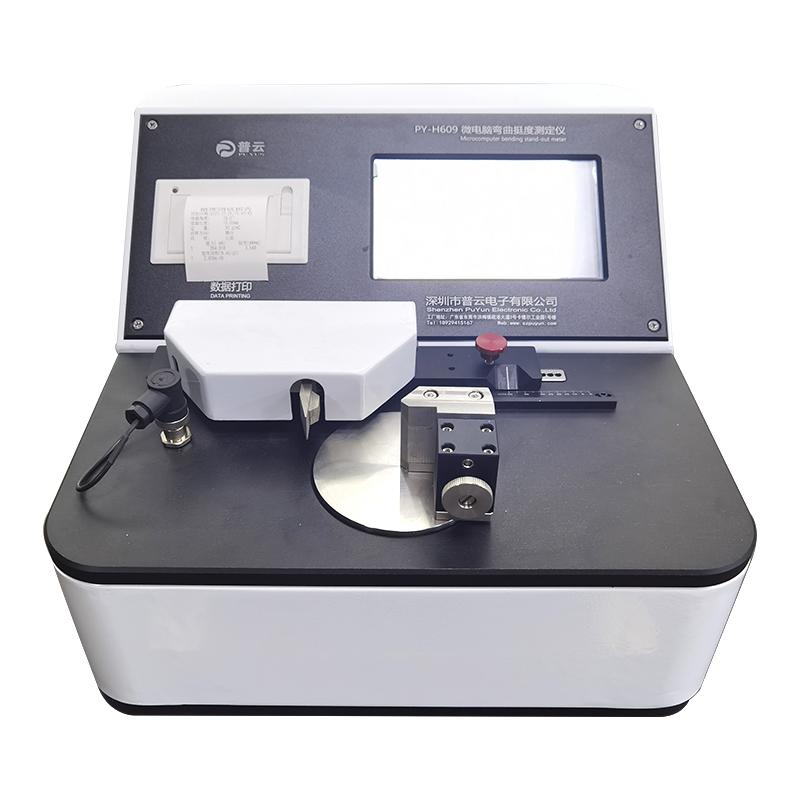

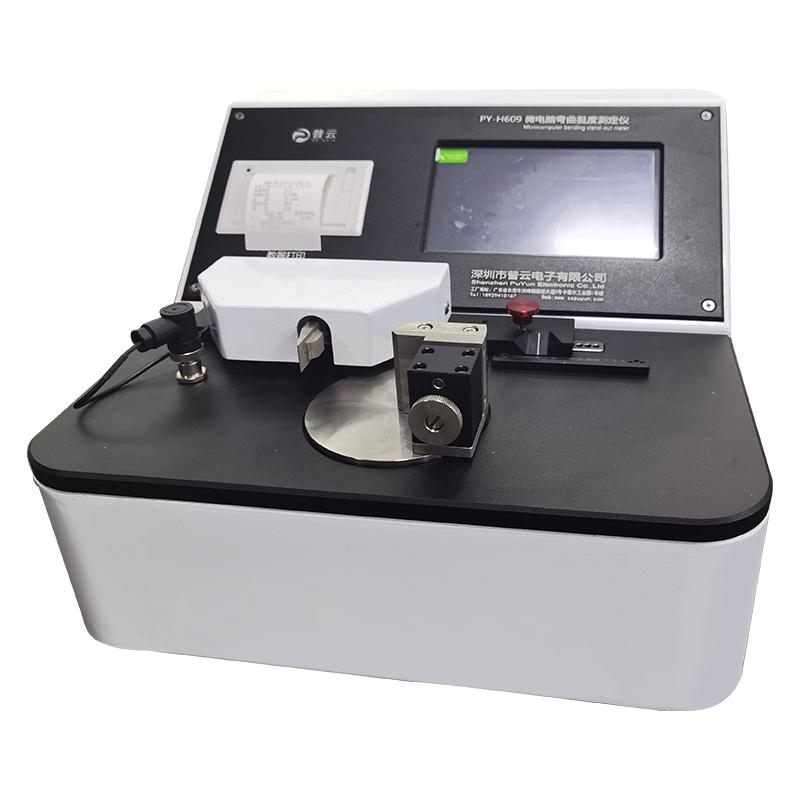

PY-H609 Bending Stiffness Tester (touch screen) measuring range ≤ 500mN · m Picture

Introduction

PY-H609 Microcomputer Bending Stiffness Tester is used to detect the bending stiffness of paper and cardboard. The bending stiffness can be used to detect the bending stiffness of sheet materials such as films, mica sheets, graphite sheets, and composite materials performance.

Standards

GB/T 2314 Determination of static bending stiffness of paper and board General principles, GB/T 2236 Determination of paper and board bending stiffness, ISO 5628 Determination of paper and board bending stiffness. Two-point method, three-point method and four-point method General principles, ISO 2493 Determination of bending stiffness of paper and board - Part 1

FAQ
QI want to measure the bending stiffness of the paper. Do you have a recommended instrument?
A PY-H609 bending stiffness tester is specially designed in accordance with national standards GB/T 22364 and ISO 5628, which can accurately measure the static bending stiffness of paper, and the data is reliable, which fully meets your testing needs.
QIn addition to measuring paper, can this instrument measure other materials?
A Yes. PY-H609 has a wide range of applications. In addition to standard paper Cardboard, it is also commonly used to test the bending stiffness performance of film, mica sheet, graphite sheet and various composite sheet materials. One instrument can meet the detection needs of a variety of materials.
QIs the angle and size of this instrument easy to adjust? What should I pay attention to when selecting?
A Very convenient. It supports adjustable bending angles from 1 to 92 degrees with high accuracy, and can measure three different angles at the same time in one test. Specimen size and bending length are also available in a variety of options. When selecting a model, if you need to test materials of different thicknesses (0.01-5 mm) and resilience, and want to set the test conditions flexibly, this instrument's manual fixture, adjustable angular speed and Touchscreen operation are suitable for more efficient and accurate testing.
QI would like to know about the wire stiffness tester, about OD5.0mm in diameter, mainly to test the softness of the wire. Can the type of mobile phone data cable be tested? Can I send samples?
A Yes, if you need to send samples, please contact our sales technology and it will be arranged for you.
