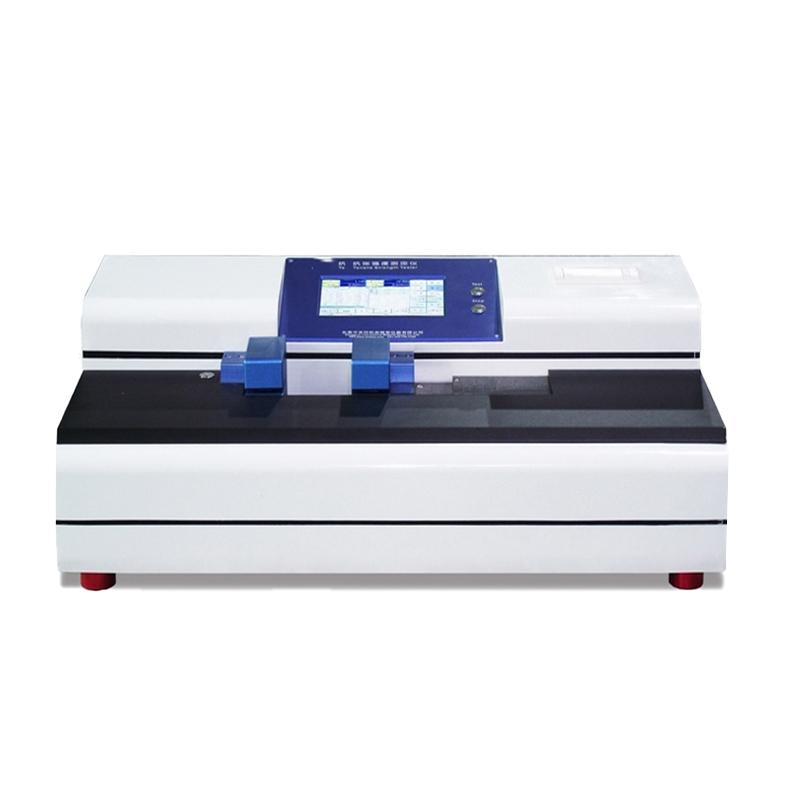

PUYUN PY-H801B Tensile Strength Tester

PUYUN PY-H801B Tensile Strength Tester is used to detect the tensile strength of paper, the elongation of paper, the fracture length of paper, tensile energy absorption, tensile index, tensile energy absorption index, etc., PY-H801B Tensile Strength Tester strength resolution 1/100000, Data analysis sampling Frequency 400 times/second, force accuracy indication +/- 0.1% (20~100% FS), Precision ≤ +/- 0.5%.
Model：
Certificate
Contact
Details SPEC

PuYun PY-H801B Tensile Strength TesterSPEC

PuYun PY-H801B Tensile Strength TesterDetails

PuYun PY-H801B Tensile Strength TesterPacking list

SKU
NB033477
power resolution
1/100000
Data analysis sampling
Sampling Frequency 400 times/second
Force Precision
±0.1%(20~100％FS)
Force Precision
≤±0.5%
Displacement resolution
≤0.1mm
Sample holding method
Pneumatic automatic clamping
clamping pressure
0.2 - 0.7Mpa (adjustable)
Specimen size
1-25mm
Force range
0.4~100%FS
Measurement range of elongation
45-260mm
Test speed Accuracy
（1~10）mm/min：±0.1mm/min
clip spacing
The test length is arbitrarily selected in the range of (1 to 250) mm
stretching speed
1~ 500mm/min stepless speed change
return speed
100mm/min
Force range
3~ 30N (for household paper), 6~ 500N for cultural paper, Encasement paper, special paper, paper-based composites, etc
Sensing system protection
Rapid sensor protection device PROTEC SYSTEM
Transmission screw
Adopting Taiwan, China single-column structure precision ball screw
Human Machine Interface
7.0In touch screen operation platform, detection status with Linear dispersion diagram display.)
printout
modular integrated thermal printer
Dimensions
650*500*400mm
Weight
About 45kg
PY-H801B
Tensile Strength Tester
PUYUN PY-H801B Tensile Strength Tester Picture

Introduction

Paper cardboard horizontal Tensile Strength Tester, also known as paper tensile Strength Tester, is used to detect the tensile stress of paper, the elongation of paper, the crack length of paper, tensile energy absorption, tensile index, tensile energy absorption index, etc.

Standard basis

GB/T453 Determination of tensile strength of paper and cardboard, GB/T 12914 Determination of tensile strength of paper and cardboard at constant velocity tensile method, ISO 1924.2 Determination of tensile properties of paper and cardboard


FAQ
QFind a tensile strength tester for QB/T2693
A This PY-H801B tensile strength tester is it.
