PUYUN PY-H801A Film tensile strength paper Cardboard Tensile Tester

PUYUN PY-H801A film tensile strength paper Cardboard Tensile Tester is used to detect the tensile strength of paper, paper elongation, paper breaking length, tensile energy absorption, tensile index, tensile energy absorption index, etc. PY-H801A film tensile strength paper Cardboard Tensile Tester test force test range 0.4%~ 100% FS, indication Precision error of indication +/- 1%, indication variability ≤ 1%.
Model：
Certificate
Contact
Details SPEC

PuYun PY-H801A Film tensile strength paper Cardboard Tensile TesterSPEC

PuYun PY-H801A Film tensile strength paper Cardboard Tensile TesterDetails

PuYun PY-H801A Film tensile strength paper Cardboard Tensile TesterPacking list

SKU
NB033493
Indication Precision
Error of indication +/- 1%, indication variability ≤ 1%
Measurement range of elongation
(0~130) mm (under the standard test length of 180mm)
Test speed error
（5~10）mm/min：±1mm/min、（10~100）mm/min：±5%、（100~500）mm/min：±6%
Force Accuracy
+/- 1% or less
Clip spacing positioning error
±0.5mm
Moving chuck reset error
±0.1mm
Force resolution
0.1N
Deformation resolution
≤0.1mm
clip spacing
The test length is arbitrarily selected in the range of (1 to 400) mm
stretching speed
(6~ 150N) 1~ 500mm/min infinitely variable speed, (6~ 1500) N 1~ 180mm/min infinitely variable speed.
return speed
5~180mm/min
Sensing system protection
Rapid sensor protection device PROTEC SYSTEM
distance limit
High-precision distance limit switch, external, can be adjusted according to different material requirements
Transmission screw
Adopting Taiwan, China single-column structure precision ball screw
Human Machine Interface
7.0In touch screen operation platform, detection status with Linear dispersion diagram display.
PY-H801A
Film tensile strength paper Cardboard Tensile Tester

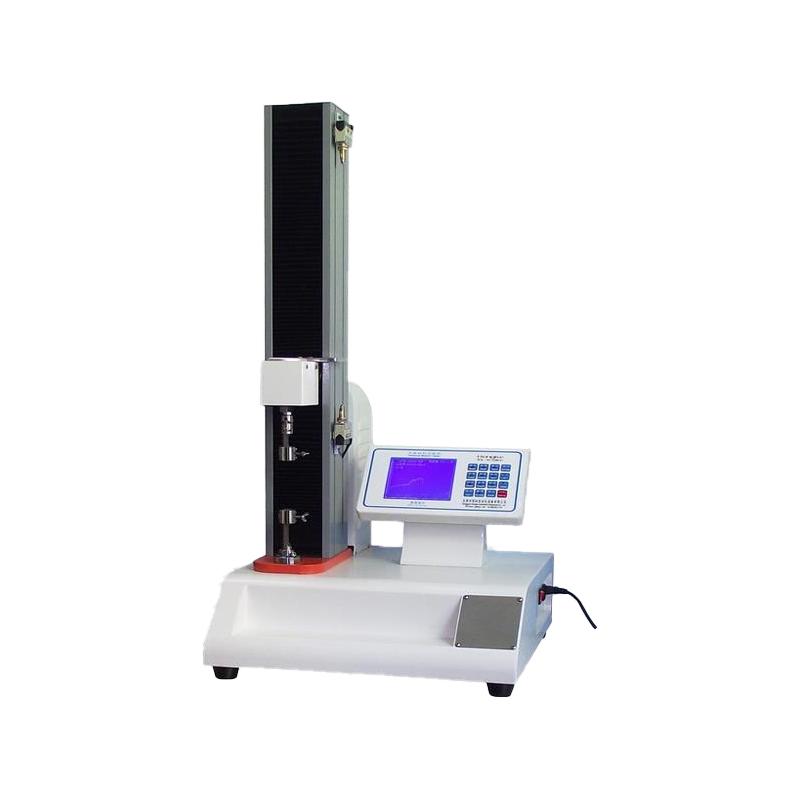

PUYUN PY-H801A Film tensile strength paper Cardboard Tensile Tester Picture

Introduction

The paper tensile stress Tester is used to detect the tensile stress, the elongation of the paper, the crack length of the paper, the tensile energy absorption, the tensile index, the tensile energy absorption index, etc.

Standard basis

GB/T453 Determination of tensile strength of paper and cardboard, GB/T 12914 Determination of tensile strength of paper and cardboard at constant velocity tensile method, ISO 1924.2 Determination of tensile properties of paper and cardboard


FAQ
QIs there a QB/T2693 standard Tensile machine?
A This Puyun Electronic Tensile Tester is fine!
