PUYUN PY-J633 paper Cardboard film three-point bending stiffness testing machine

PUYUN PY-J633 paper Cardboard film three-point Bending Stiffness Tester is mainly used for the measurement of Cardboard, color boxes (such as cigarette boxes and cosmetic boxes) of the indentation force (ie, 90 degree crease rebound force), PY-J633 paper Cardboard film three-point Bending Stiffness Tester capacity selection 300KG, accuracy level 1, test force test range of 0.4%~ 100% FS.
Model：
Certificate
Contact
Details SPEC

PuYun PY-J633 Paper Cardboard Film Three Point Bending Stiffness TesterSPEC

PuYun PY-J633 Paper Cardboard Film Three Point Bending Stiffness TesterDetails

PuYun PY-J633 Paper Cardboard Film Three Point Bending Stiffness TesterPacking list

SKU
NB033494
load cell
High-Precision Force Sensors
Capacity selection
300KG
Accuracy class
Level 1
Test force test range
0.4%~100%FS
Force Accuracy
+/- 1% or less
Displacement error of indication
+/- 1% of indication
Displacement resolution
0.01mm
Measurement range
2%~100%FS
Limit of indication error
+/- 0.5% of the indication
Measurement range
(10~600)mm
Limit of indication of large deformation error
+/- 1% of indication
Transmission mode
High-precision variable frequency motor
Transmission coupling
Forged for high carbon steel, good mechanical strength performance, no change
Transmission screw
Adopting Taiwan, China single-column structure precision ball screw
Test speed
4 gears fixed adjustable speed change, first gear (5~ 5000) mm/min stepless speed change
Speed Accuracy
+/- 1% of the indication
Fixture processing
All fixtures are made of hard chrome Eletroplating, HRC55 or higher
Body surface preparation
Adopt DuPont powder, electrostatic spray painting process, high temperature 200 ℃ curing to ensure long-term fading
PY-J633
Paper Cardboard Film Three Point Bending Stiffness Tester

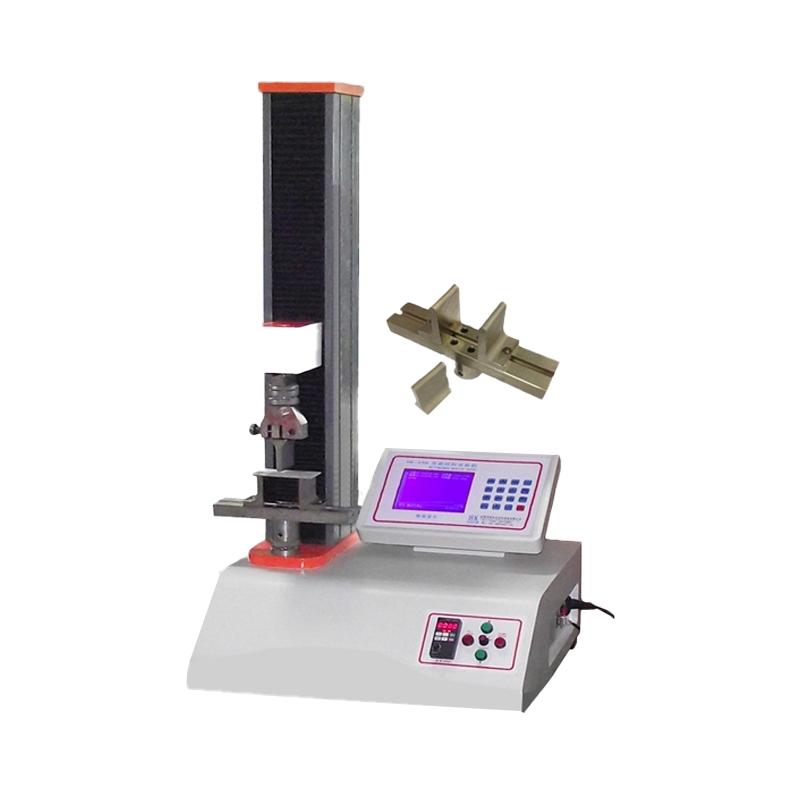

PUYUN PY-J633 paper Cardboard film three-point bending stiffness testing machine Picture

Applications

Puyun brand PY-J633 series paper and cardboard film three-point bending stiffness testing machine (material testing machine) is a multi-functional stiffness Tester, mainly used to measure the indentation force (that is, the rebound force of 90 degree creases) of cardboard and color boxes (such as cigarette boxes and cosmetics boxes), and is the basic instrument for testing the flexural strength performance of paper and cardboard. The three-point stiffness Tester is the basic instrument for the three-point stiffness performance testing of cardboard, which adopts a vertical and multi-column structure, and the chuck spacing can be arbitrarily set within a certain range, with large tensile stroke, good stability up and down running, and high test accuracy. The instrument is suitable for paper, cardboard, paper core, plastic, film and other non-metallic materials.

Meets standards

GBT 22906.6-2008 Determination of paper cores – Part 6: Determination of flexural strength (three-point method)

GBT 23144-2008 Paper and cardboard -- Determination of static bending stiffness -- General principle (two, three, four points)

•GBT 1449-2005 Test Method for Flexural Properties of Fiber Reinforced Plastics (Three Points)

Multiple protection devices

(1). The mechanical opening switch protects the upper and lower limit strokes

(2). Emergency emergency stop switch braking protection

(3). Overcurrent, overVoltage, undercurrent, underVoltage, leakage overload protection

(4). Software overload limit protection

(5). Breakpoint shutdown protection

(6). Emergency braking can be carried out in case of emergency

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
