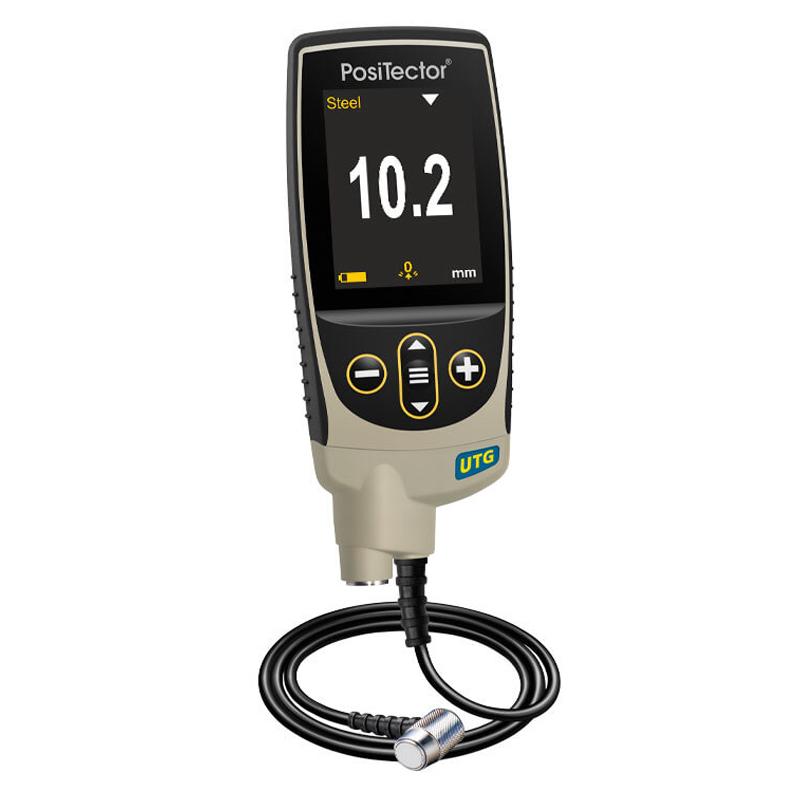

Defelsko PosiTector UTG M3 ultrasonic wall thickness Measurement Instrument paints penetration function, wear-resistant aluminum oxide probe

Advanced UTGM3-E

Ultrasonic Thickness Gauge

overview

The Defelsko Positector UTG M3 Ultrasonic Wall Thickness Gauge is available in:UTG M series premium models, comparedThe UTG M1 adds more features to enable 10W of data storage, which not only transmits data wirelessly, but also displays graphs in real-time for easy data analysis.The transducer of the UTG M3 Ultrasonic Wall Thickness Gauge is a 5MHz contact multi-echo probe with paint coating penetration to measure material wall thickness without removing the coating.The thickness range of UTG M3 is 2.5~125mm.

Advantages

1) High contrast color LCD screen

2) A-scan with adjustable Gain and screenshot function for further analysis and recording

3) B-scan, which shows the cross-sectional profile of the test material

4) It can store 100,000 measurement readings, up to 1,000 batches

5) Store thickness, profile and environmental measurements in a single batch

6）On-screen batch annotation, add annotations, variable batch names and more with the new built-in QWERTY keyboard

7) WiFi Technology - Wirelessly sync to PosiTector.net, download software updates, and connect to mobile devices for more extended features

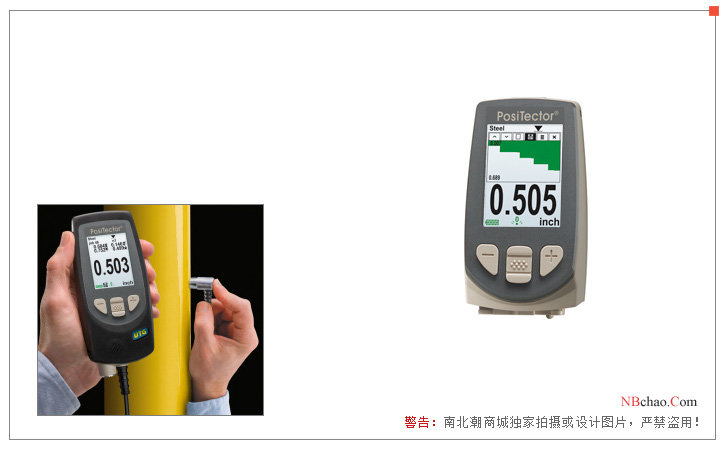

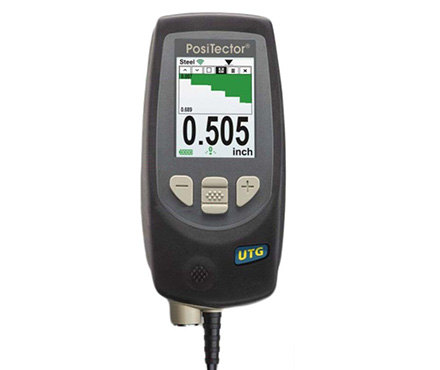

Pictures

Probe Dimension Drawing

UTG M3 probe

The UTG M probe has a paint permeability that allows for fast and accurate measurement of the thickness of paint-coated metal materials without the need to remove the coating. It is also ideal for measuring blasted materials or other coating applications that require a long-lasting, wear-resistant contact surface.

1) 5MHz contact probe with abrasion resistant alumina probe

2) Multi-echo technology to achieve an average of 3 or more echoes ensures accurate and reliable readings

3) This is an accurate measurement method to measure the wall thickness of paint structures because it automatically ignores the coating, reducing inspection time and cost

4) Different echo modes can be switched freely

- Multi-echo mode can eliminate coating thickness

-Single echo mode detects pits and defects and increases the measurement range

Parameter comparison

PosiTector UTG	corrode		Multiple echoes
Model	UTG C1	UTG C3	UTG M1	UTG M3
	standard	Senior	standard	Senior
probe	UTG C		UTG M
Probe type	5MHz dual element		5MHz contact
Paint permeability (multi-echo)	not		Yes
Measuring range - single echo	1.00~125.00mm		2.50~125.00mm
Measurement range - multi-echo	not		2.50~60.00mm
resolution	0.01mm		0.01mm
precision	±0.03mm		±0.03mm
size	146 x 61 x 28mm
weight	140g (excluding battery)
Meets standards	ASTM E797

concerningUTG C andFor a detailed comparison of the UTG M probes, please read theDefelsko Positector Ultrasonic Wall Thickness Gauge UTG C and UTG M Transducer Differences》

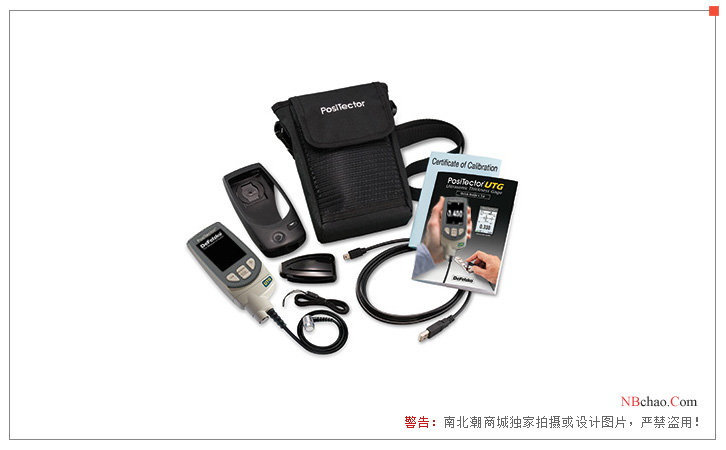

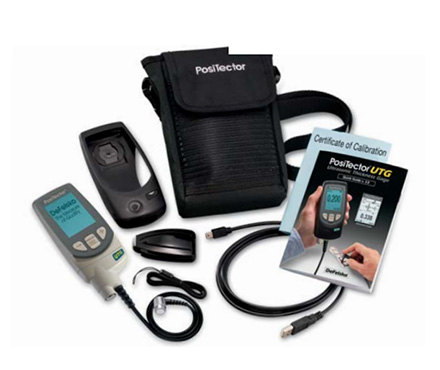

Packing list：host x1, probe x1, probe protective cover x1, lens protective cover x1, wristband x1, coupling agent x1, rubber protective cover with waist clip x1, No. 7 battery x3, nylon portable soft bag x1, English manual x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
