CHNSPEC TH-110 Haze meter, light transmitter vertical + horizontal

SE
Adopting dual standard ISO & ASTM, dual-caliber (21mm/7mm) instrument does not need to be preheated, ready-to-use measurement, 1.5 seconds results meet CIE-A, CIE-C, CIE-D65 three standard lighting Light source haze and total transmittance measurement; suitable for plastic, film, Glass, LCD panel, touch screen and other transparent translucent materials haze, transmittance one-stop measurement solution.
$1781.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

CHNSpec TH-110 haze meterSPEC

CHNSpec TH-110 haze meterDetails

CHNSpec TH-110 haze meterPacking list

SKU
NB033537
Light source
CIE-A、CIE-C、CIE-D65
follow the standard
ASTM D1003/D1044，ISO13468/ISO14782，JIS K 7105，JIS K 7361，JIS K 7136，GB/T 2410-08
Measurement parameters
ASTM and ISO Dual Standard Haze (HAZE), Transmittance (T)
Light spectrum Response
CIE Light spectrum function Y/V (λ)
optical path structure
0/d
Measurement aperture
21mm，7mm
range
0-100%
Haze resolution
0.01%
Transmittance resolution
0.01%
Haze Repeatability
φ 21mm diameter, within 0.05 (30 standard deviation differences for standard haze films with a test haze of about 40 at intervals of 5s)
Repeatability
≤0.1%
Sample size
Thickness ≤ 145mm
store data
Mass Storage
screen
7-Inch full-color touchscreen, Android Operating system
interface
USB port
Power Supply
DC12V
Operating temperature
10~40 ℃, Relative Humidity 80% or less (at 35 ℃), no water condensation
Storage temperature
-20 ℃~ 50 ℃, Relative Humidity 80% or less (at 35 ℃), no water condensation
Volume
Length X width X height: 310mmX215mmX540mm
Standard
PC management software (Haze QC)
optional
Measurement fixture, haze standard sheet, 5/10mm custom diameter plate, 40 * 10 Colorimetric dish
TH-110
haze meter
Adopting dual standard ISO & ASTM, dual-caliber (21mm/7mm) instrument does not need to be preheated, ready-to-use measurement, 1.5 seconds results meet CIE-A, CIE-C, CIE-D65 three standard lighting Light source haze and total transmittance measurement; suitable for plastic, film, Glass, LCD panel, touch screen and other transparent translucent materials haze, transmittance one-stop measurement solution.

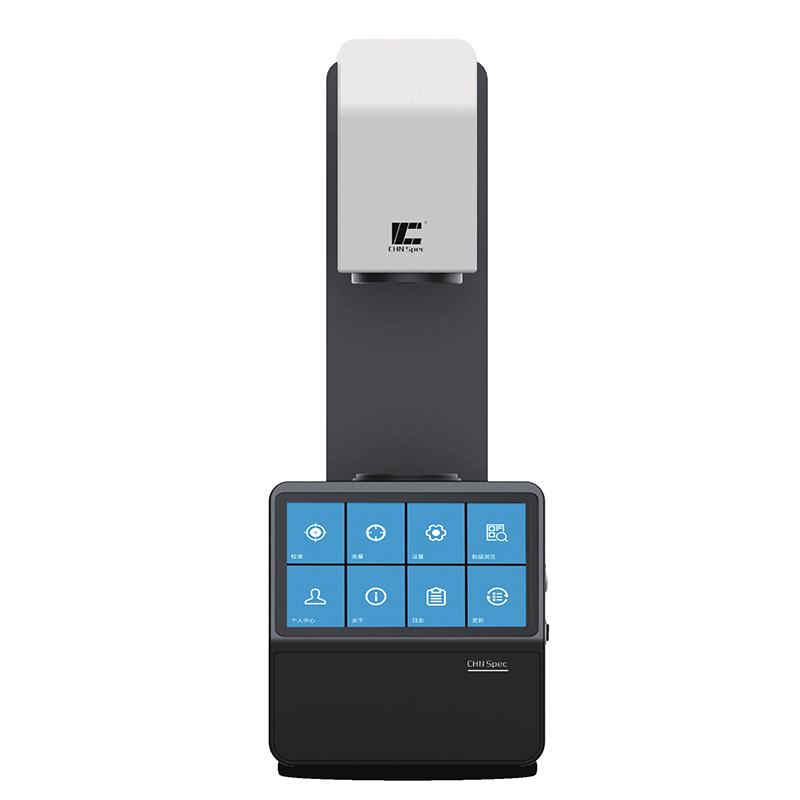

CHNSPEC TH-110 Haze meter, light transmitter vertical + horizontal Picture

Features

1. Meet the following test standards: GB/T 2410 standard, ASTM D 1003 standard, ISO 13468 standard, ISO 14782 standard

2. The instrument does not need to be warmed up, it can be measured immediately after use, and the result can be obtained in 2 seconds

3. With 21mm/7mm two measuring caliber

4. Using 7-inch capacitive touch screen, has a good human-computer interaction interface

5. Satisfy the measurement of haze and total transmittance under the three standard lighting sources of CIE-A, CIE-C, and CIE-D65

6. With the haze value self-calibration function, the instrument measurement data is consistent with the target data

7. It has two measurement states of vertical measurement and horizontal measurement, suitable for sample measurement of sheets, films, liquids, etc.

8. With an open measurement area, it can meet the measurement of samples of any size

9. Using LED light source, long life, no need to replace for ten years

10. Small size, light weight, easy to carry

FAQ
QCan this see Light spectrum Linear dispersion?
A This can be measured by the diffusion plate, at least there is haze, light transmitter, and CS700 is used to see the Light spectrum line.
QDoes the fog meter meet the specifications of GB/T2680?
A Model TH-110 Haze Meter Compliant
