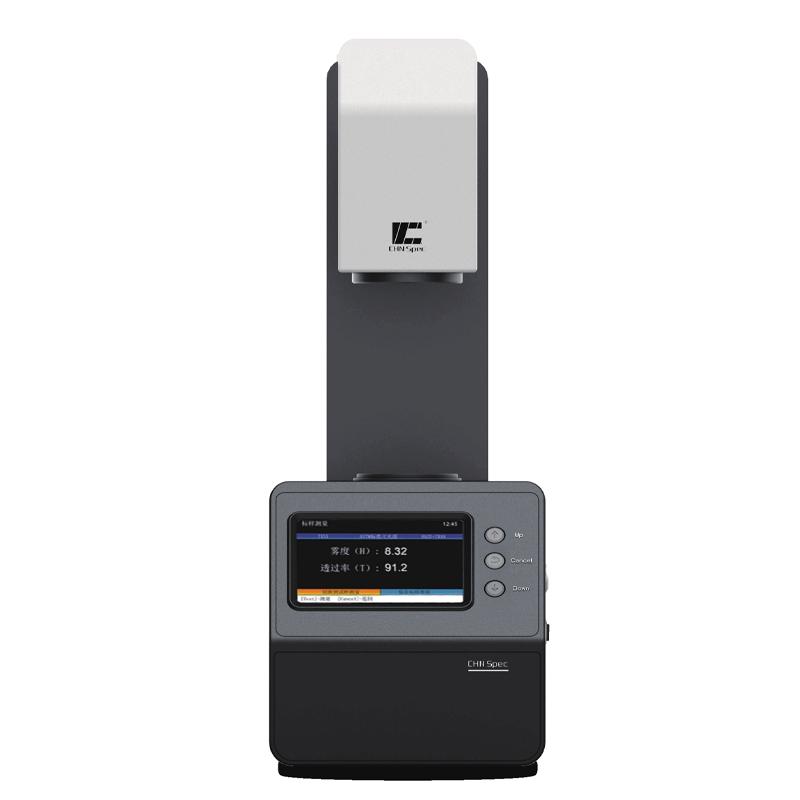

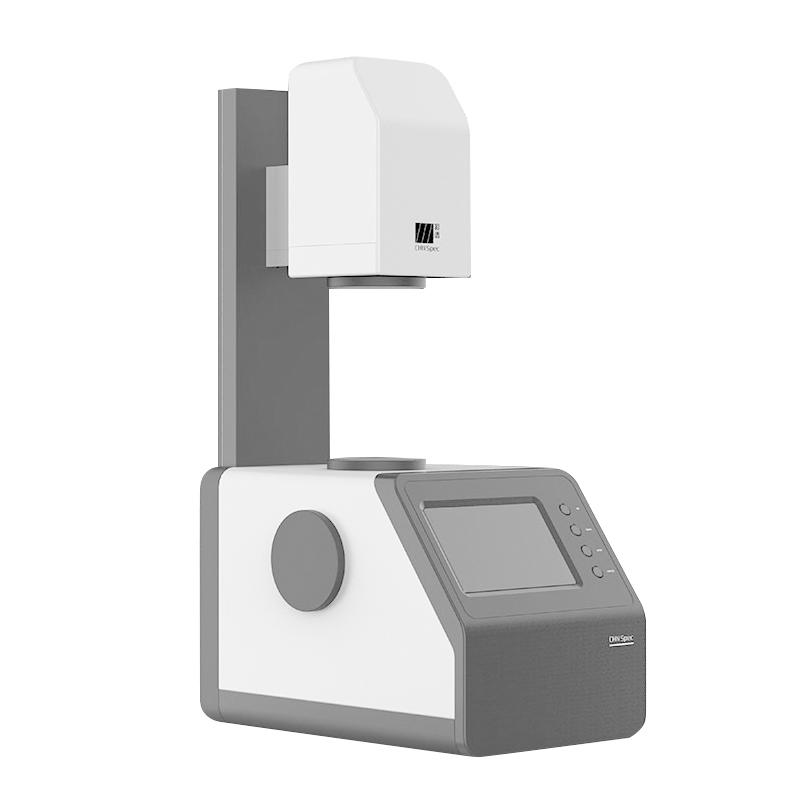

CHNSPEC TH-09 Haze meter, light transmitance measurement

Adopting ASTM standard, it is suitable for one-stop measurement solution of haze and transmittance of transparent and translucent materials such as plastic, film, Glass, LCD panel and touch screen.

$1314.00/set

PromotionLoading...

Coupon

Model：

TH-09

Certificate

CHNSpec

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

CHNSpec TH-09 haze meterSPEC

CHNSpec TH-09 haze meterDetails

CHNSpec TH-09 haze meterPacking list

SKU: NB033538

Light source: D65,A,C

Measurement parameters: ASTM standard haze (HAZE), transmittance (T)

Measurement aperture: 21mm

Screen size: 5-Inch full-color LCD screen

Haze Repeatability: φ 21mm diameter, within 0.1 (30 standard deviation differences for standard haze films with a test haze of about 40 at intervals of 5s)

Repeatability: ≤ 0.1 unit

optical path structure: Transmission: 0/D (parallel light illumination, diffuse reflection reception)

Integrating sphere size: Φ154mm

Lighting source: 400~700Nm Light spectrum LED Light source

range: 0-100%

Haze resolution: 0.01 unit

Transmittance resolution: 0.01 unit

Sample size: Open space with no size restrictions

store data: 10000 values

interface: USB port

Power Supply: DC12V

Operating temperature: +10 – 40 ℃ (+50 – 104 °F)

Storage temperature: 0 – 50 ℃ (+32 – 122 °F)

Volume: Length X width X height: 310mmX215mmX540mm

TH-09

haze meter

Adopting ASTM standard, it is suitable for one-stop measurement solution of haze and transmittance of transparent and translucent materials such as plastic, film, Glass, LCD panel and touch screen.

Features

The instrument can easily realize ASTM standard haze measurement (ASTM D1003/D1044) and light transmittance measurement. The open measurement area can be tested vertically or horizontally. It is widely used in transmittance and haze detection in glass processing, plastic processing, film, display screen processing, packaging industry and other industries.

1. Meet the test standards: GB/T 2410, ASTM D1003/D1044, with third-party verification report

2. The instrument does not need to be warmed up, it can be measured immediately after use, and the result can be obtained within 1.5 seconds

3. Satisfy the measurement of haze and total transmittance under three standard lighting sources: CIE-A, CIE-C, and CIE-D65

4. 21mm measuring aperture

5. With an open measurement area, it can meet the measurement of samples of any size

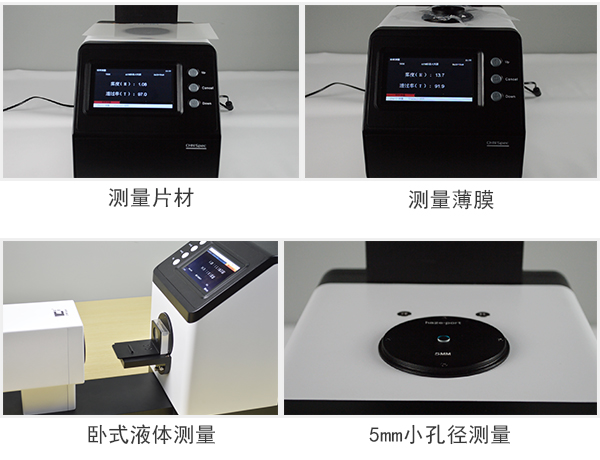

6. It has two measurement states of vertical measurement and horizontal measurement, suitable for the measurement of sheets, films, liquids and other samples

7. Using LED light source, long life, no need to replace for 10 years
