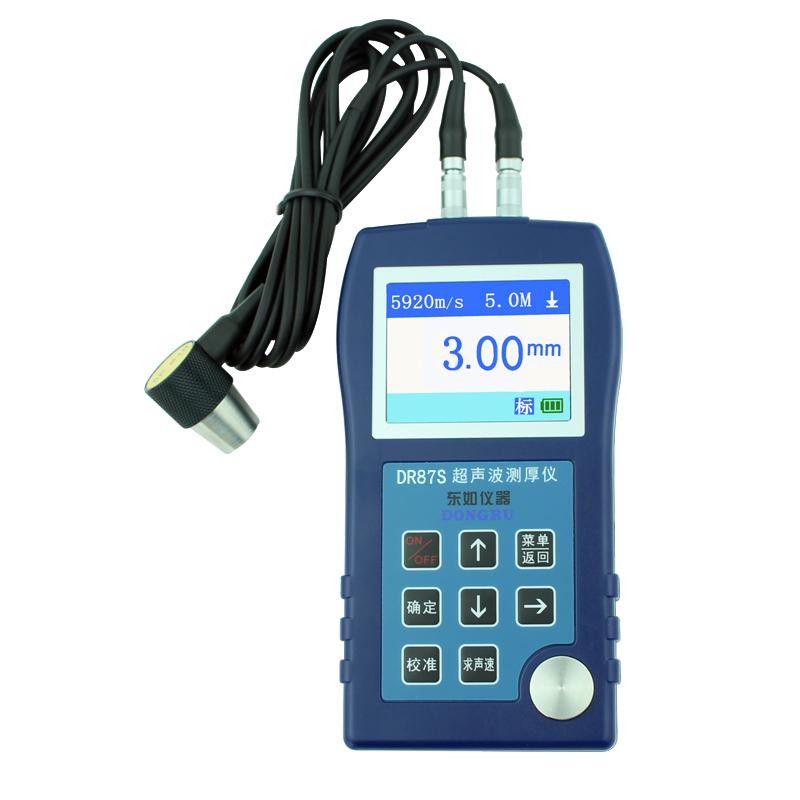

DONGRU DR87S Penetrating coating Ultrasonic Thickness Gauge

DR87S

Penetrating coating Ultrasonic Thickness Gauge

Introduction

Dongru DR87S Ultrasonic Thickness Gauge is a high-precision portable Thickness Gauge that uses ultrasonic measurement principles, high-speed processors, and highly integrated chip designs to achieve portable, non-destructive, fast, and accurate measurement of the thickness and sound velocity of various materials. Any material that can penetrate an object at a constant velocity and produce reflected waves can be used. It is suitable for the high-precision thickness measurement requirements of various materials, and can be applied to the thickness measurement of various metals (steel, stainless steel, aluminum, copper, etc.) quartz, glass, plastic and other materials. After the couplant is coated on the surface of the object to be measured, only the probe needs to be placed on the contact surface on one side of the object to be measured, and the thickness of the object to be measured can be quickly and accurately measured. The DR87S ultrasonic Thickness Gauge has two measurement modes: standard measurement and penetration coating measurement. The unique penetration mode can directly measure the thickness of the substrate without grinding the painted surface.

Features

• Almost suitable for thickness measurement of all materials, such as: metal, glass, plastic and other materials

• Paint coatings without sanding the metal surface can directly measure the thickness of the substrate

• The instrument is exquisite, small and intuitive, with a 2.3-inch large color screen display, hand-held and easy to carry, suitable for on-site testing

• Two measurement modes: standard mode/through mode

• High measurement accuracy, large measurement range, a standard probe to complete the full range.

• Chinese and English bilingual version

• Bluetooth interconnection data transmission function (applicable to Bluetooth version Thickness Gauge)

• Calibration: Probe standard block calibration, sound velocity calibration, the sound velocity can be obtained through the known thickness, and the value can be adjusted freely through the direction keys

• There are two kinds of manual shutdown and automatic shutdown, the user can choose at will;

• Built-in sound velocity of 7 commonly used materials, and can be edited, convenient for users to use;

• User-friendly data storage mode: large-capacity storage, and can store data in groups, can store 10 groups of data, each group can save 200 data, can store 2000 data, manual saving is more autonomous, and is conducive to result analysis;

• Large capacity storage, view, delete operation, convenient and simple

• Multi-probes are used together, high-temperature environment measurement can be equipped with high-temperature probes for high-temperature resistance (300°C)

Packing list：Host X1, standard probe (5P, φ 10) X1, calibration shim X1, coupler X1, battery X3 section No. 7, manual X1, certificate X1, ABS instrument bag X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
