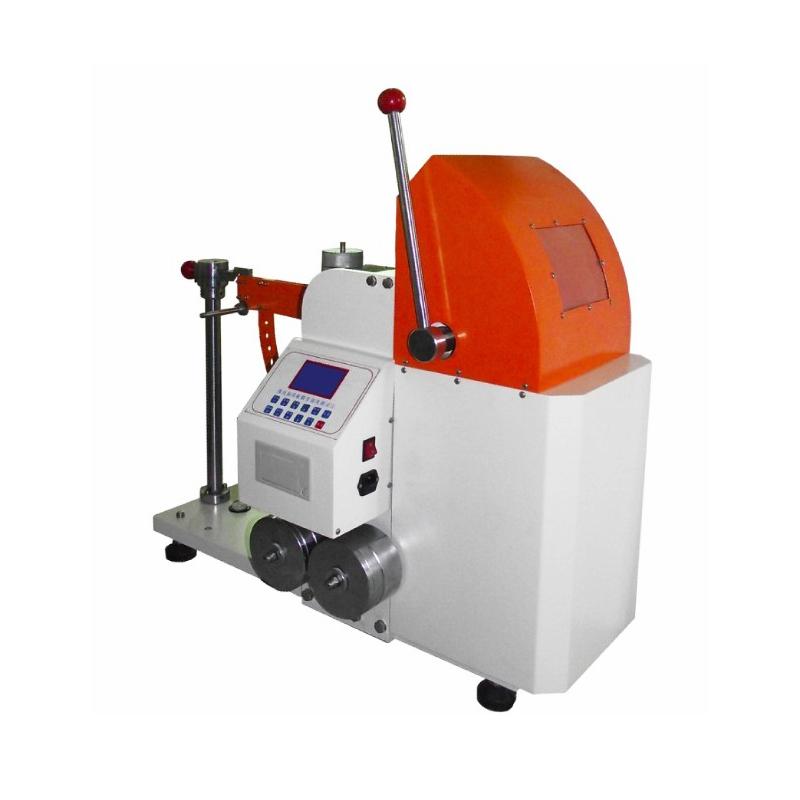

PUYUN PY-H617 Microcomputer Piercing Strength Tester 1-48J

PY-H617

Microcomputer puncture strength Tester

Using the principle of energy conversion, the piercing strength of the corrugated fibreboard is accurately measured by the international standard triangular pyramid Impact head mounted on the 90 ° bow swing arm, and it is equipped with a release device, a protection system and a self-tightening anti-loosening fixture to ensure safe and stable operation.

Introduction

PY-H617 corrugated cardboard puncture strength Tester is used to test the puncture strength of corrugated cardboard, which reflects the ability of corrugated cardboard and corrugated box to resist dynamic impact. It also reflects the ability of the packaging carton to protect the product from external force damage when it is subjected to an instantaneous external force impact. It is a tool for quality control required by carton and cardboard manufacturers, furniture industries, and fragile product manufacturers, as well as a tool required by quality supervision agencies and scientific research institutions.

This instrument is designed according to the principle of energy conversion. A triangular prismatic pyramid designed and produced according to standard geometry is installed on a pendulum of special shape. The energy consumed is the puncture strength of the sample.

Standards

ISO 3036 "Cardboard - Determination of Puncture Strength" GB/T 2679·7 "Determination of Puncture Strength of Cardboard"

 Features

1. Strong steel structure to avoid energy loss caused by vibration during the test;

2. 90-degree bow-shaped swing arm; triangular pyramid-shaped impact head (produced in accordance with international standards), made of chromium steel with molybdenum and francium CNC precision grinding and high-temperature quenching for 3 times;

3. The optimized friction resistance is 0.1J (the resistance of the friction sleeve of traditional equipment is 0.25J);

4. The release device changes the traditional hand pull structure and reduces the vibration at the beginning of release;

5. Separation mechanism with protection system, safety protection shield; self-tightening and anti-loosening clamp with adjustable pressure;

6. Using microelectronic professional measurement and control technology and computer technology, it has a high degree of automation, simple and convenient operation, safe and reliable automatic measurement, statistics, and printing of test results, and has the function of data storage;

7. Modern design concept of mechanical and electrical integration, compact structure, beautiful appearance, easy maintenance.

maintenance

1. After finishing the test, use a brush to sweep away the paper scraps between the two splints and remove the dust on the instrument.

2. The place where the instrument is placed should be dry and free from vibration, and it is not suitable to move it frequently.

3. When the instrument is not in use, place the swing arm on the positioning block and lock it with the locking block, then remove the weight and fastening screws.

4. Put the friction sleeve on the pyramid.

5. It is strictly forbidden to collide with the puncture head, and it is not allowed to do the puncture test of the metal sheet. Pay attention to whether the wear of the puncture head is damaged.

6. Check whether the fastening screws and cylindrical pins of the swing arm and pyramid are loose. If loose, tighten the screws and put the straight pin back in place.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
