Jinan HORIZON DLS-05 Electronic Tensile Tester 50N 650mm

SE
Plastic film, composite film and other materials tensile, disbonding, heat sealing, tearing and other performance test design, with touch key operation and real-time LCD display. It supports stepless speed regulation (1-500mm/min)
$2048.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Horizon DLS-05 Electronic Tensile TesterSPEC

Horizon DLS-05 Electronic Tensile TesterDetails

Horizon DLS-05 Electronic Tensile TesterPacking list

SKU
NB033908
test force
50N
stretch space
650mm
Load Measurement Range
2% of maximum load - 100%
Load measurement Accuracy
±1%
Displacement resolution
0.01mm
Displacement speed
1- (500) mm/min can be selected arbitrarily
Speed Accuracy
±1%
An indication of deformation error
≤±（50+0.15L）
Power
220V±10%V
DLS-05
Electronic Tensile Tester
Plastic film, composite film and other materials tensile, disbonding, heat sealing, tearing and other performance test design, with touch key operation and real-time LCD display. It supports stepless speed regulation (1-500mm/min)

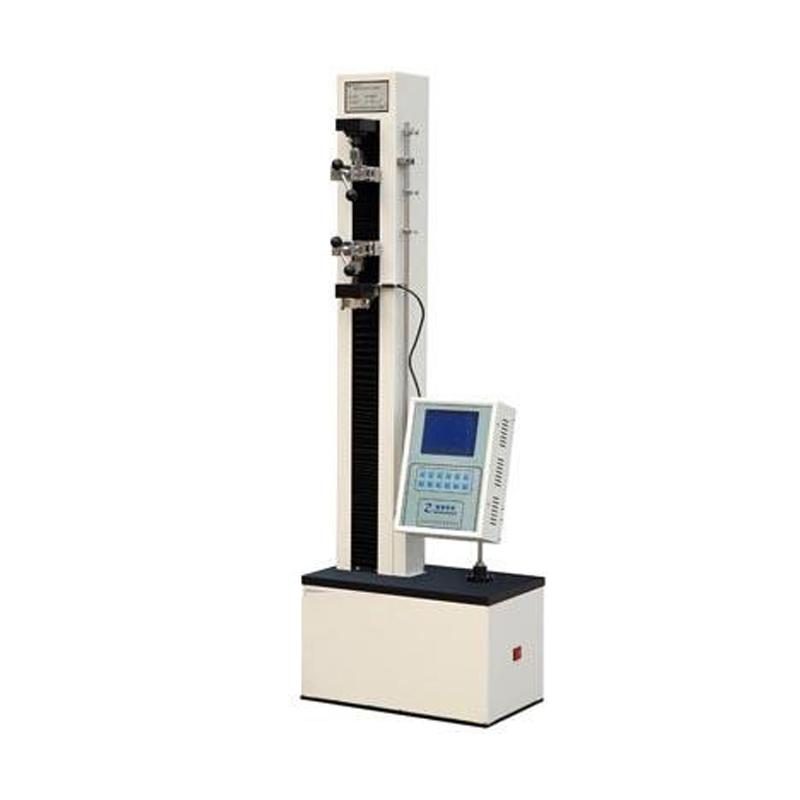

Jinan HORIZON DLS-05 Electronic Tensile Tester 50N 650mm Picture

Application

It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.

technical features

1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface

2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.

3. Can measure stretching, heat sealing, peeling, tearing and other items

4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)

5. Single-point speed regulation or stepless speed regulation (1-500mm/min)

6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.

7. Closed-loop control mode, high control precision

configuration

Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller

Optional configuration: peel test plate, standard pressure roller

Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130


FAQ
QPlastic film and composite film tensile strength test, HORIZON DLS-05 Electronic Tensile Tester suitable for?
A Suitable. DLS-05 is specially designed for testing of plastic film, composite film and other materials such as tensile and fracture elongation, which fully meets your application needs. It implements GB/T13022, GB/T8808 and other standards to ensure the accuracy and compliance of test results.
QOur laboratory needs to do various tests such as disbonding, heat sealing and tearing. Can this instrument cover it?
A Yes. DLS-05 is a multi-functional Electronic Tensile Tester. In addition to basic tensile testing, it is specially equipped with disbonding test plates and standard pressure rollers. It can directly perform disbonding, heat sealing strength, tearing and other performance tests. One machine is multi-purpose, which can effectively save your equipment investment and laboratory space.
