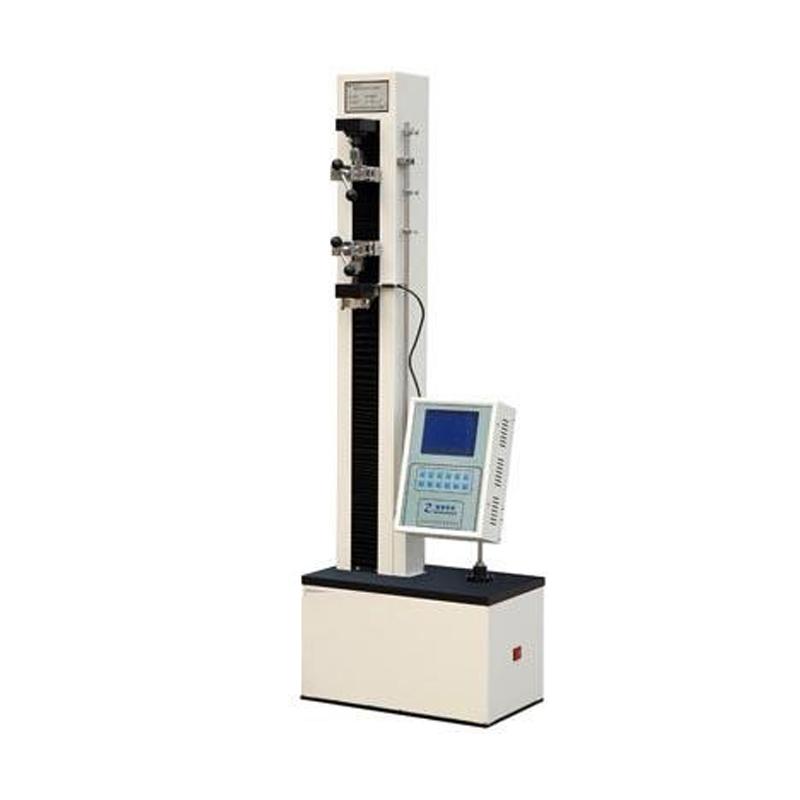

Jinan HORIZON DLS-05 Electronic Tensile Tester 30N 1000m

Plastic film, composite film and other materials for tensile, disbonding, tearing and heat sealing strength testing. With touch key operation, real-time LCD display, accurate measurement and data Linear dispersion display function, support 1-500mm/min speed regulation.

$2048.00/set

PromotionLoading...

Coupon

Model：

DLS-05

Certificate

Horizon

Contact

Details SPEC Con CAT

Horizon DLS-05 Electronic Tensile TesterSPEC

Horizon DLS-05 Electronic Tensile TesterDetails

Horizon DLS-05 Electronic Tensile TesterPacking list

SKU: NB033909

test force: 30N

stretch space: 1000m

Load Measurement Range: 2% of maximum load - 100%

Load measurement Accuracy: ±1%

Displacement resolution: 0.01mm

Displacement speed: 1- (500) mm/min can be selected arbitrarily

Speed Accuracy: ±1%

An indication of deformation error: ≤±（50+0.15L）

Power: 220V±10%V

DLS-05

Electronic Tensile Tester

Application

It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.

technical features

1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface

2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.

3. Can measure stretching, heat sealing, peeling, tearing and other items

4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)

5. Single-point speed regulation or stepless speed regulation (1-500mm/min)

6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.

7. Closed-loop control mode, high control precision

configuration

Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller

Optional configuration: peel test plate, standard pressure roller

Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130

FAQ

QI want to test the tensile strength and elongation of Plastic film, is it suitable to use HORIZON DLS-05 Electronic Tensile Tester?

A Suitable. The DLS-05 Electronic Tensile Tester is specially designed for tensile strength and elongation testing of Plastic films and composite films. It uses closed-loop control, has high Measurement accuracy (+/- 1%), can accurately capture the peak force value and elongation change of the material when it breaks, and can display the force value-displacement Linear dispersion in real time, allowing you to intuitively analyze the mechanical properties of the material.

QOur lab needs to do heat seal strength, disbonding and tearing tests of thin films. Can this instrument do it all at once?

A Yes. DLS-05 is a multi-functional testing machine. In addition to standard stretching, it can also directly test heat seal strength, disbonding and tearing items. The instrument comes standard with standard fixtures and disbonding test plates, etc. You can replace the corresponding fixtures according to specific test standards (such as GB/T 8808, QB/T 2358), and one machine can meet your testing needs for various performance of thin films, which is both professional and efficient.
