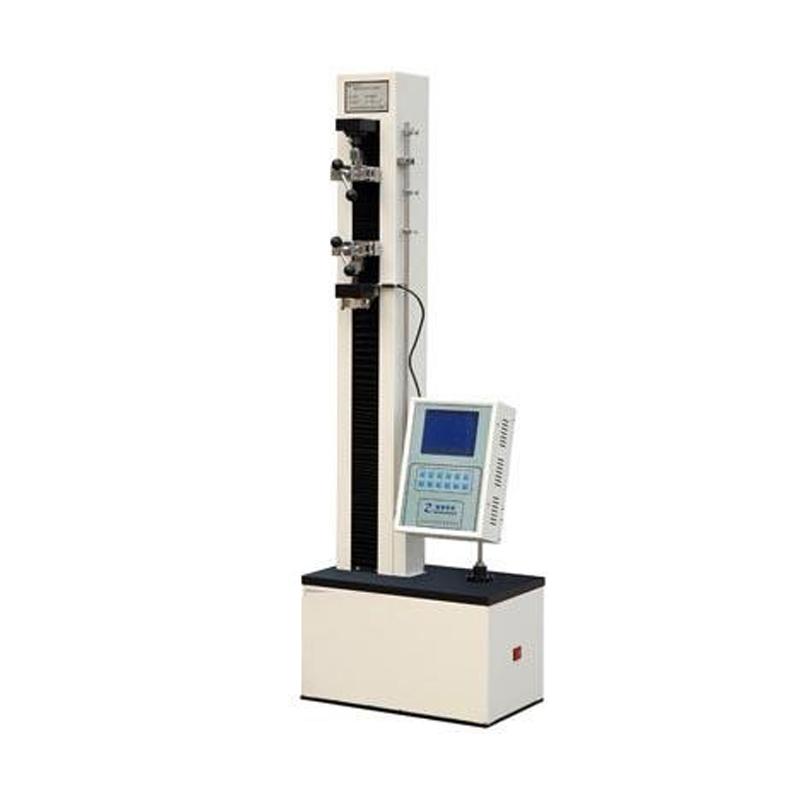

Jinan HORIZON DLS-05 Electronic Tensile Tester 50N 1000mm

Suitable for tensile, disbonding, tearing and heat sealing strength testing of Plastic film, composite film and other materials. Touch key operation, LCD real-time display, with closed-loop control, peak hold, overload protection and other functions. Support 1-500mm/min speed regulation

$2048.00/set

PromotionLoading...

Coupon

Model：

DLS-05

Certificate

Horizon

Contact

Details SPEC Con CAT

Horizon DLS-05 Electronic Tensile TesterSPEC

Horizon DLS-05 Electronic Tensile TesterDetails

Horizon DLS-05 Electronic Tensile TesterPacking list

SKU: NB033911

test force: 50N

stretch space: 1000m

Load Measurement Range: 2% of maximum load - 100%

Load measurement Accuracy: ±1%

Displacement resolution: 0.01mm

Displacement speed: 1- (500) mm/min can be selected arbitrarily

Speed Accuracy: ±1%

An indication of deformation error: ≤±（50+0.15L）

Power: 220V±10%V

DLS-05

Electronic Tensile Tester

Application

It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.

technical features

1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface

2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.

3. Can measure stretching, heat sealing, peeling, tearing and other items

4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)

5. Single-point speed regulation or stepless speed regulation (1-500mm/min)

6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.

7. Closed-loop control mode, high control precision

configuration

Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller

Optional configuration: peel test plate, standard pressure roller

Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130

FAQ

QPlastic film and composite film we mainly do tensile, disbonding test, any suitable equipment recommended?

A The HORIZON DLS-05 Electronic Tensile Tester is recommended. Designed specifically for thin film materials, it offers accurate measurement of tensile strength, elongation at break and Peel Strength, and comes with standard fixtures and disbonding plates to meet your testing needs.

QWhat tests can this instrument be used for in Quality control or R & D?

A In Quality control or R & D, DLS-05 is often used to test the tensile, heat sealing strength, disbonding and tearing of films. For example, to check whether the sealing strength of Encasement bags is up to standard, or to analyze the performance changes of New materials at different stretching rates to ensure that the product meets national standards such as GB/T 8808.

QWe need to measure the force value when stretching, and we can also see the test Linear dispersion. Is this instrument functional enough?

A Yes. DLS-05 supports constant elongation force measurement and constant force measurement elongation, and can display force value-displacement Linear dispersion in real time. Its closed-loop control accuracy is high, and the speed adjustment range is wide (1-500mm/min). Whether it is single-point testing or continuous analysis, it can accurately capture data, and the operation is also very intuitive.
