Jinan HORIZON DLS-05 Electronic Tensile Tester 300N 650mm

SE
The test force is 300 N, and the displacement rate adjustment range is 1~ 500mm/min. It is suitable for the measurement of tensile strength, fracture elongation, resilience modulus of various Plastic films and composite films, and can also perform performance tests such as disbonding, tearing, and heat sealing strength.
$2048.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Horizon DLS-05 Electronic Tensile TesterSPEC

Horizon DLS-05 Electronic Tensile TesterDetails

Horizon DLS-05 Electronic Tensile TesterPacking list

SKU
NB033917
stretch space
650mm
Load Measurement Range
2% of maximum load - 100%
Load measurement Accuracy
±1%
Displacement resolution
0.01mm
Displacement speed
1- (500) mm/min can be selected arbitrarily
Speed Accuracy
±1%
An indication of deformation error
≤±（50+0.15L）
Power
220V±10%V
DLS-05
Electronic Tensile Tester
The test force is 300 N, and the displacement rate adjustment range is 1~ 500mm/min. It is suitable for the measurement of tensile strength, fracture elongation, resilience modulus of various Plastic films and composite films, and can also perform performance tests such as disbonding, tearing, and heat sealing strength.

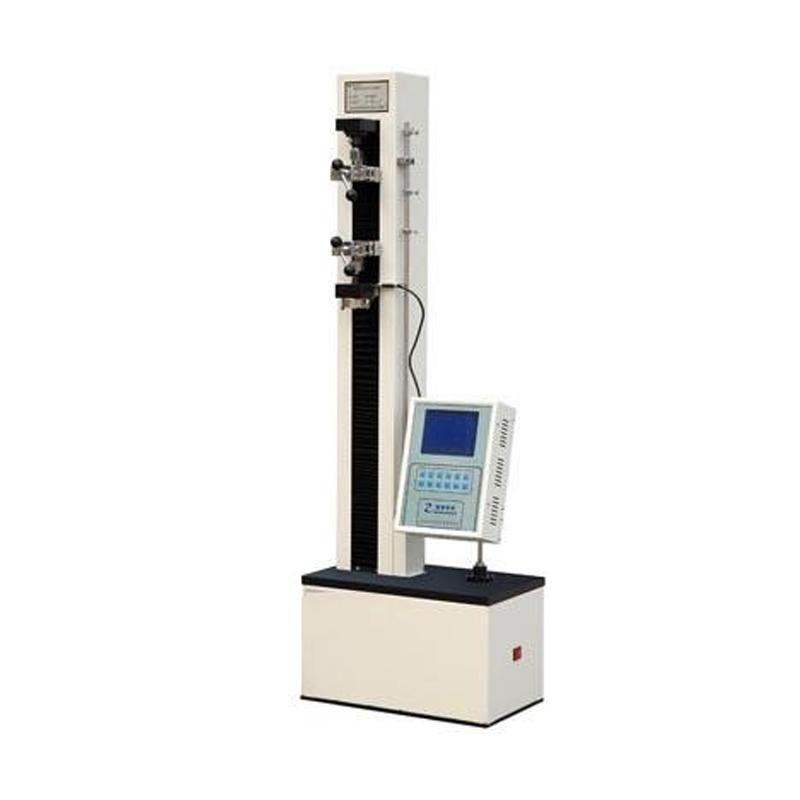

Jinan HORIZON DLS-05 Electronic Tensile Tester 300N 650mm Picture

Application

It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.

technical features

1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface

2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.

3. Can measure stretching, heat sealing, peeling, tearing and other items

4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)

5. Single-point speed regulation or stepless speed regulation (1-500mm/min)

6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.

7. Closed-loop control mode, high control precision

configuration

Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller

Optional configuration: peel test plate, standard pressure roller

Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130


FAQ
QI want to test the tensile strength and elongation of Plastic films. Is there a suitable model for HORIZON's Electronic Tensile Tester?
A HORIZON DLS-05 Electronic Tensile Tester is recommended. This machine is specially suitable for tensile strength, fracture elongation and Modulus of Elasticity testing of Plastic films, composite films and other materials. Its 300N force range and wide speed range of 1~ 500mm/min can accurately match the test requirements of film materials, ensuring accurate and reliable data.
QOur laboratory needs to do disbonding and heat sealing strength testing. Is the HORIZON DLS-05 up to the task?
A Yes. The HORIZON DLS-05 Electronic Tensile Tester supports a variety of test items such as tensile, heat sealing, disbonding, tearing, etc. It comes standard with a disbonding test plate and a standard pressure roller, which are specially used for Peel Strength testing. At the same time, its closed-loop control and High Accuracy Sensor can stably measure the heat seal strength, fully complying with relevant national standards such as GB/T 8808, and is suitable for composite performance testing in Encasement Materials Laboratory.
QWhat functions should be paid attention to when selecting a model? What are the advantages of DLS-05 in operation and control?
A When selecting a model, it is recommended to pay attention to versatility, control accuracy and ease of operation. DLS-05 is outstanding in these aspects: first, it can complete a variety of tests such as stretching, disbonding, and heat sealing with one machine, which is cost-effective; second, it adopts closed-loop control, and the force value and displacement control accuracy reach +/- 1%, resulting in good Repeatability; third, Touchscreen operation, the interface is intuitive, and it can also display Linear dispersion in real time. It supports constant elongation force measurement or constant force elongation measurement, which is flexible and convenient, which can greatly improve your testing efficiency.
