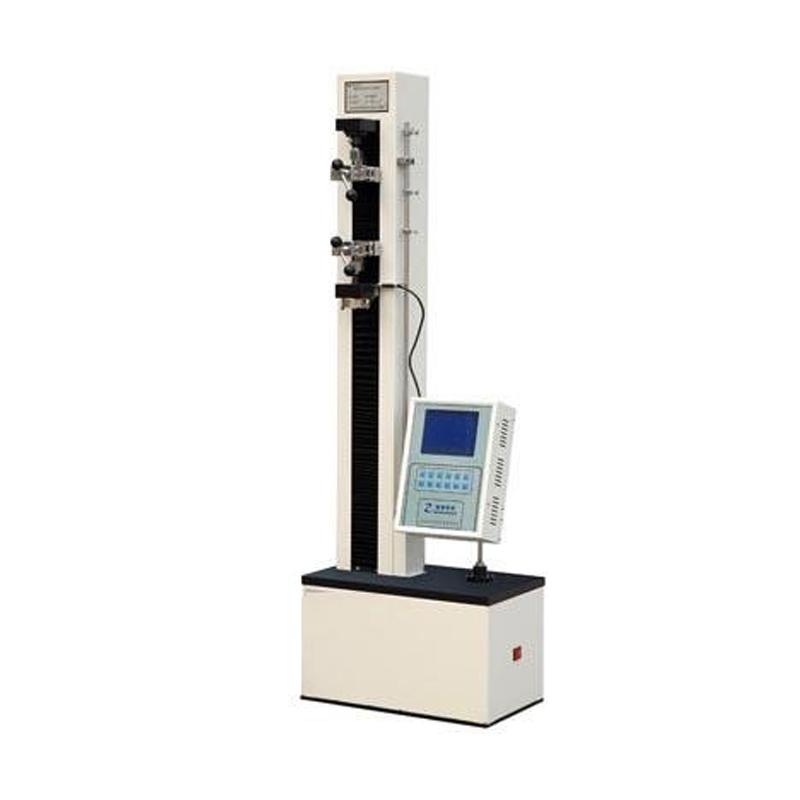

Jinan HORIZON DLS-05 Electronic Tensile Tester 300N 1000mm

The test force is 300N, the displacement rate adjustment range is 1~ 500mm/min, which is suitable for the measurement of tensile strength, fracture elongation, resilience modulus of various Plastic films and composite films, and can also be used for disbonding, tearing, heat sealing strength and other performance tests.

$2048.00/set

PromotionLoading...

Coupon

Model：

DLS-05

Certificate

Horizon

Contact

Details SPEC Con CAT

Horizon DLS-05 Electronic Tensile TesterSPEC

Horizon DLS-05 Electronic Tensile TesterDetails

Horizon DLS-05 Electronic Tensile TesterPacking list

SKU: NB033918

test force: 300N

stretch space: 1000mm

Load Measurement Range: 2% of maximum load - 100%

Load measurement Accuracy: ±1%

Displacement resolution: 0.01mm

Displacement speed: 1- (500) mm/min can be selected arbitrarily

Speed Accuracy: ±1%

An indication of deformation error: ≤±（50+0.15L）

Power: 220V±10%V

DLS-05

Electronic Tensile Tester

Application

It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.

technical features

1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface

2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.

3. Can measure stretching, heat sealing, peeling, tearing and other items

4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)

5. Single-point speed regulation or stepless speed regulation (1-500mm/min)

6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.

7. Closed-loop control mode, high control precision

configuration

Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller

Optional configuration: peel test plate, standard pressure roller

Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130

FAQ

QPlastic film tensile strength and elongation at break, which instrument should I choose?

A HORIZON DLS-05 Electronic Tensile Tester is recommended. This instrument is specially designed for tensile and fracture elongation testing of Plastic films, composite films and other materials. Its closed-loop control and High Accuracy Sensor ensure accurate and reliable test data to meet your testing needs.

QOur laboratory needs to do various tests such as disbonding and heat sealing strength. Do you have suitable equipment?

A HORIZON DLS-05 Electronic Tensile Tester is suitable. It supports a variety of test items such as stretching, heat sealing, disbonding, tearing, etc., and is multi-purpose in one machine. Equipped with standard fixtures and disbonding test plates, it is easy to operate and can effectively improve the test efficiency and coverage of the laboratory.

QWhen purchasing a UTM, what features are important to ensure Test accuracy?

A It is recommended to pay attention to the HORIZON DLS-05. It has several key functions: first, it adopts closed-loop control, which has high control accuracy; second, the universal joint design can eliminate the influence of sample irregularities on the Sensor and ensure concentricity; third, the force value and displacement Measurement accuracy reach +/- 1%, and overload protection, which can ensure your test results are stable and accurate.
