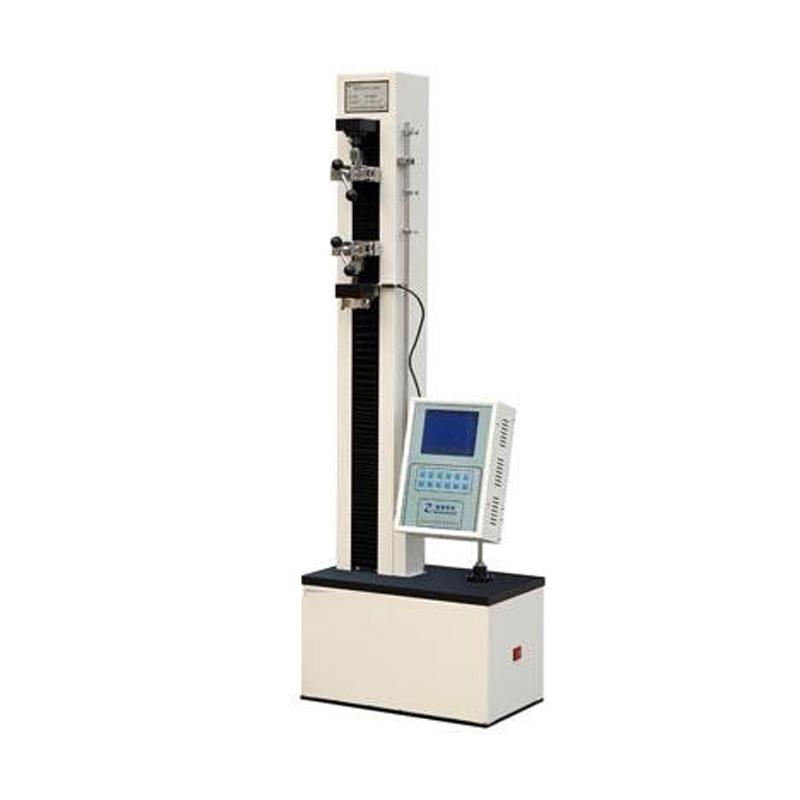

Jinan HORIZON DLS-05 Electronic Tensile Tester 500N 1000mm
SE
DLS-05
-
CHINA NBC-1021 Touch screen single column Tensile Strength Tester 50KG$ 1139.00SE -
CHINA NBC-1001B Desktop Tensile Tester Electric tensile machine$ 602.00SE -
CHINA NBC-1002 Microcomputer horizontal Tensile Strength Tester 50kg$ 1677.00SE -
Taichang TC-DLJ01C Tensile Tester stroke 600mm small display$ 1056.00SE -
CHENCHI WDL-05 Intelligent Tensile Tester Tester 500N$ 1471.00SE
Horizon DLS-05 Electronic Tensile TesterSPEC
Horizon DLS-05 Electronic Tensile TesterDetails
Horizon DLS-05 Electronic Tensile TesterPacking list
- SKU
- NB033923
- test force
- 500N
- stretch space
- 1000mm
- Load Measurement Range
- 2% of maximum load - 100%
- Load measurement Accuracy
- ±1%
- Displacement resolution
- 0.01mm
- Displacement speed
- 1- (500) mm/min can be selected arbitrarily
- Speed Accuracy
- ±1%
- An indication of deformation error
- ≤±（50+0.15L）
- Power
- 220V±10%V
Application
It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.
technical features
1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface
2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.
3. Can measure stretching, heat sealing, peeling, tearing and other items
4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)
5. Single-point speed regulation or stepless speed regulation (1-500mm/min)
6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.
7. Closed-loop control mode, high control precision
configuration
Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller
Optional configuration: peel test plate, standard pressure roller
Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130
