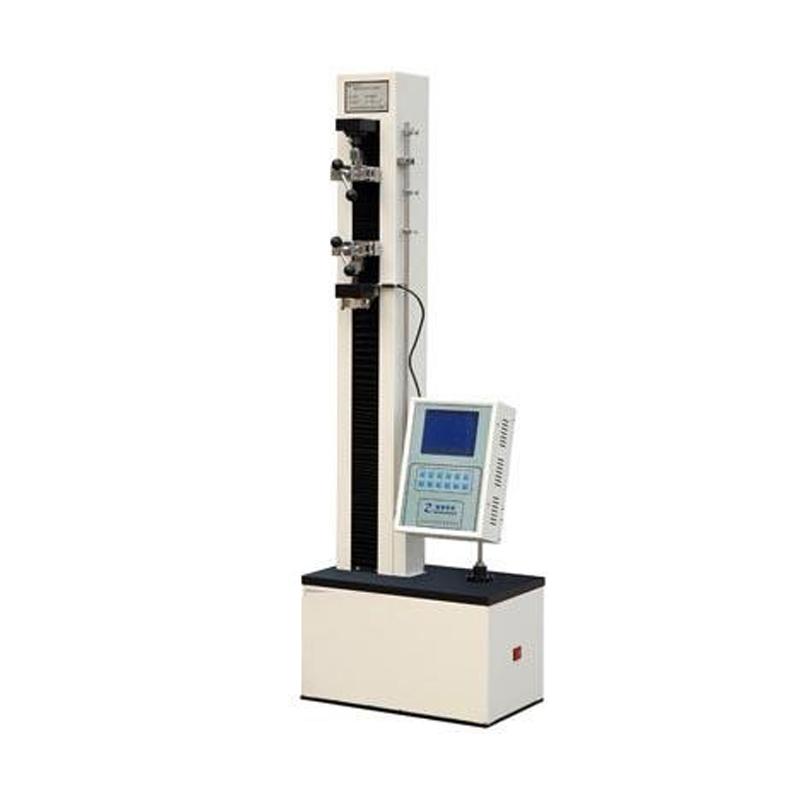

Jinan HORIZON DLS-05 Electronic Tensile Tester 1000N 650mm

Suitable for tensile, disbonding, tearing and heat sealing strength testing of Plastic film, composite film and other materials. Touch key operation, LCD real-time display, support force value and displacement Linear dispersion analysis. With closed-loop control, high-precision measurement, overload protection, peak hold function, speed range 1-500mm/min

$2048.00/set

PromotionLoading...

Coupon

Model：

DLS-05

Certificate

Horizon

Contact

Details SPEC Con CAT

Horizon DLS-05 Electronic Tensile TesterSPEC

Horizon DLS-05 Electronic Tensile TesterDetails

Horizon DLS-05 Electronic Tensile TesterPacking list

SKU: NB033924

test force: 1000N

stretch space: 650mm

Load Measurement Range: 2% of maximum load - 100%

Load measurement Accuracy: ±1%

Displacement resolution: 0.01mm

Displacement speed: 1- (500) mm/min can be selected arbitrarily

Speed Accuracy: ±1%

An indication of deformation error: ≤±（50+0.15L）

Power: 220V±10%V

DLS-05

Electronic Tensile Tester

Application

It is suitable for measuring the tensile strength, elongation at break, and modulus of elasticity of various plastic films and composite films , and can also perform performance tests such as peeling, tearing, and heat-sealing strength.

technical features

1. Touch key operation mode, LCD display real-time display. The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface

2. It can be pulled off to stop and hold the peak value, and has protection devices such as over-current, over-Voltage, and overload.

3. Can measure stretching, heat sealing, peeling, tearing and other items

4. The force value can be measured by fixed elongation, the elongation can be measured by fixed force value, and the curve can be displayed (force value, displacement)

5. Single-point speed regulation or stepless speed regulation (1-500mm/min)

6. The universal joint adopts a cross pin structure and has the function of limiting the swing angle. On the one hand, it is convenient for sample clamping and ensures the concentricity of the test. On the other hand, the influence of irregular samples on the sensor is well eliminated.

7. Closed-loop control mode, high control precision

configuration

Standard configuration: host machine, a set of standard fixtures, a micro-printer, peel test board, standard pressure roller

Optional configuration: peel test plate, standard pressure roller

Executive standard: GB/T13022, GB/T8808, GB 1040, GB/T4850, GB/T 16578, QB/T 2358, QB/T 1130

FAQ

QI want to test the tensile strength and elongation of Plastic film, is it suitable to use HORIZON DLS-05 Electronic Tensile Tester?

A Suitable. The DLS-05 Electronic Tensile Tester is specially designed for tensile strength and elongation testing of Plastic films and composite films. It uses closed-loop control, has high Measurement accuracy (+/- 1%), can accurately capture the peak force value and elongation change of the material when it breaks, and can display the force value-displacement Linear dispersion in real time, allowing you to intuitively analyze the mechanical properties of the material.

QOur laboratory needs to do a variety of tests for disbonding, heat sealing and tearing. Can this instrument meet the requirements?

A Yes. The HORIZON DLS-05 is a multifunctional testing machine. In addition to stretching, its standard and optional fixtures (such as disbonding test plates, standard pressure rollers) can be directly used for disbonding, heat sealing strength and tear performance testing. Its control program supports these test modes, and you only need to replace the corresponding fixtures to complete the evaluation of multiple material performance on a single device, which is efficient and convenient.
