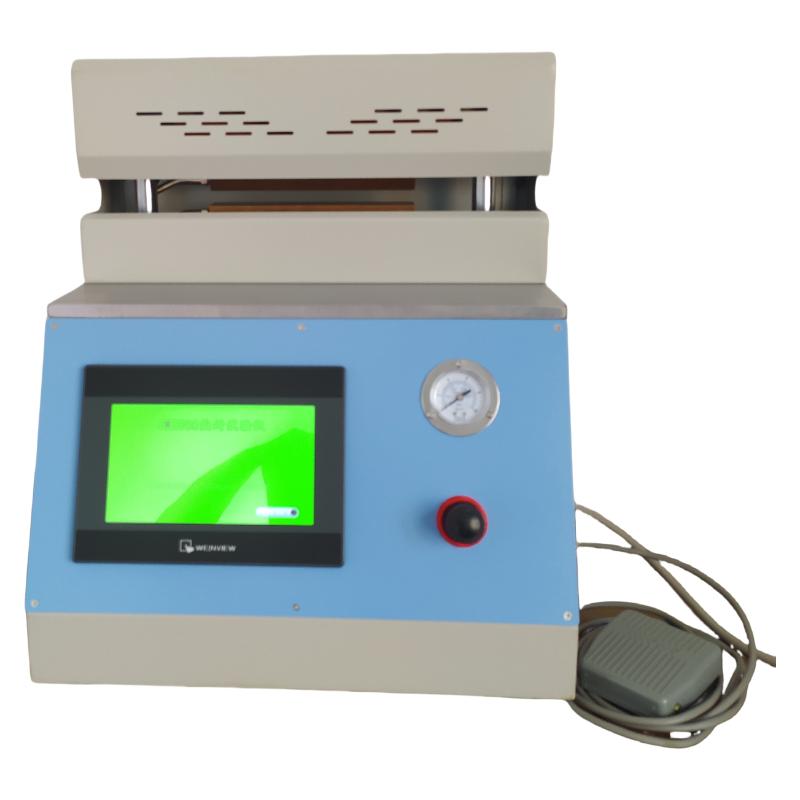

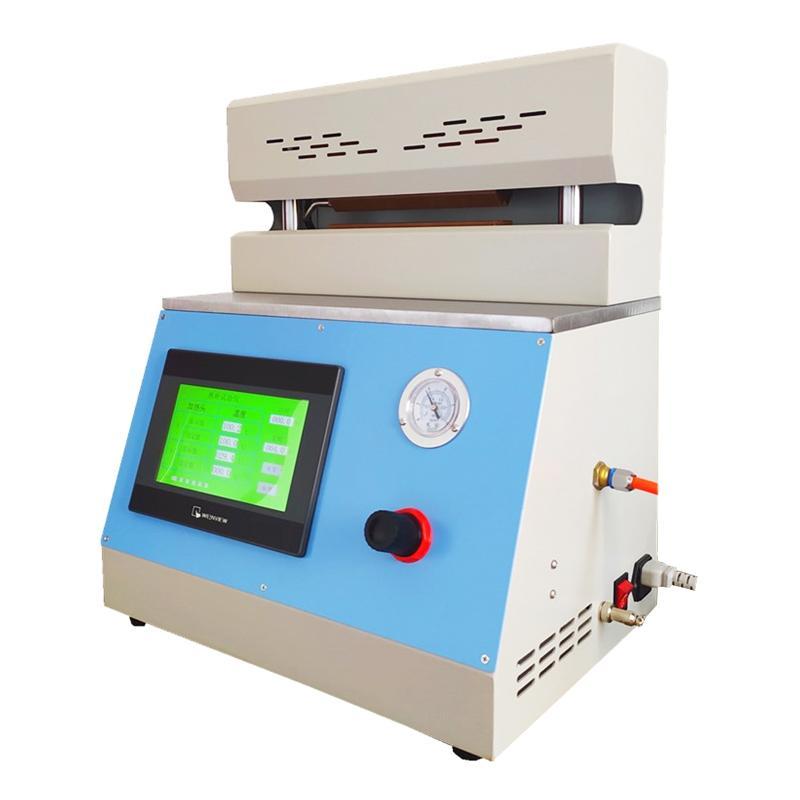

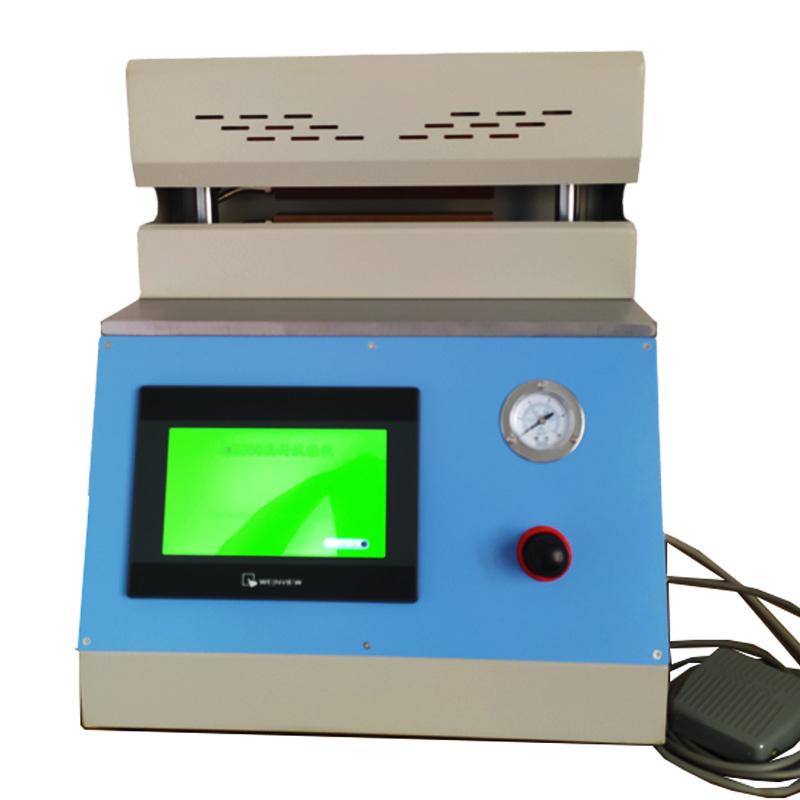

JINGWEN JW200CP film heat sealing Tester, touch screen 230 ℃

JW200CP

Thin film heat sealing Tester

Heat sealing temperature RT +~ 230 ℃, temperature control accuracy +/- 0.2 ℃, Display resolution 0.1 ℃, heat sealing knife material aluminum alloy, heat insulation layer temperature resistance within 250 ℃ (double-decked insulation)

product description

JW200C film heat sealing Tester is used to test the heat sealing performance of packaging bags. It uses the hot pressure sealing method to measure the heat sealing temperature, heat sealing time, Heat sealing pressure and other parameters. Heat sealing materials with different melting points, thermal stability, fluidity and thickness will show different heat sealing properties, and their sealing process parameters may vary greatly. The JW200C heat sealing Tester, through its standardized design and standardized operation , accurate heat sealing test indicators can be obtained, thereby guiding large-scale industrial production.

Features

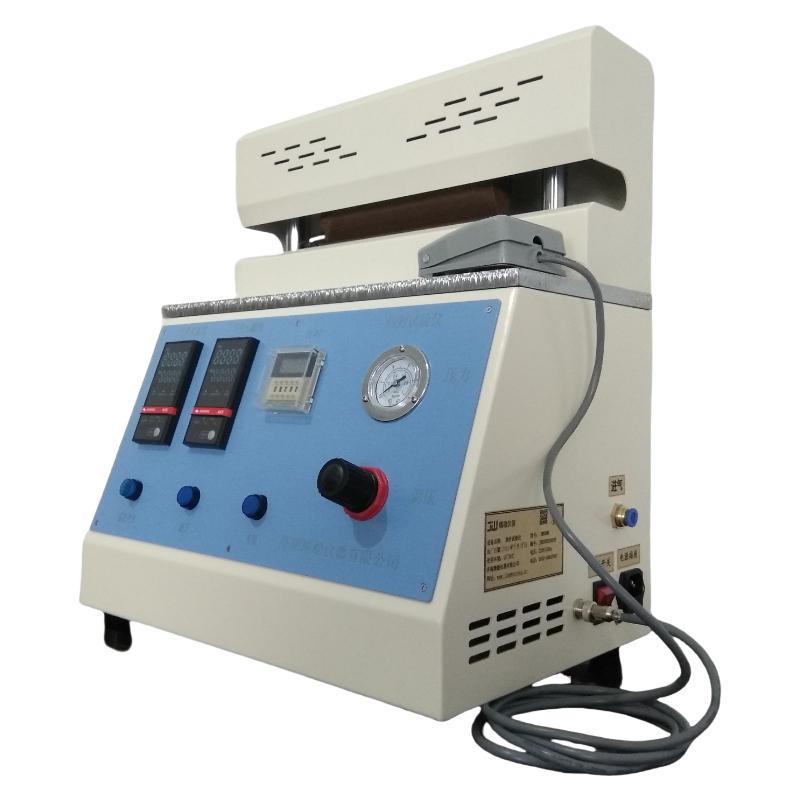

JW200C heat sealing Tester adopts PLC controller, Taiwan, CHINA Pingtong touch screen display control, menu interface, Huibang PID. temperature controller, solid state relay and other brand-name electrical components. Bottom-mounted cylinder synchronization circuit, two test start modes of manual and foot pedal, independent temperature control of the upper and lower heat sealing heads, the heat sealing head is made of brass, and has good thermal conductivity. There is a protective cover outside the heating head, which is a safety design to prevent burns. Double-layer heat insulation design, the heat insulation board is made of special materials, which has good heat insulation effect, high temperature resistance, no odor and insulation resistance, which can effectively ensure the convenience and safety of users.

Applications

JW200C heat sealing Tester is suitable for heat sealing performance testing of aluminum foil packaging bags and heat sealing testing of various plastic films, plastic composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil, aluminum foil composite films and other film materials. , the heat sealing cover is a smooth plane, the heat sealing width can be designed according to the user's needs, and various plastic hose sealing experiments can also be carried out.

technical standard

The JW200C heat sealing Tester adopts the hot pressure sealing method. The sample to be sealed is placed between the upper and lower heat sealing heads, and the sample is sealed under the preset temperature, pressure, and time. This instrument meets a variety of requirements. National and international standards: QB/T 2358, ASTM F2029, YBB 00122003.

Operational use

The operation method of the heat sealer is as follows:

1. Connect the compressed air pipe to the compressed air inlet on the right side of the instrument;

2. Connect the foot switch to the connection point at the back of the instrument;

3. Connect the power cord socket to the power inlet at the back of the instrument;

4. Prepare experimental materials;

5. Pour in the compressed air and use the pressure adjustment handle to adjust the pressure to a pressure value that can press the upper and lower heat sealing knives together, usually 0.18MPa-0.3MPa;

6. Turn the power switch to ON;

7. Set the heat sealing temperature and heat sealing time of the test sample that needs to be heat sealed.

8. Place the sample between the upper and lower heat sealing knives, press the clamping button or step down the foot switch. The heat sealing knives will automatically separate after the set time. Remove the specimen. (Note: Do not put your hands into the heated knife when operating this step.)

Packing list：Host X1, foot switch X1, power cord X1, fuse X3, manual X1, quality assurance card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
