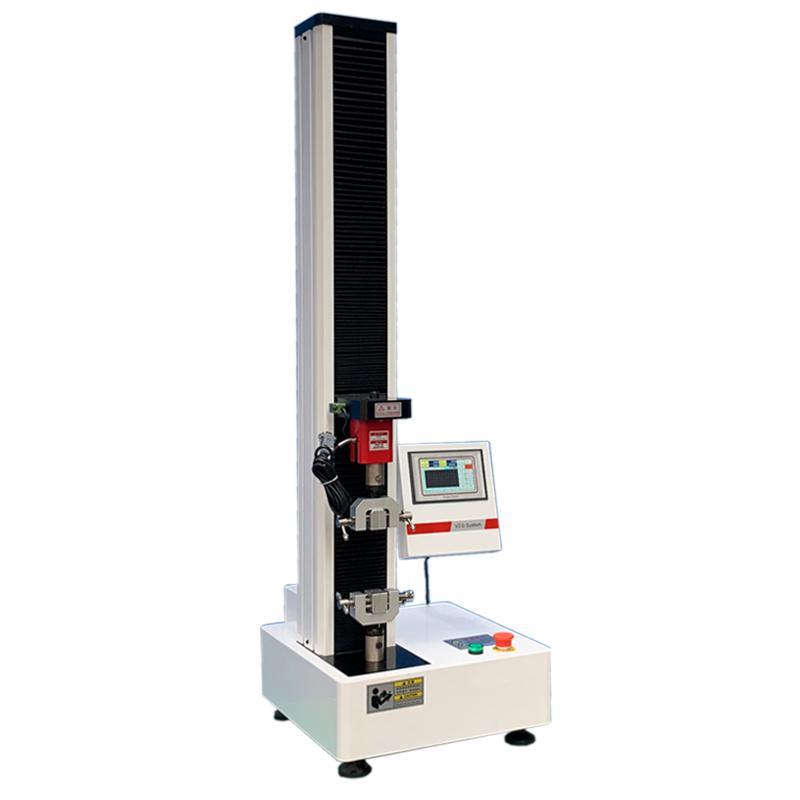

JINGWEN JW103C-01 paper Tensile Strength Tester 100N 400mm
SE
JW103C-01
jingwen JW103C-01 Paper Tensile Strength TesterSPEC
jingwen JW103C-01 Paper Tensile Strength TesterDetails
jingwen JW103C-01 Paper Tensile Strength TesterPacking list
- SKU
- NB033981
- Force range
- 100N
- Force range
- 2~100%FS
- Force resolution
- 0.01N
- Force value Accuracy
- ±1%
- stretching speed
- 0.05~500mm/min
- beam displacement
- 0.001mm
- stretch space
- 400mm
- Complete-built unit Power
- Single phase, 220V +/- 10%, 50Hz
- Operating Environment
- Room temperature -35 ℃, Relative Humidity does not exceed 80%
- Host size
- 530*380*1450mm
- Weight
- 160Kg
- Communication interface
- WAN port with computer software (optional)
Introduction
It is suitable for the test of paper strength, plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber, etc. The instrument integrates tensile, peeling, tearing, Professional and independent test procedures such as heat sealing, constant elongation, tensile, compression, and ring tack provide users with a variety of test items.
product features
1. Using ball screw drive, more stable and accurate.
2. Advanced stepping motor is adopted, with low noise and precise control.
3. Large-screen touch screen display, Chinese menu, real-time display of test force, speed, displacement and curves: force-time, force-deformation, force-displacement, etc.
4. Built-in micro-printer, print data and test results: tensile strength, elongation.
5. Visual display of test results: After a set of tests is completed, display the measurement results and print statistical reports, including average , maximum, and minimum values.
6. Microcomputer data processing and control, automatic reset, data memory, overload protection, etc.
7. AC speed regulation, automatic shutdown if the sample is damaged, and photoelectric safety limit.
8. The test force is not divided into gears throughout the process, and it can be switched automatically.
9. Adding accessories can complete compression, bending, shearing, tearing strength, etc.
Test Principle
The sample is clamped between the two clamps of the fixture, and the two clamps move relative to each other. The force value change and displacement during the test are collected through the force sensor on the movable clamp and the displacement sensor built in the machine. Changes, so as to calculate the tensile, tearing, deformation rate and other performance indicators of the sample.
Some application examples
GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130
product configuration
Standard configuration: host, silent thermal printer, universal fixture, professional software
Optional: Pneumatic fixture, standard pressure roller, test plate, sampling knife
