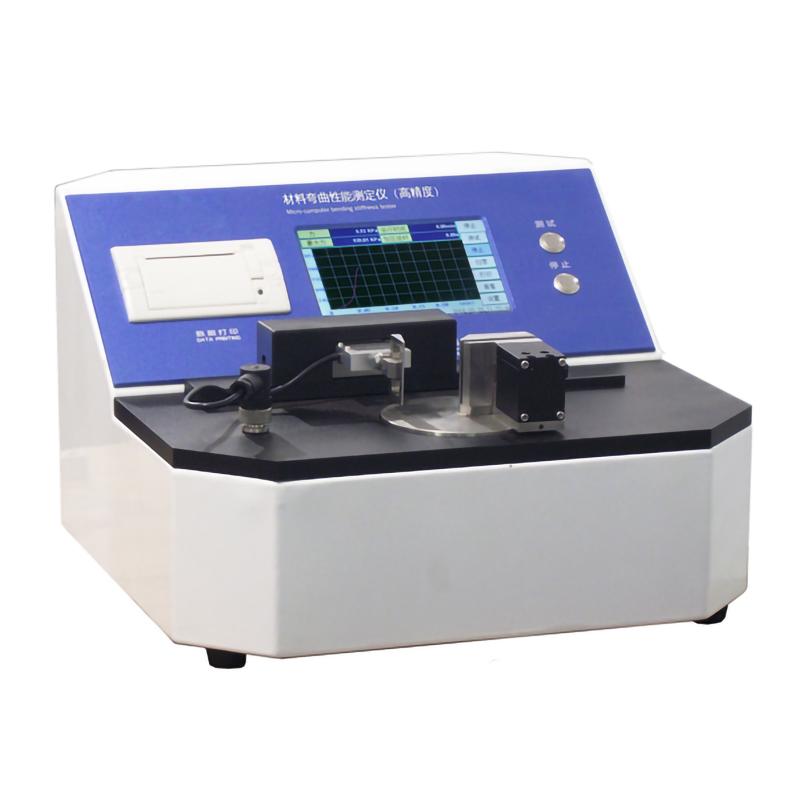

YINUO YN-TDY01 Microcomputer crease stiffness Tester

YN-TDY01

Microcomputer crease stiffness Tester

Instrument Usage

YN-TDY02 microcomputer Bending Stiffness Tester is mainly used to measure the stiffness test of cardboard and the indentation force of small packaging boxes (that is, the rebound force of 90-degree creases), and can set the longitudinal and transverse direction, bending angle, test speed and bending angle of the sample according to the test requirements. It is mainly used to measure the stiffness of various types of paper, cardboard, film, plastic, metal sheet, fiber composite sheet and other products, and is suitable for the papermaking, packaging and printing industry and related scientific research institutions and quality inspection departments.

Operating Principle

How the flexural stiffness Tester works: Measure the force or moment required when the clamped specimen at one end is bent to a 15-degree angle.

How the crease stiffness meter works: By measuring the force or distance required for the clamped specimen at one end to bend to 90 degrees.

Enforce the standard

GB/T 22364 、GB/T 2679·3 、ISO 2493、ISO 5628

Technical characteristics

1. 7in touch screen with curve display, free switching between Chinese and English;

2. The test angle can be adjusted: (1~92) degrees can be set arbitrarily;

3. The test time can be set by any number between (2~50)s;

4. It has the function of automatic zeroing, and there is no need to manually rely on the sample before the test;

5. After the test is completed, the high speed returns to the starting position, and the return speed can be set arbitrarily between (1~12);

6. The change of test angle is fully controlled by the motor, which improves the measurement efficiency and reduces the influence of human beings;

7. The test is automatically reset, and the force value and angle value are automatically cleared to zero during the test, so as to improve the accuracy of the test results;

8. It has the functions of measurement statistics, printing and so on, which is convenient for users to carry out test operations and data viewing;

Product configuration

Scope of application

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
