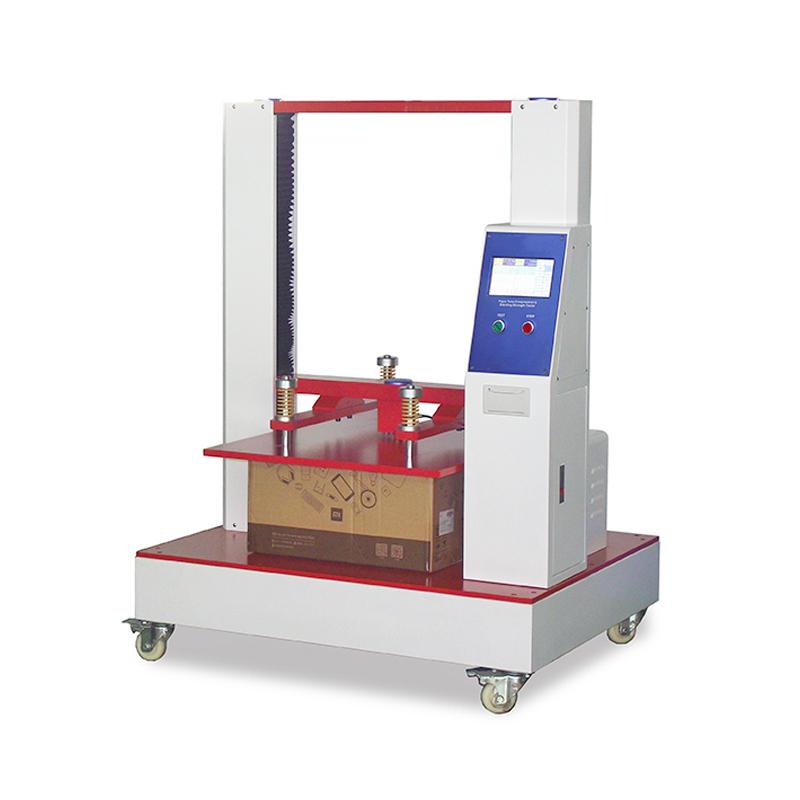

YINUO YN-KY400 Microcomputer Compressive Tester 0.4 * 0.6 * 0.6m

YN-KY400

Microcomputer compressire strength Tester

Used for the test of compressive strength of carton Encasement parts, force value range 0~30000N, measurement size (600 * 400 * 600) mm, test function Compressire strength measurement, stacking strength measurement, fixed value strength measurement, compression displacement measurement

Instrument use

YN-KY microcomputer compressive strength Tester is specially used for testing the compressive strength of carton packages. The equipment specifications should be selected according to the size of the carton. The carton and the pressure plate must be accurately parallel during the test to ensure the stability of the test results. and repeatability. This compression Tester conforms to the international testing method for the compressive strength of packaging and transportation parts. It is suitable for the compression test, constant pressure test, stacking test, compression displacement test and deformation test of high-strength packages such as corrugated boxes and honeycomb boxes. It can also be used for Compression test of plastic barrels and other material containers.

test function

Fixed value test: In the case of the compression test, a predetermined pressure is added to determine the holding pressure test of the box;

Compression test: In the case of compression test, pressurize until the sample is damaged, which is used to determine the ultimate compression resistance of the box;

Stacking test: In the case of stacking test, a predetermined load is applied until the sample is damaged or lasts for a predetermined time;

Compression displacement test: In the case of compression test, add predetermined pressure or displacement to detect the deformation result of the carton after compression;

Executive standard

GB/T 4857.4, GB/T 4857.3, ISO 12408, ISO 2234, QB/T 1048, ASTM D642, ASTM D4169 TAPPI T804

technical features

7in touch screen Chinese and English dual language system, real-time display of anti-stress information, the data is more intuitive;

The force and time can be set directly, and after the test is completed, it will automatically reset and automatically record the compression results and deformation of the carton;

Open structure design, double ball screw, double guide column, good parallelism, good stability, strong rigidity and long service life;

Limit travel protection, overload protection, and other intelligent configurations to ensure the user's safe operation,

The built-in power protection device can protect the equipment from being damaged due to excessive magnetic field or instability of the power supply.

The instrument is equipped with a high-speed micro-printer, and the printed content includes: test time, test number, maximum crushing force, compression displacement and other data;

It can be equipped with computer-specific analysis software for detailed analysis of curves, with a dedicated programmable file management analysis report, A4 printing (optional);

product configuration

Application

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
