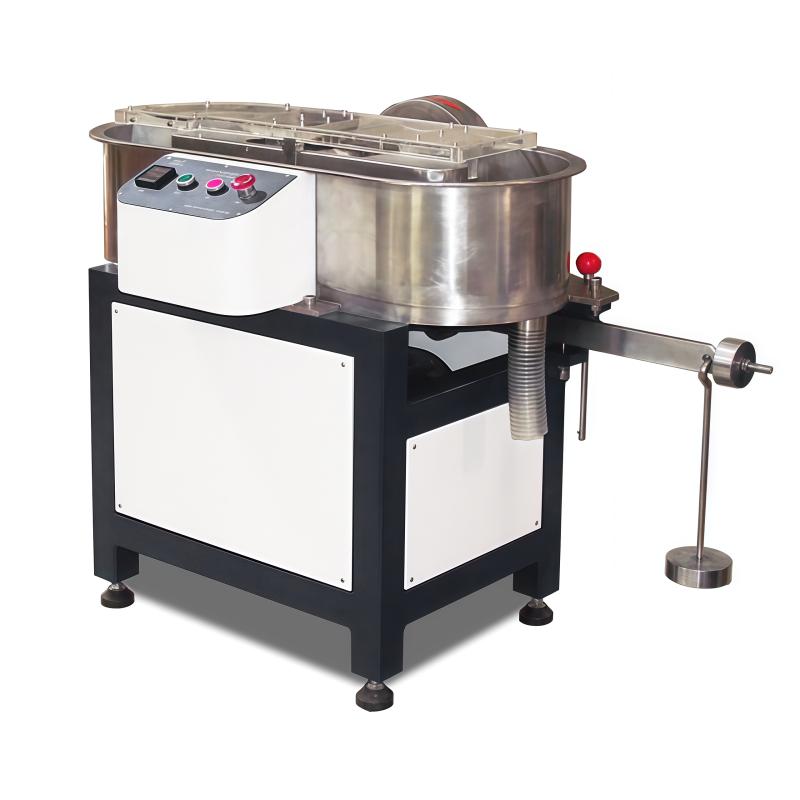

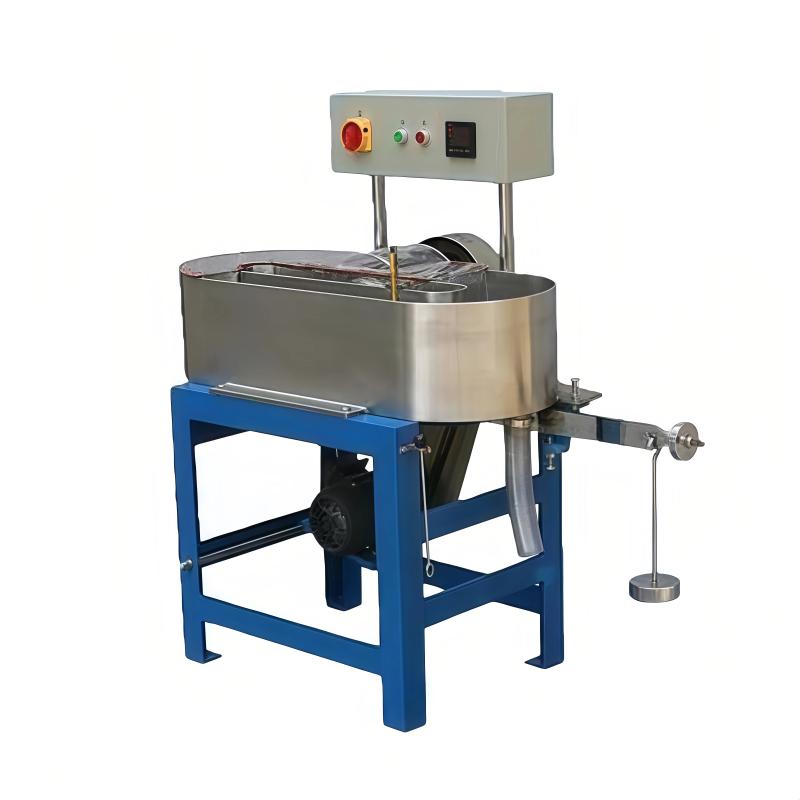

YINUO YN-VL01 Valley Freeness Tester Valley Freeness Tester, fixed frequency/variable frequency optional
SE
YN-VL01
YiNuo YN-VL01 Valley Freeness TesterSPEC
YiNuo YN-VL01 Valley Freeness TesterDetails
YiNuo YN-VL01 Valley Freeness TesterPacking list
- SKU
- NB034028
- Standard slurry Capacity
- 23L
- Slurry tank Volume
- 47 liters
- Pulp Pool Warning
- With Pulp Tank water level warning, minimum moisture warning 2L
- Slurry amount
- 200G~ 700g absolute dry pulp (standard beating amount: 360g absolute dry pulp, concentration: 1.57%) ideal pulp into the pool size: less than 25 * 25mm
- Knife roller size
- Ø194MM×155MM
- Knife roller speed
- Beating speed (200~900 +/- 10) r/min adjustable
- Flying blade
- Film thickness 4.7mm, 32 pieces
- Bottom blade
- Film thickness 3.2mm, 7 pieces
- Lever arm load
- 54±1N
- Slurry diversion tank
- The plate inner concave slurry diversion structure (both domestically and externally convex) improves the slurry diversion effect.
- Slurry cover
- Short distance 145 degree transparent composite cover, easy to observe the beating fluid in real time, easy to clean the slurry tank and blade cleaning (domestic is 180 degrees inconvenient for manual cleaning).
- Noise muffler
- The slurry outlet is equipped with a noise silencer to reduce the noise during beating.
- Dimensions
- 1240*650*1180mm
- Power
- 750W/380V
- Net Weight
- 200Kg; Gross Weight 280Kg
use
The 23-liter Valley Freeness Tester (Valley Freeness Tester) is the international standard equipment in the papermaking laboratory, and it is the required equipment for the research of pulping and papermaking technology. The material is cut, crushed, kneaded, split, moistened and fiber thinned, and at the same time, the displacement and deformation of the cell wall of the fiber, the rupture of the primary wall and the outer layer of the primary wall. According to the pressure on the bottom knife and the beating time, the changes of pulp with different beating degrees can be obtained. The Wali Freeness Tester is widely used in the beating tests of various plant fibers, synthetic fibers, carbon fibers, and glass fibers. It is an indispensable papermaking experimental equipment for quality control, process formulation, teaching and scientific research experiments.
The machine meets the standard requirements of ISO 5264/I, TAPPI-T200 and GB7980-87 Pulps-laboratory beating-Valley Freeness Tester method. This model can change the heavy thallium pressure, beating time, and automatically control the beating time, so as to obtain different experimental results.
Standards
QB/T 3702, ISO 5264/I, TAPPI-T200
