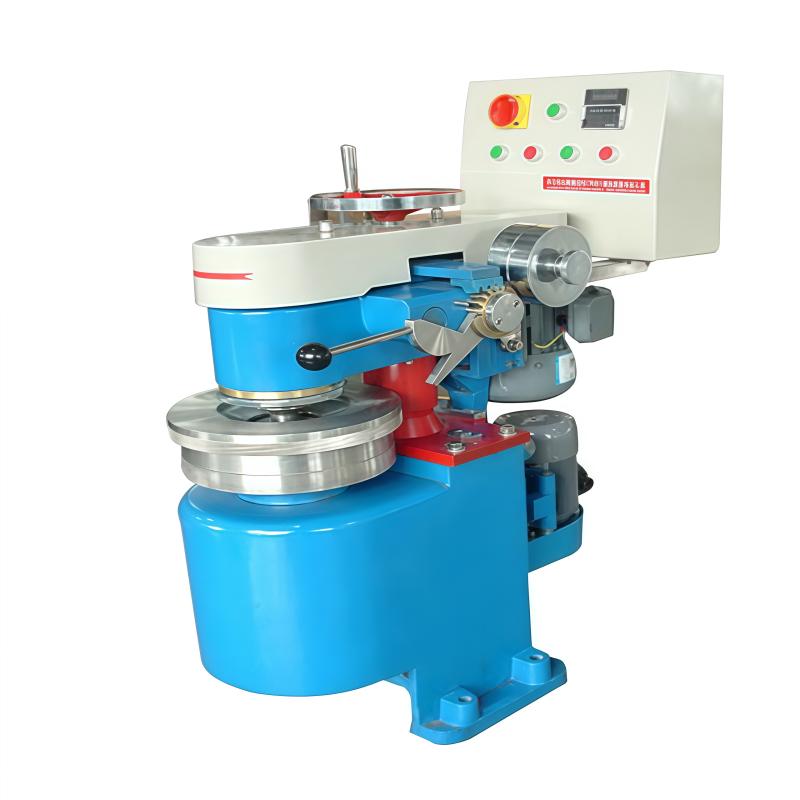

PFI pulp buckling degree ZY-PFI vertical refiner

High-efficiency experimental equipment specially designed for pulp and paper experiments. Widely used in the determination of pulp dissociation, moisture, concentration and wet dissociation, providing standards for pulp samples. Compliant with ISO 5264/2

$7999.00/set

PromotionLoading...

Coupon

Model：

ZY-PFI

Manufacturer authorization

Contact

Details SPEC Con

zy ZY-PFI Vertical refinerSPEC

zy ZY-PFI Vertical refinerDetails

zy ZY-PFI Vertical refinerPacking list

SKU: NB034044

pulp pool: Inner diameter φ 250mm, depth 53mm, speed 600r/m

Flying knife rotor: Outer diameter φ 200mm Height 50mm Knife thickness 5mm

Flying knife rotor motor: 1.1kW/380v；1400r/m

Buckle clearance adjustment distance: 0~25mm

slurry pool motor: 370W/380v； 1400n/m

Counter display control range: 0-999999 rpm

Linear Speed Difference between Knife Roller and Pulp Pool: （6.0±0.2）m/s

Deducting pulp concentration: 5~ 20%; Absolute dry pulp 5~ 30g

Beating Pressure: (3.33 +/- 0.1) N/mm blade length; (1.77 +/- 0.1) N/mm blade length; (4.89 +/- 0.1)/mm blade length

Dimensions: 860*450*1100mm

net Weight: 251Kg

ZY-PFI

Vertical refiner

Introduction

PFI refiner (also known as debonding machine or vertical beating machine) is used in pulping and papermaking experiments for the determination of the degree of decoupling of pulp, the determination of the moisture content of pulp samples, the determination of pulp concentration, and the wet dissociation. Determination of degree, provide standard samples, PFI type refiner conforms to the experimental standards stipulated in ISO 5264/2-1979 "Pulp LABOratory Pulping - Part 1: PFI Grinding Method".

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
