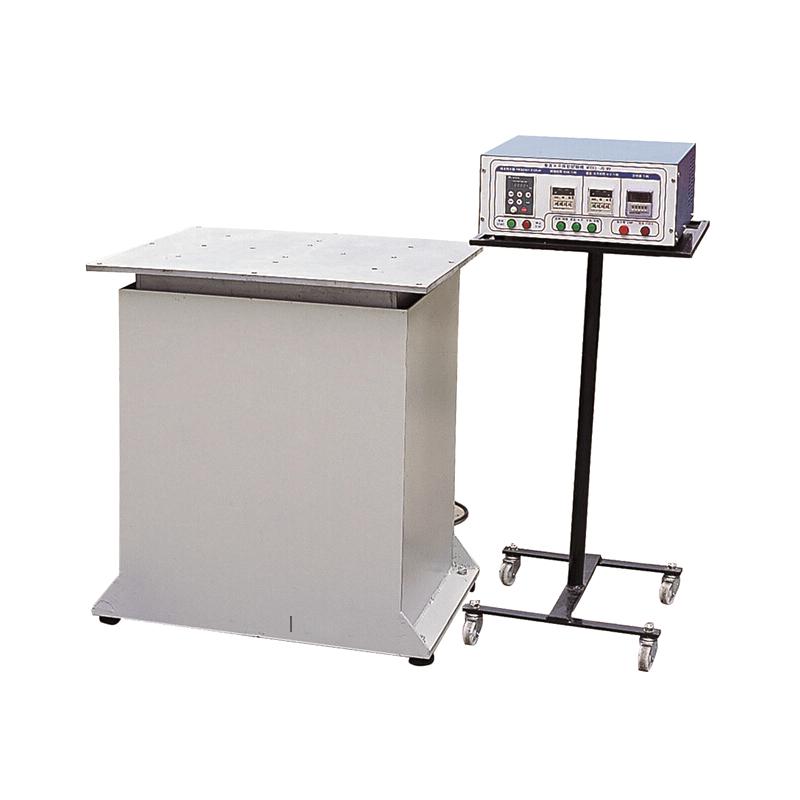

CHINA ZY-ZD-B Vertical Horizontal Vibration Tester

ZY-ZD-B vertical horizontal vibration Tester is to detect whether the product Encasement design meets the transportation conditions, ZY-ZD-B vertical horizontal vibration Tester amplitude 10mm, maximum load 100kg, Acceleration 0~20g.
Model：
Contact
Details SPEC

zy ZY-ZD-B Vertical horizontal vibration TesterSPEC

zy ZY-ZD-B Vertical horizontal vibration TesterDetails

zy ZY-ZD-B Vertical horizontal vibration TesterPacking list

SKU
NB034085
Table size (mm)
450 × 450, 500 × 500, 800 * 800, 1000 * 1000mm or other
Amplitude
10mm
Maximum test Weight
100kg
Acceleration
0~20g
vibration waveform
Sine wave (half wave, full wave)
Sweep function (1~ 5000Hz)
(Upper Frequency/Lower Frequency/Timer Range) You can arbitrarily set the true standard back and forth frequency sweep.
Programmable function (1~ 5000Hz)
1 to 15 segments, the time and Frequency of each segment can be set arbitrarily to achieve the cycle detection function
Frequency doubling function (0.01Hz)
15-segment multiple increase, ① low to high frequency ② high to low frequency ③ bottom to high frequency and then to high frequency, recyclable
Logarithmic function (0.01HZ)
① Low to high frequency ② High to low frequency ③ Low to high and then to low frequency/three modes, recyclable
vibration direction
① Vertical (Y axis), ② Horizontal (X, Z axis), ③ Vertical + Horizontal (Y, X, Z axis)
Precision
Frequency can be displayed to 0.01HZ, precision 0.1HZ
time control
Any time can be set (in seconds)
ZY-ZD-B
Vertical horizontal vibration Tester
CHINA ZY-ZD-B Vertical Horizontal Vibration Tester Picture

Introduction

Simulated transportation test is a simple and necessary means to test whether the product packaging design meets the transportation conditions. As long as the testing equipment meets the standards, quality assurance can be achieved and unnecessary losses can be avoided.

This series of products is suitable for low-frequency vibration tests on samples in laboratories and production lines of electronic components, components, electromechanical products, instruments, electronic toys, medicine and food packaging... and other industries. Such as environmental acceptance test, quality qualification test, reliability qualification test, durability test, vibration modal analysis, material property test, fatigue test, vibration prevention and improvement, etc. Simulate the vibration environment that products encounter during manufacturing, assembly, transportation and use to evaluate the vibration resistance, reliability and integrity of their structures.

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
