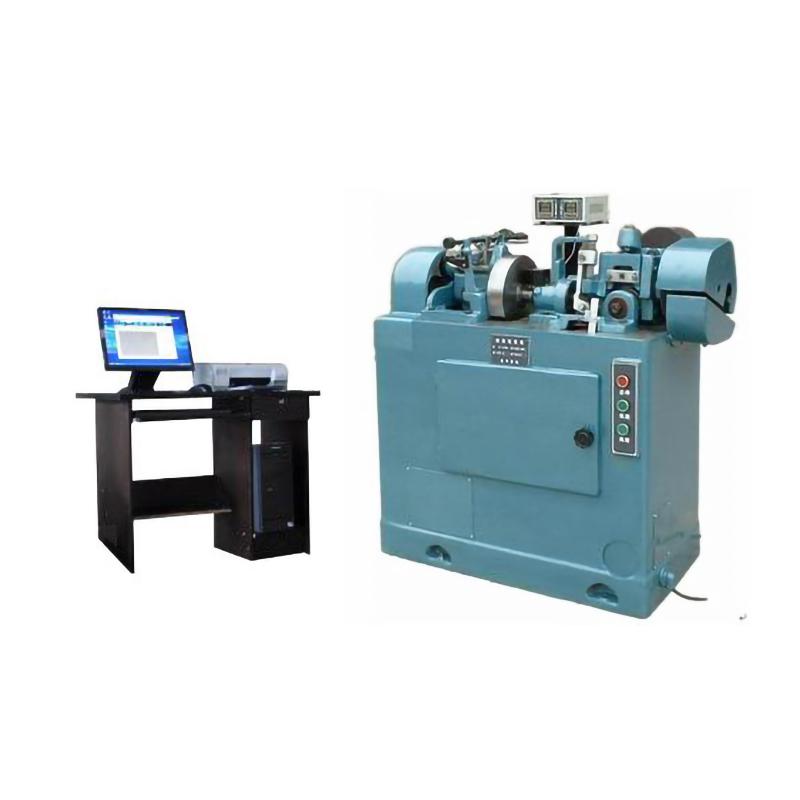

CHINA M-2000 Plastic Friction and Wear Tester
M-2000
zy M-2000 Plastic Friction and Wear TesterSPEC
zy M-2000 Plastic Friction and Wear TesterDetails
zy M-2000 Plastic Friction and Wear TesterPacking list
- SKU
- NB034101
- Maximum test force
- 2000N
- Friction torque Measurement Range
- 0~20N.m
- Rotation speed of Upper/Lower specimen shafts
- 0—600r/min
- The maximum axial moving distance of the sample
- ±4mm
- Test force indication relative error
- Above 10% of full scale, no more than +/- 2%
- Test force indication Repeatability relative error
- Above 10% of full scale, no more than 2%
- Friction moment indication relative error
- Above 10% of full scale, no more than +/- 2%
- Friction torque indication Repeatability relative error
- Above 10% of full scale, no more than 2%
- Temperature control range
- Room temperature -60 ℃
- Time control range
- 1s-9999min
- RPM control range
- 1-99999999
- Time-friction moment Linear dispersion
- The measurement display and data processing of each parameter are realized by the computer, and the time-friction moment Linear dispersion can be displayed in real time.
- Dimensions
- 970*660*1100mm
- Weight
- Approx. 500kg
Introduction
This testing machine can be used to test the wear resistance of various metallic materials and non-metallic materials (nylon, plastic, etc.) under various conditions such as sliding friction, rolling friction, rolling friction and intermittent contact friction. It is used to evaluate the material's wear resistance. Mechanisms of friction and determination of friction coefficients of materials. It can also simulate friction and wear tests of various materials under different Operating Conditions such as dry friction, wet friction, abrasive wear, etc. The machine adopts a computer control system, which can display the test force, friction torque, friction coefficient, test time and other parameters in real time, and can record the friction coefficient-time curve during the experiment. The rolling friction test can be adjusted to achieve different slip rates; the results of this product comply with GB/T12444.2-90 Metal Wear Test Method - MM Type Wear Test; GB/T3960-83 Plastic Sliding Friction Coefficient Test Method. Because this machine has many functions, simple and reliable structure, and is easy to use, there are many standard test methods based on this model and it is widely used abroad. Therefore, it is also widely used in the field of domestic (CN) tribology research.
