PosiTest HHD
Defelsko PosiTest HHD High Voltage holiday DetectorSPEC
Defelsko PosiTest HHD High Voltage holiday DetectorDetails

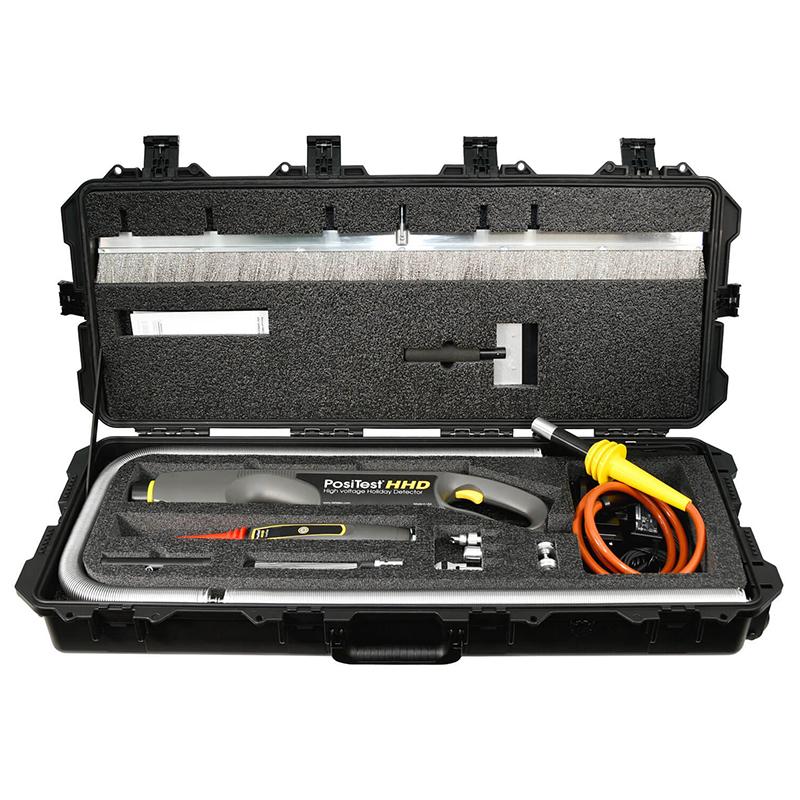

Defelsko PosiTest HHD High Voltage holiday DetectorPacking list
- SKU
- NB034103
- Detection Voltage
- 500~35000V
- type
- Pulsed DC (30Hz)
- Voltage range
- 10V at 500~1000V; 100V at 1kV-35kV
- Output Accuracy
- ±5%
- operating temperature
- -20 ℃ to 60 ℃ (-4 ° F to 140 ° F)
- battery
- 72Wh rechargeable smart lithium battery
- Charging time
- 3 hours
- battery life
- Depends on test Voltage and electrode load
- Typical battery life
- Φ12 inch rolled steel spring @10kV, 40 hours; φ40 inch rolled steel spring @10kV, 30 hours
- Weight
- 1.8 kg (4 lbs) with battery (no electrodes)
- size
- 640x64x130mm
- Standards
- AS 3894.1、ASTM D4787、ASTM D5162、ASTMG62、ISO 29601、NACE SPO274、NACE SP0188和NACESP0490
There are two main modes of operation for PosiTest HHD:
1. Standby mode：The Detector is charged, but no high Voltage is generated.

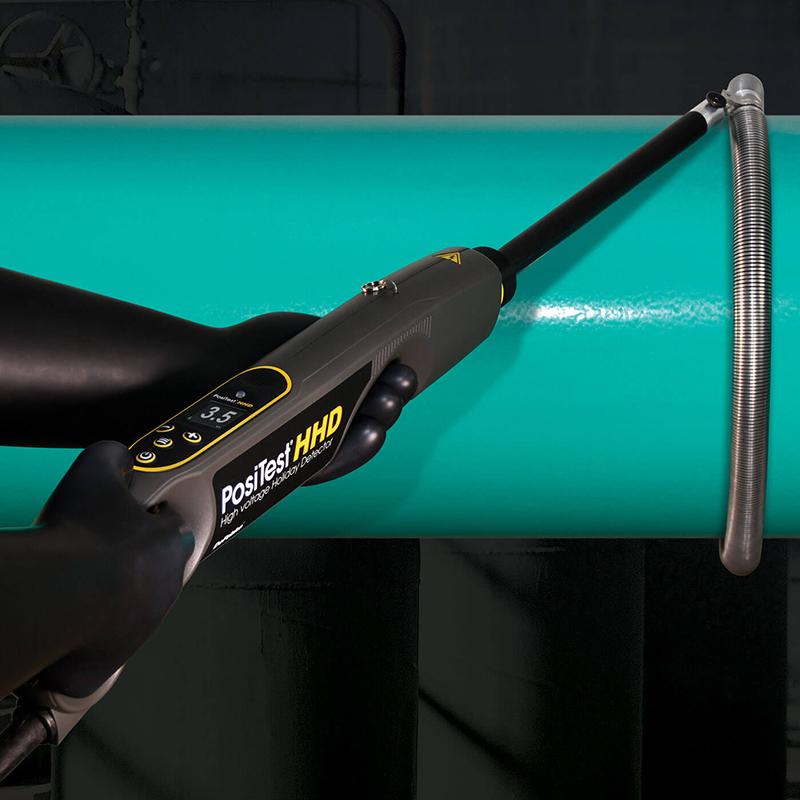

2. Detection moldstyle: The Detector generates high Voltage and analyzes the electrode Voltage and current to determine if there is a leakage current. When a live electrode passes through the surface of the coating, a missed point can be detected. When a missed coating point is encountered, an electric current flows from the electrode into the substrate. The current is returned to the Detector through the ground wire, forming a current loop and triggering an audible and visual alarm. The integrated peak-readout voltmeter measures and displays the output Voltage when in use on the display.

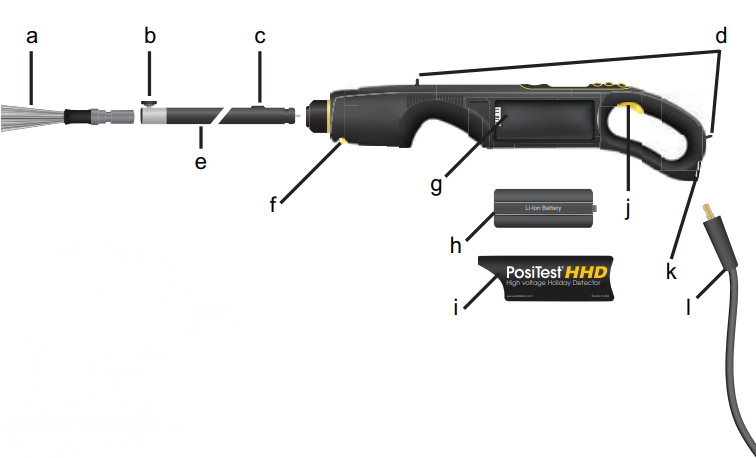

Product Structure
a. Electrode, b. thumb screw, c. Anti-rotation adjustment piece, d. Shoulder strap mounting point, e. Extension rod, F. Extension rod lock door, g. Battery box, H. Battery, i. Battery case, J. Safety trigger button, K. Grounding cable socket, i. Ground wire.
