DRICK DRK108A paper Tear Tester

DRICK DRK108A paper Tear Tester is mainly used for the determination of paper tearing degree, can also be used for lower strength Cardboard tearing degree measurement, DRK108A paper Tear Tester standard pendulum Measurement range (10---1000) mN Graduation 10mN, tearing arm (104 +/- 1) mm., tearing initial angle 27.5 ° +/- 0.5 °.
Model：
Certificate
Contact
Details SPEC
Similar products

Drick DRK108A Paper Tear TesterSPEC

Drick DRK108A Paper Tear TesterDetails

Drick DRK108A Paper Tear TesterPacking list

SKU
NB034170
Measurement range of standard pendulum
(10~1000) mN, Graduation 10mN
pendulum
(10~1000) mN, Graduation 5mN (optional)
lightest pendulum
(10~200) mN, Graduation 2mN (optional)
Error of indication
20% - 80% of the upper limit of measurement +/- 1% within the range, +/- 0.5% FS outside the range
Repeatability Error
20% - 80% of the upper limit of measurement < 1% within the range, < 0.5% FS outside the range
Tear arm
104±1mm
tearing initial angle
27.5±0.5°
tear distance
43±0.5mm
Paper surface size
25×15mm
Distance between clamps
2.8±0.3mm
Specimen size
(63±0.5)mm*(50±2)mm
Operating Conditions
Celsius temperature: 23, Relative Humidity 50% +/-5
Dimensions
420*300*465mm
Mass
25㎏.
DRK108A
Paper Tear Tester

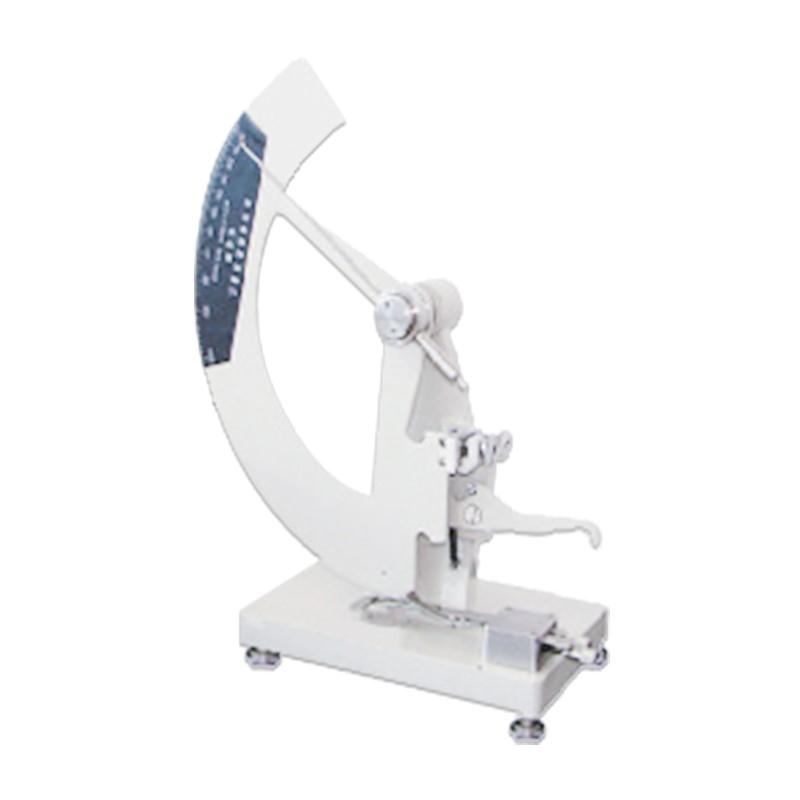

DRICK DRK108A paper Tear Tester Picture

Product Details:

DRK108A Paper tear Tester is a special instrument for tear strength determination, this instrument is mainly used for the determination of paper tear, and can also be used for the determination of tear degree of lower strength cardboard, which is a satisfactory experimental equipment for papermaking, packaging, scientific research and product quality supervision and inspection and other industries and departments.

Features

Compact structure, easy to operate, beautiful appearance, easy maintenance, multi-functional, flexible configuration,The measurement results are obtained directly, and the instrument is precisely made with high measurement accuracy.

Applications

The instrument is mainly used for paper tear measurement, and changing the configuration of the instrument can be widely applied to the measurement of other materials, such as plastics, chemical fibers, metal wires, metal foils, etc.

Technical standards

GB/T450—2002 "Sampling of paper and cardboard specimens (eqv IS0 186:1994)"

GB/T10739—2002 Standard atmospheric conditions for the handling and testing of paper, cardboard and pulp specimens (eqv IS0 187:1990)

ISO1974 Paper-Determination of Tear (Elimendorf Method)

GB455.1
