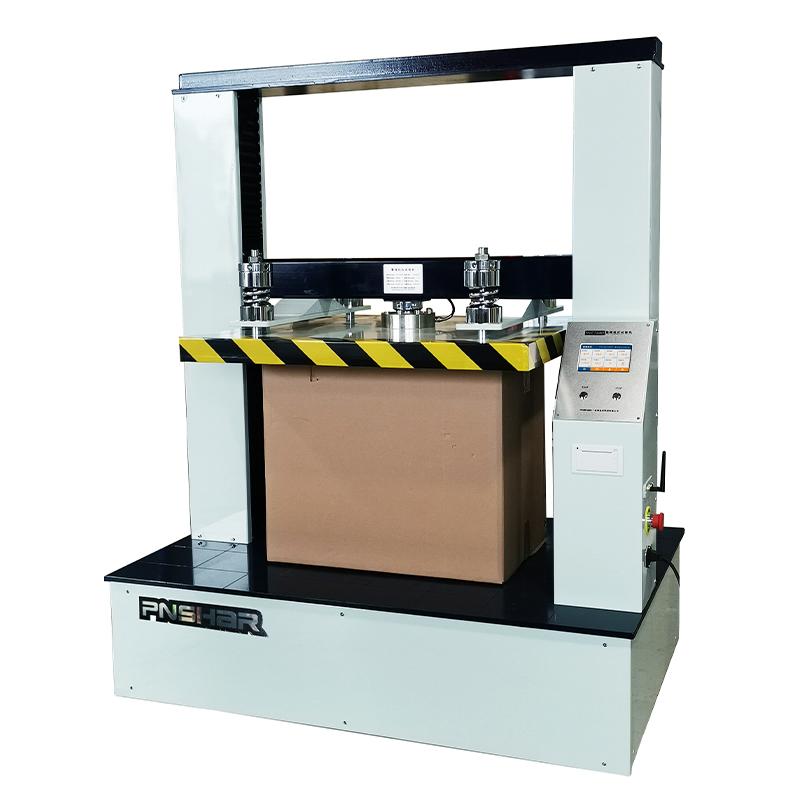

PNSHAR PN-CT700F Liquid Milk Compressive Strength Tester

PN-CT700F

Liquid milk compressive strength Tester

Introduction

PN-CT700F liquid milk compressive strength Tester is a testing instrument for the compressive performance of liquid milk designed and developed by our company according to industry requirements. It is mainly used for Tetra Pak packaging in the food industry. The force value and deformation curve are displayed in real time during the test. When the test is completed, the test results are displayed on the screen.

The instrument has an electromechanical integration structure. It adopts modern mechanical design concepts and microcomputer processing technology for careful and reasonable design. The instrument adopts a movable upper platen and a fixed lower platen. It has powerful data processing functions, which can directly obtain statistical results of various data, and has a pressure curve display function.

This instrument has three standard Operating Modes:

1. Compression test

2. Fixed value test

3.Stacking test

Features

1. Adopt new module circuit design, with WIFI Internet of Things function. After being connected to the Internet, the test results can be saved to the cloud server, and can be queried and generated through the dedicated QMS quality management system;

2. Large compression stroke, 350mm;

3. After testing, return at high speed to improve testing efficiency;

4. It adopts double screw and double guide column mechanical structure, with good parallelism, good stability, strong rigidity and long service life;

5. It adopts ball screw transmission structure and has high transmission efficiency;

6. It adopts imported stepper motor control and uses subdivision technology to achieve accurate positioning and fast response, which saves test time and improves test efficiency.

7. Can display pressure and deformation curves, and display resistance to pressure and deformation in real time;

8. It has statistical functions, showing the average value, maximum value, minimum value, standard deviation and coefficient of variation;

9. Optional PC software specially provided by our company facilitates data processing.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
