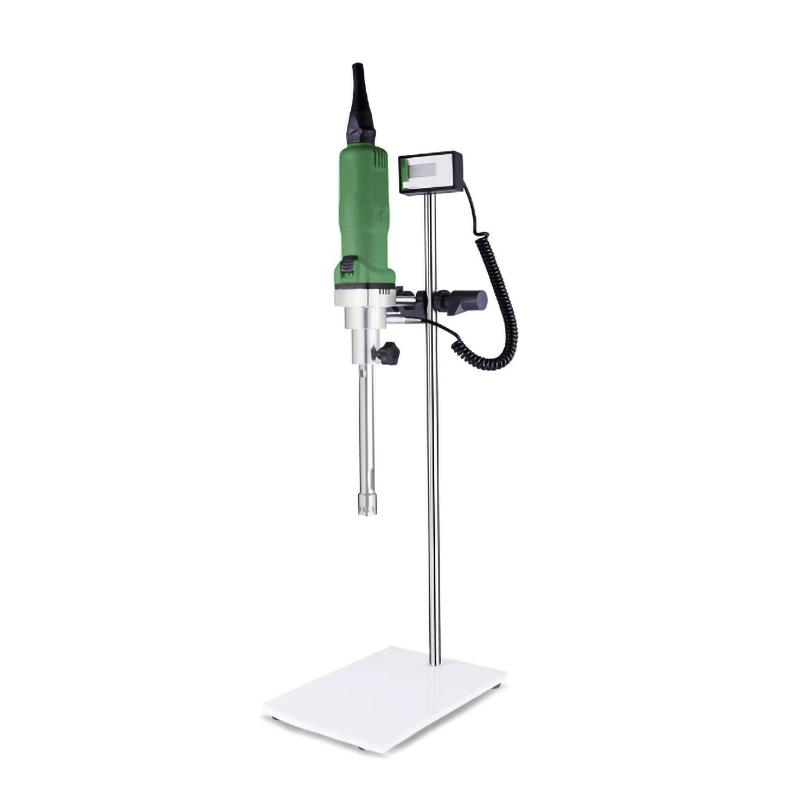

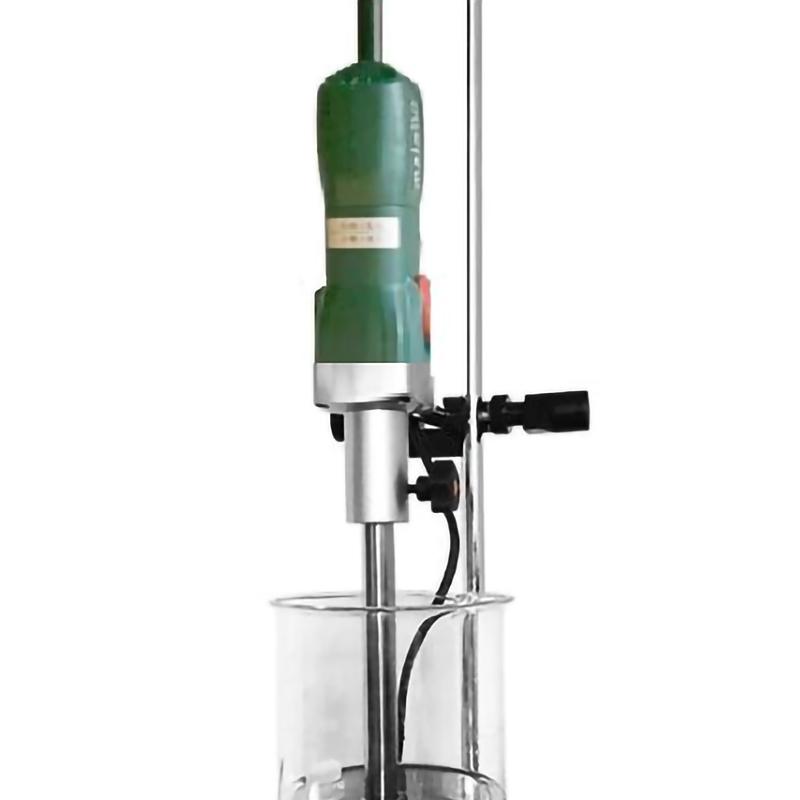

Muxuan MS-B20 laboratory high shear Mulser German original motor 3L/4000cp
SE
MS-B20
MuXuan MS-B20 Laboratory High Shear MulserSPEC
MuXuan MS-B20 Laboratory High Shear MulserDetails
MuXuan MS-B20 Laboratory High Shear MulserPacking list
- SKU
- NB034808
- Rated Voltage
- AC 220V 50/60 Hz
- output power
- 500W German motor
- Speed range
- 7000~28000rpm
- Speed regulation
- Scale stepless speed regulation (optional digital display running monitor)
- Work head material
- Stainless steel 316 #
- Standard working head
- 25G work head selection, please see the work head selection table
- Allowable environment temperature
- Not more than 40 ℃
- Allowable Relative Humidity
- Not more than 80%
- Dimensions
- 215*310*720 mm
- Total Weight
- 9.7 kg (Gross Weight: 11.0 kg)
- Standard throughput
- 50~3000mL
- Maximum Max. Viscosity
- 4000cp
- Rotor maximum linear speed
- 20m/s
- Maximum immersion liquid height
- 190mm
- stator diameter
- 20mm
- Operating temperature(MAX)
- 120℃
- Work head material
- 316
- Bearing material
- PTFE
Equipment introduction
German high-speed motor, optional with a variety of working heads, speed up to 28000rpm, line speed up to 27m/s
Application
【Material viscosity】: ≤5000 cps(mPas)
【Application】: It is suitable for dispersing, emulsifying and homogenizing product materials in industries such as biology, medicine, food, paint, ink, textile auxiliaries, cosmetics, lubricating oil, and pesticides.
【Applicable materials】: It can be used in the process of mixing solid and liquid, liquid and liquid to form solution, colloid, suspension or emulsion; such as juice, soup, dairy products, tissue homogenate, cosmetics, surfactants, Asphalt, emulsifier, oilfield chemicals and other materials.
Applicable process
According to the different working heads, it can complete a variety of different processes, including dispersion, emulsification, homogenization, grinding, mixing, dispersion, homogenization of high-viscosity materials, animal and plant tissue crushing, homogenization, etc.
native features
Integrating dexterity, convenience, and high scalability, the whole machine has a modular structure, which is easy to operate and can run for a long time. It can easily meet a variety of high-demand dispersion and emulsification experiments and enjoy the fun of laboratory dispersion and emulsification.
Application
Fine chemicals: pigments, dyes, textile auxiliaries, adhesives, silicone oil emulsification, glue, paste, surfactants, dyes
Petrochemical: lubricating oil, heavy oil emulsification, diesel emulsification, modified asphalt, catalyst, wax emulsification, etc.
Biological medicine: injections, antibiotics, medicinal emulsions, medicinal creams, health care products, microcapsule emulsification, cell tissue disruption, etc.
Coating ink: printing ink, paint, latex paint, architectural coating, nano coating, coating additives, carbon black dispersion, ink, etc.
Pesticides: Insecticides, herbicides, medicinal emulsifiable concentrates, chemical fertilizers, pesticide auxiliaries, etc.
Nanomaterials: dispersion and depolymerization of nanomaterials, etc.
Food industry: fruit juice, jam, ice cream, dairy products, food additives, tea drinks, soybean milk, essence, milk, etc.
Daily chemical products: liquid detergent, face cream, lipstick, facial cleanser, daily essence, skin care products, cosmetics, etc.
Selection table of emulsifying homogenizing head
| model | Processing capacity | Line speed | Stator diameter |
| MS-B6 | 0.2～10ml | 6m/s | 6mm |
| MS-B8 | 10～60ml | 8m/s | 8mm |
| MS-B10 | 30～150ml | 10m/s | 10mm |
| MS-B20 | 50～3000ml | 20m/s | 20mm |
| MS-B25 | 100～5000ml | 27m/s | 25mm |
| Other parameters | |||
| Operating temperature | 120°C | ||
| Working head material | 316 | ||
| Working head bearing material | PTFE | ||
