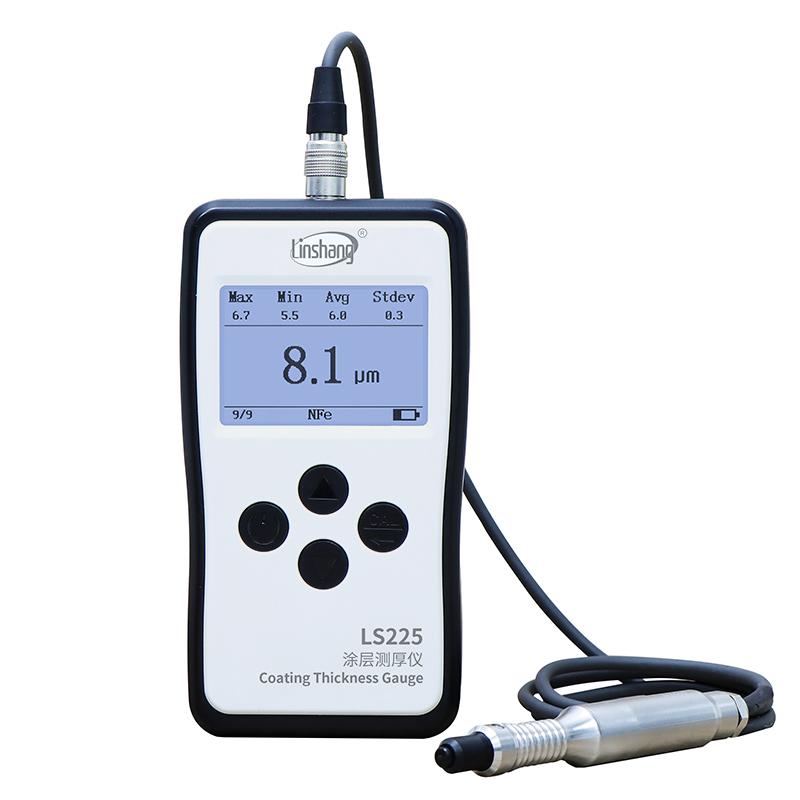

Linshang LS225 Coated Thickness Gauge with F500 Magnetic Probe

LS225 + F500

Coating Thickness Gauge

Magnetic induction, split probe, range 0-500um, error range ± (2% of reading + 0.3um); minimum matrix Film thickness 0.1mm; data statistics function; zero and multi-point calibrating; measurable small size/special-shaped material.

Host Profile

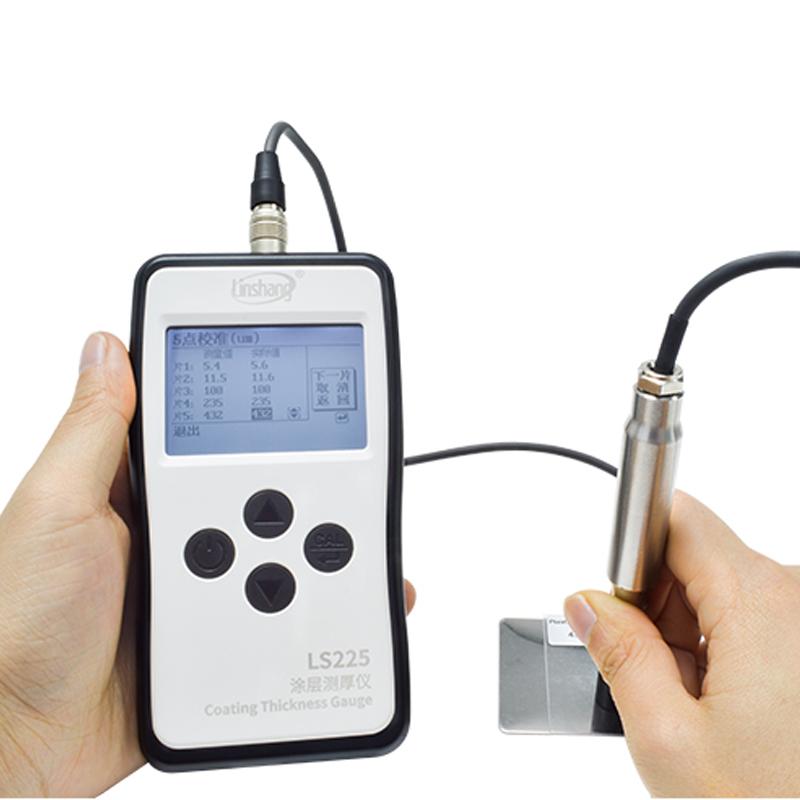

LS225 multi-probe coating Thickness Gauge is composed of LS225 host and Thickness Gauge probe. The LS225 host is mainly used for the display and statistics of measurement data. The probe of the Thickness Gauge adopts digital technology, and the data acquisition and processing are completed on the probe.

Probe Introduction

F500 is a magnetic induction probe specially used to measure the thickness of ultra-thin coatings. The ultra-high measurement accuracy and repeatability provide an effective means for measuring the thickness of very thin coatings. Used for coatings and varnishes on ferromagnetic metal substrates such as steel. , enamel, chrome, galvanized and other non-magnetic coatings, especially suitable for the measurement of thin coatings on small workpieces .

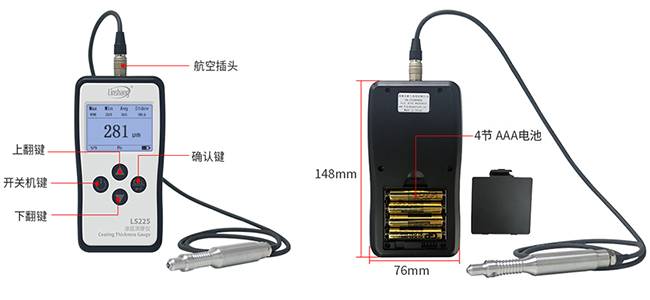

Product Structure

Product according to the standard

GB/T 4956-2003 Measurement of thickness of non-magnetic coating on magnetic substrate - Magnetic method

DIN EN ISO 2808 Determination of film thickness of paints and varnishes

JJG-818-2005 Verification Regulations for Magnetic and Eddy Current Covering Thickness Measuring Instruments

Features

(1) The probe adopts digital oscillation technology and high-speed ADC acquisition to ensure the ultra-high stability of the instrument.

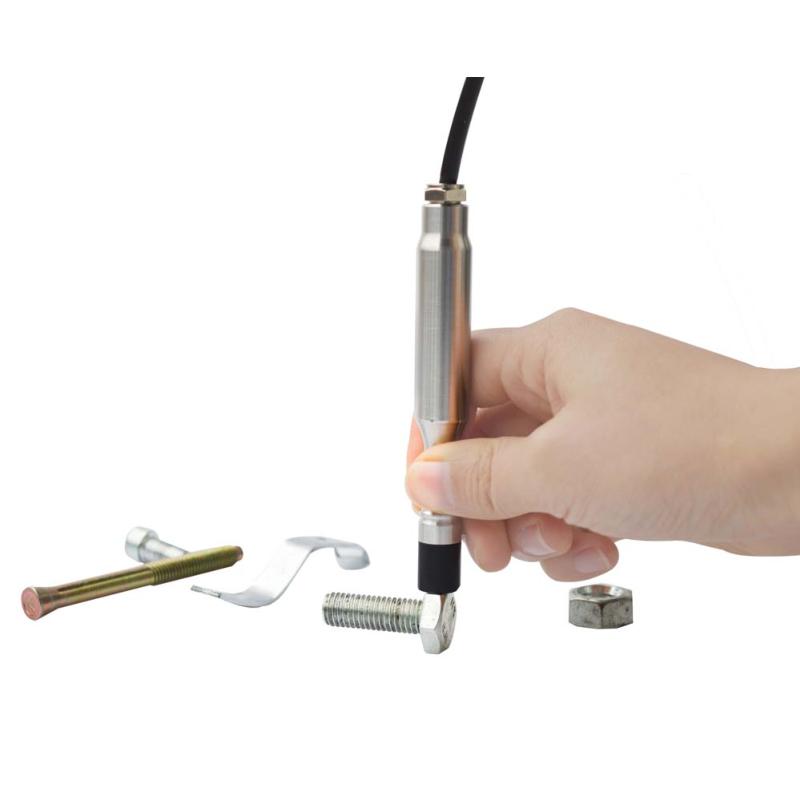

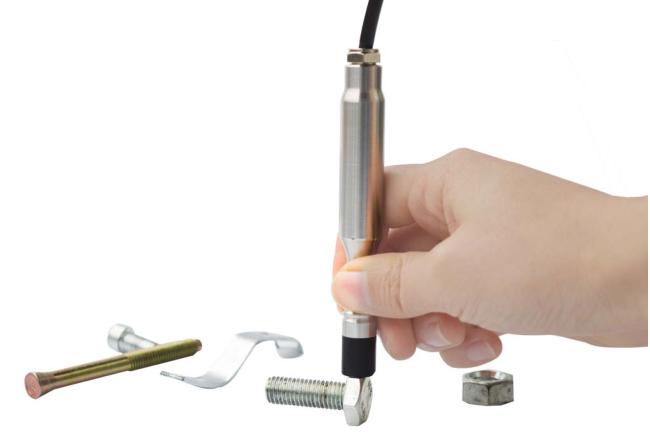

(2) Ultra-small probe, especially suitable for thin coating measurement on small workpieces such as nails and bolts.

(3) Multi-point calibration function, according to the actual workpiece correction curve, so that the measurement is more accurate.

(4) Statistical function, automatically counts the maximum value, minimum value, average value and variance value of the last 9 measured values .

(5) High hardness measuring head ensures the long-term effective use of the instrument.

(6) Using professional digital probe technology, digital signal processing is directly completed on the probe, the probe is not easily disturbed and provides excellent test accuracy. Even temperature changes do not affect the measurement and the reading remains stable to ensure very good repeatability throughout the measurement.

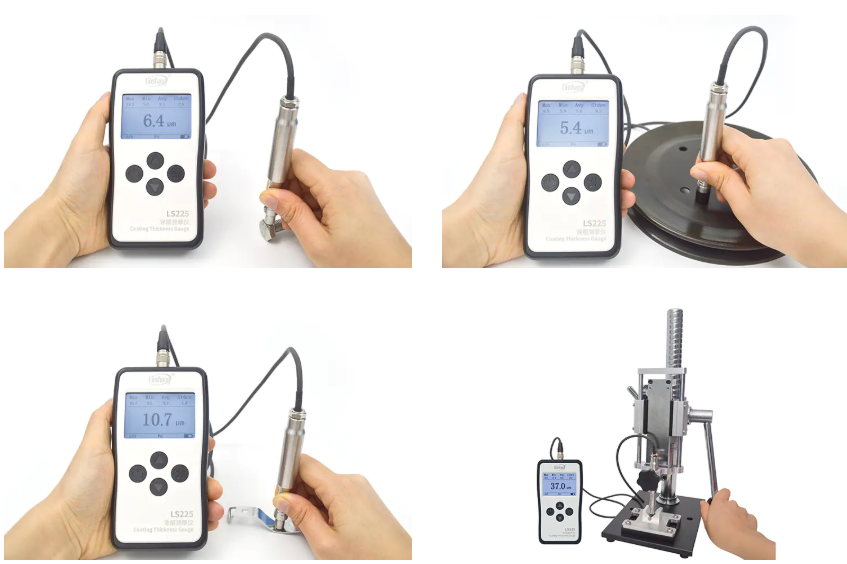

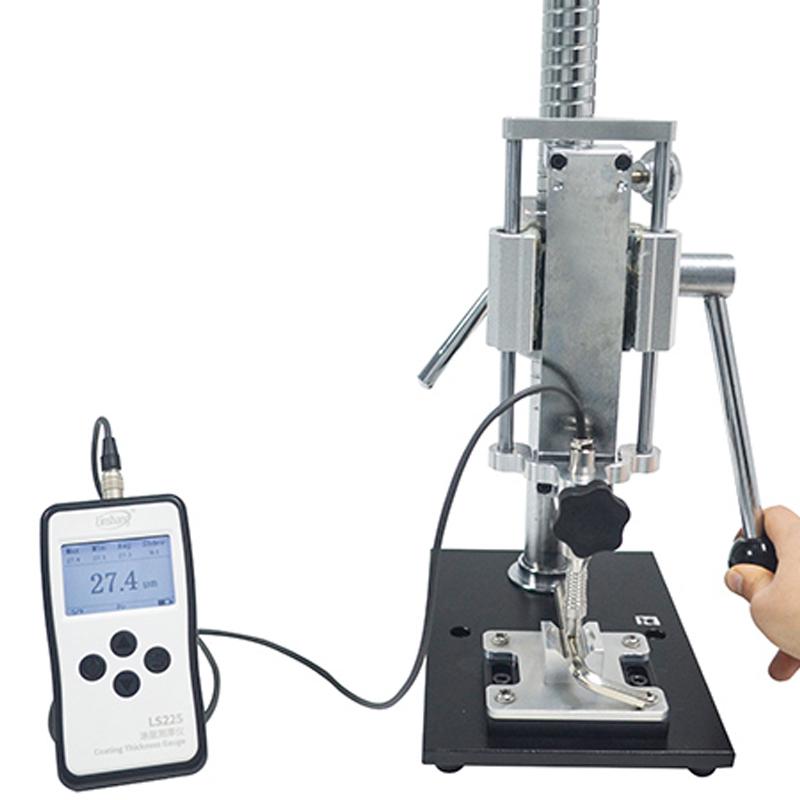

(7) Equipped with a special test fixture (optional), which not only makes the measurement more convenient, but also eliminates the measurement error caused by human factors .

Application

LS225+F500 coating Thickness Gauge is widely used in metal processing industry, hardware and other industries.

Packing list：Host x1, N1500 probe x1, zero adjustment board x1, standard sheet x7, manual x1, certificate/quality assurance card x1, 1.5V AAA alkalinity battery x4, plastic engineering box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
