Germany

QNix 7500 platings Thickness Gauge host, probe purchased separately

Thickness Gauge host, optional different range probes, just zero, no need to calibrate, with automatic shutdown function.
Model：
Contact
Details SPEC

Qnix QNix 7500 Coating Thickness GaugeSPEC

Qnix QNix 7500 Coating Thickness GaugeDetails

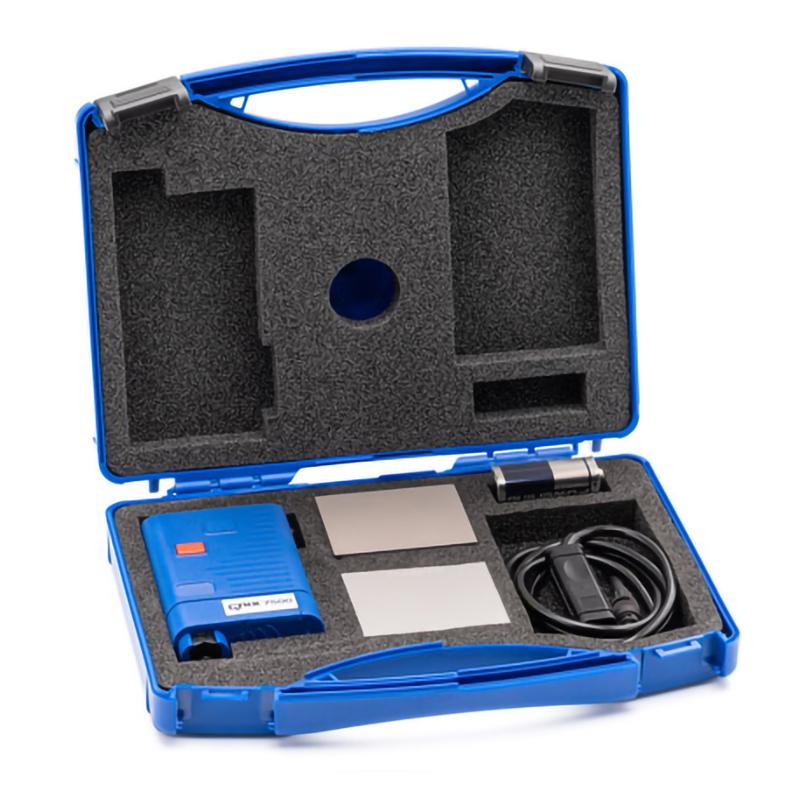

Qnix QNix 7500 Coating Thickness GaugePacking list

SKU
NB034876
Measurement principle
Magnetic Induction or eddy Current, determined by probe
Measurement range
Determined by the probe
margin of error
±2~3.5％
Minimum measurement surface
Φ25mm
Minimum radius of curvature
Convex: 5mm; Concave: 25mm
thinnest substrate
0.2mm(F)；0.05mm(N)
statistical function
Average, MAX Maximum, MIN Minimum, Standard deviation (Storage only)
Interface
RS232 printing, computer (storage type only)
Data storage
3900 Measured values, 999 datasets (storage only)
Power
9V alkaline battery 1
Display screen
LCD liquid crystal display
Operating temperature
－10~+60℃
Machine Weight
150g
Machine size
110*60*24mm
Optional accessories
Standard film thickness sheet, probe lead, computer cable, software
Temperature compensation
0~60℃
QNix 7500
Coating Thickness Gauge
Thickness Gauge host, optional different range probes, just zero, no need to calibrate, with automatic shutdown function.

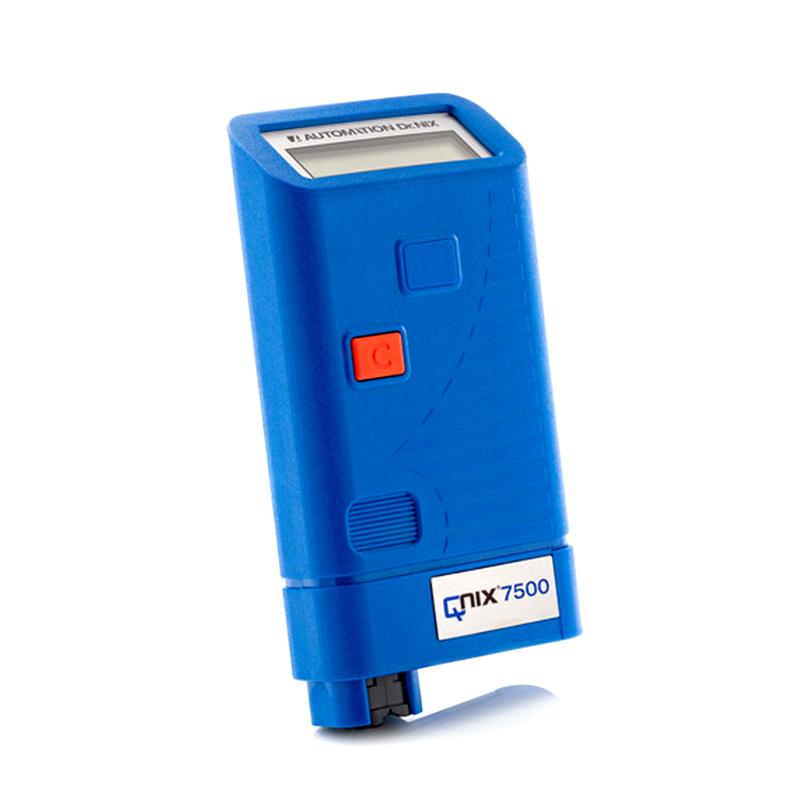

QNix 7500 platings Thickness Gauge host, probe purchased separately Picture

Introduction

The QNix7500 coating Thickness Gauge is an integrated and split-purpose instrument that can be used to meet different measurement needs by replacing the probe. The probe can be directly connected to the host for integrated measurement, or it can be connected to the host through the probe cable for separate measurement. Split measurement is simple to operate and can largely avoid errors caused by misoperation. The main body of this instrument is available in two types: ordinary type and memory type. The probes are divided into magnetic probes, eddy current probes and dual-purpose probes. The measuring ranges of the probes are 0-2mm and 0-5mm. Users should choose according to their needs when purchasing this product. Purchase a suitable probe. If you have any questions, please call us for consultation.

Features

1. Just zero adjustment, no calibration required

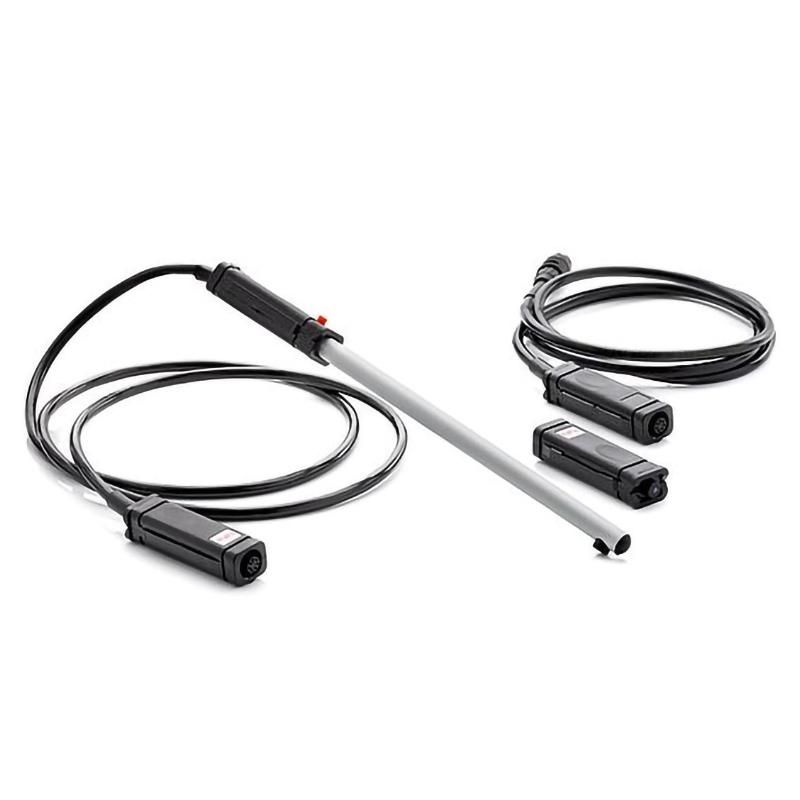

2.Fe/NFe, Fe, NFe various probes are available

3. Integration and split free combination

4. Automatic switch on and off

5. Can be equipped with a variety of probes

6. Can store 3900 sets of data (7500 memory type)

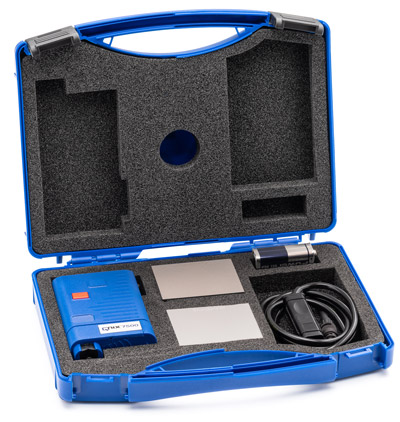

Qnix QNix 7500 coating Thickness Gauge details picture 1

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
