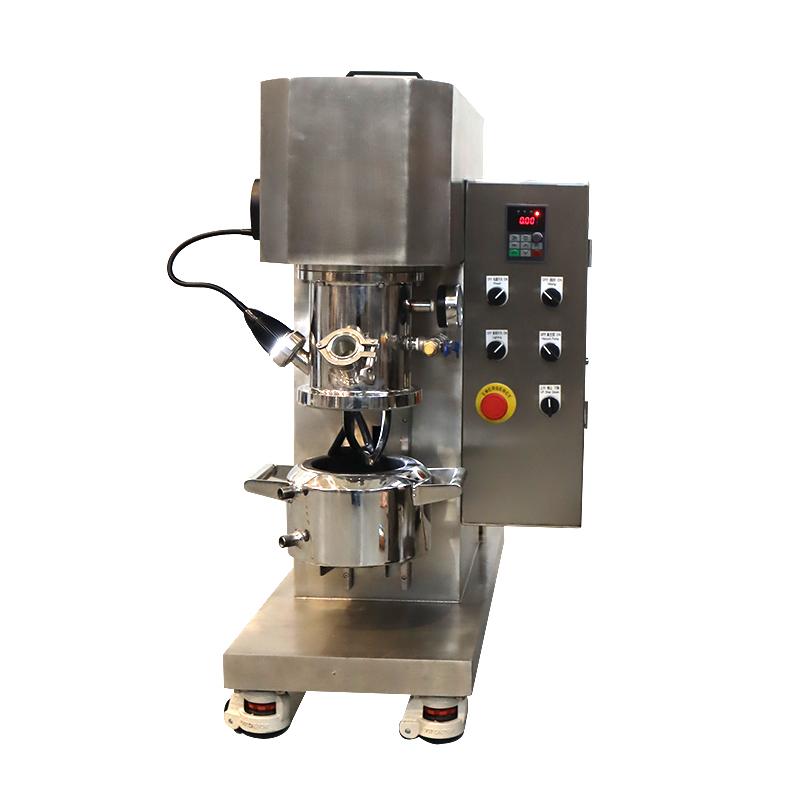

Muxuan XJ-2 experimental planet Stirrer working volume 1L

XJ-2

Planet Stirrer

Electric heating, can realize solid-liquid, powder-liquid, liquid-liquid mixing, reaction, Stir, dispersion, dissolve, shear, design volume 1.95L, double-layer jacket barrel, standard twist Impeller.

Equipment introduction

XJ series double planetary mixing mixer is a multifunctional equipment, suitable for electronic slurry, lithium ion battery slurry, adhesive, mold glue, silicone sealant, organic silica gel, polyurethane sealant, anaerobic adhesive, pigment, ink , ointment and other electronic chemical industry, medicine, building materials, pesticides, food industry liquid and liquid, solid and liquid material mixing reaction dispersion dissolution emulsification and other physical and chemical reactions.

Application

Production capacity: 1-1000L

Applications: multi-component solid-solid-liquid, solid-liquid phase, liquid-liquid phase material mixing, reaction, dispersion, dissolution, conditioning and other processes, such as adhesives, sealants, mold glue, silicone sealant , organic silica gel, polyurethane sealant, anaerobic adhesive, sealant, ointment, electronic slurry, lithium ion battery slurry, adhesive, pigment, ink, ointment paste material, grease, paint, paste cosmetics, additives For the preparation of various high viscous materials, the laboratory mixer is only used for experimental small batch trial production.

Principle

The stirring anchor running at low speed makes the material turn up and down, shear and mix in the airtight container, and the toothed dispersing disc running at high speed produces strong collision and shearing with the mixed material. While the agitator is revolving around the axis of the kettle body, It also rotates around its own axis at different speeds, so that the materials do complex movements in the kettle body, and are subjected to strong shearing and mixing. In addition, the scraper knife in the equipment rotates around the axis of the kettle body, and the materials stuck on the wall Scrape off and participate in mixing to make the effect more satisfactory. The kettle body adopts a special sealing structure that can be vacuumed by a pressurizer, which has a good exhaust and defoaming effect. The jacket of the kettle body can be heated, cooled, and equipped according to user needs. The cylinder head is lifted by hydraulic pressure, and the cylinder body can move freely, which is very convenient to operate, and the stirring paddle and scraper can be completely separated from the cylinder body with the rise of the crossbeam for easy cleaning.

Structure and composition

The double planetary mixing mixer is composed of a geared motor, a cover, a planetary frame, an agitator, a wall scraper, a material barrel, a double-column hydraulic lifting system, a vacuum system, and a frame. It is a new type of mixing device developed by innovation and improvement on the basis of assimilating and absorbing domestic (CN) and foreign professional technologies.

The device can work under vacuum and can continuously discharge water and other volatile matter, so it can be used as a degassing kettle. The barrel can be heated or cooled by oil and water circulation as required; it can also be heated by steam. The heating temperature is displayed by the temperature controller on the control panel.

Comparison of parameters of XJ series double planetary mixing mixer

Packing list：Complete-built unit x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
