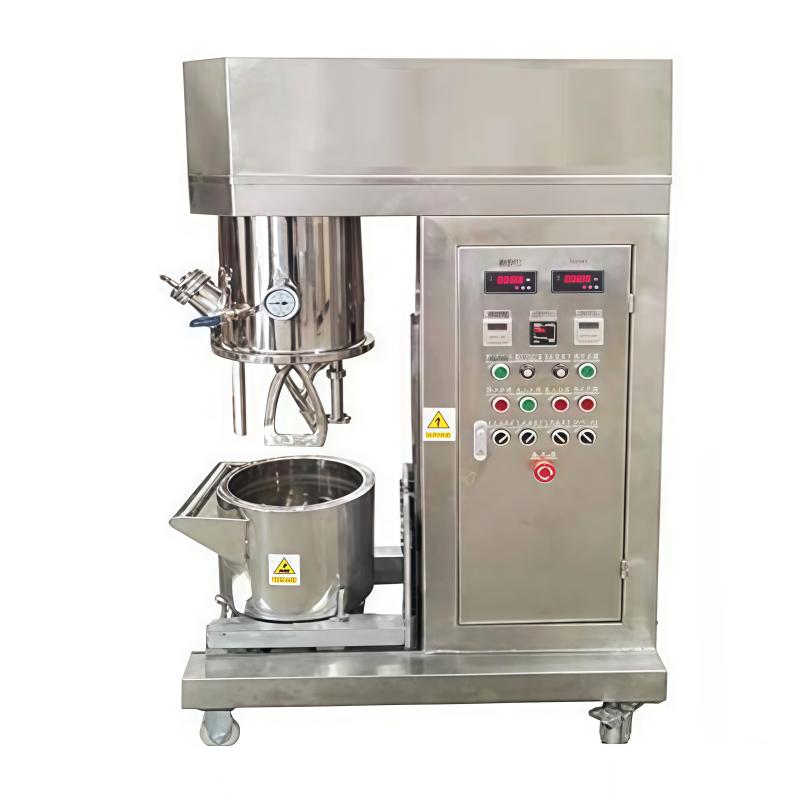

MUXUAN XJ-5L Experimental Planet Stirrer 2-5L

The MUXUAN experimental planet Stirrer XJ-5L has a working volume of 2-5L, a stirring motor Power of 1.5KW, and a dispersing motor Power of 1.5KW. It is an experimental grade planetary Stirrer, and the XJ-5L can work under vacuum.

$8154.00/set

PromotionLoading...

Coupon

Model：

XJ-5L

Certificate

MuXuan

Manufacturer authorization

Contact

Details SPEC Con CAT

MuXuan XJ-5L Planet StirrerSPEC

MuXuan XJ-5L Planet StirrerDetails

MuXuan XJ-5L Planet StirrerPacking list

SKU: NB034992

Cylinder: Specifications: inner diameter 250 * 150mm2, design Volume: 7.4L, effective Volume 5L3, material stainless steel, inner layer 316 Film thickness, 5mm; outer layer 304 stainless steel 4mm, thermal insulation layer 3mm4, liner wall after rounding, car processing, inner wall and outer wall mirror polishing, to ensure good roundness and smoothness 5, Stir barrel flange plane and upper barrel body through sealing ring 6, with water in and out DN25 water inlet and outlet, using fast-loading plug 7, quantity: 1

kettle lid: A sight glass of φ 57 (with a small scraper of silicone sheet); a sight glass of φ 45 illumination spotlight; a feeding port DN57, a mechanical vacuum table; and Miscellaneous necessary pipe fittings (vacuum/venting/spare)

Circular/Stir motor and inverter, gear reducer: Motor power: 1.5Kw/4P 2, quantity: one 3, with 1.5KW variable frequency governor matched with the motor 4, matching gear reducer, reduction ratio I = 30, use factor fa = 1.55

Planetary rotation speed: Speed: 0~48 rpm, adjustable

Gap reference value (optional): Impeller and Impeller tolerances: 8 +/- 2.5 mm2, Impeller and bottom tolerances: 5 +/- 2.5 mm3, Impeller and barrel wall tolerances: 5 +/- 2.5 mm

Planetary rotation speed: Speed: 0~96rpm, adjustable

high speed dispersion: Motor power: 1.5kw/4p 2, quantity: 1 set 3, matching 1.5kw inverter, frequency conversion speed regulation 4, single dispersion shaft, install a layer of dispersion disc

dispersion speed: Speed: 0-2000rpm

Impeller: Material: 316 Material 2. Structure: Twist Impeller Leaf 3. Quantity: Two (Group)

Vacuum section: Vacuumpump 2, power: 0.75kw3, matching vacuum buffer tank 4, with automatic pressure relief

Screw lifting: Electric lift: φ 36 * s = 300; equipped with positioning device; positioning is safe and reliable. 2. Equipped with a geared motor and a 0.55Kw/4P motor; no oil leakage, low noise 3. Lifting height: ≤ 600.

Host electronic control: Operating Voltage/frequency: 380V/50Hz/3Phase 2, control Voltage: 220V.3, Total power of the host: about 6kw

Dimensions and Weight (reference): Length, width and height: 1200 * 550 * 1500mm 2, Weight: about 600KG

XJ-5L

Planet Stirrer

Introduction to the device

XJ series double planetary mixing mixer is a multi-functional equipment, suitable for electronic paste, lithium-ion battery slurry, adhesive, mold glue, silicone sealant, silicone gel, polyurethane sealant, anaerobic glue, pigment, ink, ointment and other electronic chemical, building materials, pesticides, food industry liquid and liquid, solid and liquid material mixing reaction, dispersion, dissolution emulsification and other physical and chemical reactions.

Application

Production capacity: 1-1000L

Application field: multi-component solid-solid-liquid, solid-liquid, liquid-liquid phase material mixing, reaction, dispersion, dissolution, quenching and tempering processes, such as adhesives, sealants, mold glue, silicone sealants, silicone gels, polyurethane sealants, anaerobic adhesives, sealants, ointments, electronic pastes, lithium-ion battery slurries, adhesives, pigments, inks, ointment paste materials, greases, paints, paste cosmetics, additives and other high viscosity preparation, laboratory mixers are only used for experimental small batch trial production.

Operating Principle

The low-speed stirring anchor makes the material turn up and down in the closed container. Shearing and mixing, the high-speed operation of the toothed dispersion disc and the mixed material produce a strong impact and shear, the agitator rotates around the axis of the kettle body at the same time, and rotates around its own axis at different speeds, so that the material does complex movement in the kettle, subject to strong shearing and rubbing, in addition, the wall scraper in the equipment rotates around the axis of the kettle, scrapes the material stuck to the wall to participate in the mixing, so that the effect is more satisfactory, the kettle body adopts a special sealing structure to carry out the vacuum of the pressurizer, which has a good exhaust defoaming effect, the kettle body jacket can be heated and cooled according to the needs of users, and the equipment cylinder head is hydraulically lifted, and the cylinder body can be moved freely and the operation is very convenientIn addition, the stirring paddle and scraper can be completely separated from the cylinder block as the beam rises, and it can be cleaned cheaply.

Structural composition

The double planetary mixer is divided into a geared motor, a cap, a planetary carrier, a mixer, a wall scraper, a barrel, a double-column hydraulic lifting system, a vacuum system and a frame. It is a new type of mixing device developed by innovation and improvement on the basis of digesting and absorbing domestic (CN) and foreign professional technology.

This device can work under vacuum, and can continuously discharge water and other volatiles, so it can be used as a detachableGas kettle use. The drum can be heated or cooled by oil and water circulation or steam as required. addThe thermal temperature is displayed by a temperature controller on the control panel.

Comparison of parameters of XJ series double planetary mixing mixer

Experimental / Production Grade	Experimental				Production grade
Specifications	XJ-2L	XJ-5L	XJ-10L	XJ-20L	XJ-30L	XJ-50L	XJ-100L	XJ-200L	XJ-350L	XJ-500L
Design Volume (L)	2	7.4	10	24	30	57	108	200	350	505
Working volume (L)	0.5-1.5	February 5th	6	20	24	40	80	160	300	400
Stirring motor power(KW)	1.5	1.5	2.2	2.2	4	5.5	7.5	11	15	22
Distributed motor power(KW)		1.5	2.2	3	3	3	4	7.5	11	18.5
RPM	0-48	0-48	0-48	0-48	0-48	0-65	0-65	0-65	0-30	0-30
Rotational speed (RPM)	0-72	0-72	0-72	0-72	0-65	0-65	0-65	0-60	0-60	0-45
Dispersion Disc Speed (RPM)		0-1400	0-1400	0-1400	0-1400	0-1400	0-1400	0-1400	0-960	0-960
Wall scraping speed (RPM)	0-65	0-65	0-65	0-65	0-65	0-65	0-65	0-35	0-35	0-35
Vacuum (MPA)	-0.09	-0.09	-0.09	-0.09	-0.09	-0.09	-0.09	-0.09	-0.09	-0.09
Hydraulic station power(KW)	0.18	0.18	0.37	0.37	0.55	1.5	1.5	3	4	4
VACUUM PUMP POWER(KW)	0.37	0.37	0.37	0.37	0.1.5	1.5	1.5	2.2	2.2	3
Heating power(KW)	1.4	1.4	2.8	3.2	3.2	4	6	12	18	27
