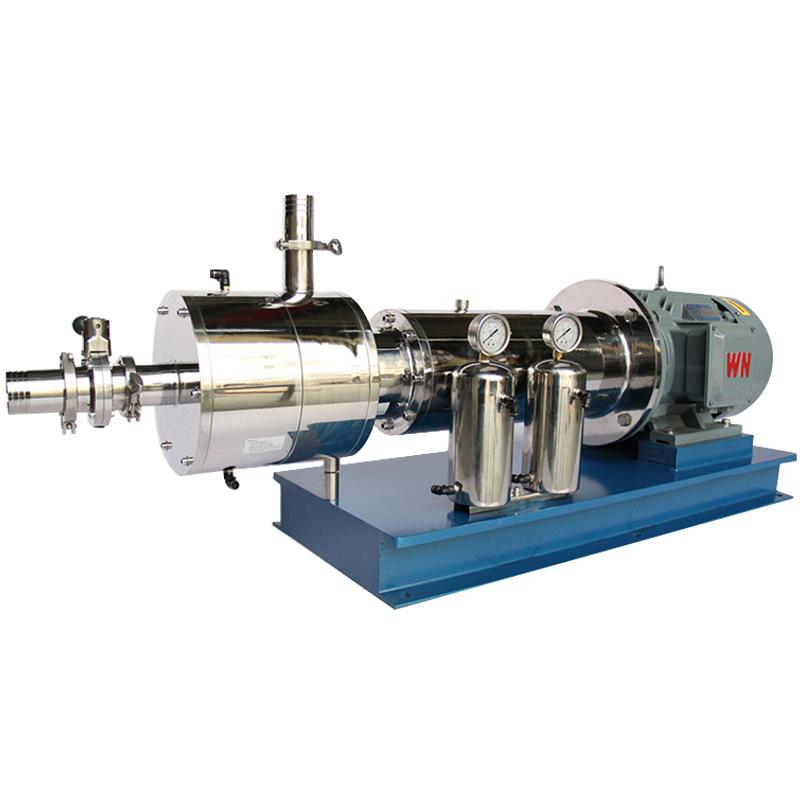

MUXUAN MXR-4-3 Three-stage emulsification pump line type high shear homogeneous Mulser 4KW
SE
MXR-4-3
MuXuan MXR-4-3 Three stage emulsification pumpSPEC
MuXuan MXR-4-3 Three stage emulsification pumpDetails
MuXuan MXR-4-3 Three stage emulsification pumpPacking list
- SKU
- NB035237
- Motor Power
- 4KW
- throughput
- ≤ 6m ³/h (with water as the medium) Professional advice: for high viscosity material applications, an independent feed pump should be used; for low viscosity material applications with high shear emulsification pumps, this equipment has low lift and short distance transportation function.
- input Voltage
- 380V/50Hz
- Motor type
- Three-phase asynchronous motor
- Rotation speed of motor
- 3000rpm
- Incoming and outgoing directions
- Forward up and out, loop processing
- Connectivity
- flange connection
- incoming and outgoing caliber
- The inlet port DN40/outlet port DN32; the import and export Dimensions shall comply with the provisions of GB/T 9112. The diameter can also be designed according to the customer's existing kettle and tank.
- rotating stator form
- Level 3
- Emulsification form
- Pipeline, continuous dispersion emulsification
- Chill down system
- Mechanical sealing adopts independent chill down form
- Installation method
- Fixed according to the site concrete base or expansion screw fixed
- Homogeneous emulsification
- Adopt online design, no dead ends, 100% of the material is homogenized through dispersion and shearing, low noise, smooth operation, suitable for
- Operating Mode
- Industrialized on-line continuous production, pipeline continuous dispersion shearing emulsification effect is good.
- Sealing form
- Double-end mechanical sealing) (water-cooled type); cemented carbide VS silicon carbide, mechanical sealing installation requirements;
- other
- Cavity and sealing chilled down water import and export 1/2 wire, the company provides water shortage protection switch, can linkage host Control system water shortage stop protection.
Introduction to the device
Pipeline type high shear homogenizing emulsifier is a continuous production or circulation processing of fine materials, fast and efficient homogenizing emulsifier. The motor drives the rotor to run at high speed, and the particle size of liquid-liquid and solid-liquid materials is narrowed through the method of mechanical external force, so that one phase is evenly distributed into another phase or more phases, so as to achieve the effect of refinement, homogeneity, dispersion and emulsification, so as to form a stable emulsion state. The single-stage pipeline high-shear emulsifier can be equipped with a feeding pump in the front stage, which has certain applicability to medium and high viscosity materials. The equipment has low noise, stable operation, no dead ends, and 100% of the materials are dispersed and sheared. It has the function of short-distance and low-head conveying.
Operating Principle
The three-stage pipeline high-shear emulsifier adopts a horizontal structure. Three sets of rotor stators are installed in the narrow working chamber, and the rotor stator can be designed as a single-stage two-layer or single-stage six-layer mechanism, and the rotor stator is dually coupled and highly coordinated. The intermediate shaft is driven by the motor to run at high speed, the stator forms a vacuum, the material is sucked into the rotor stator cavity from the inlet, and the strong kinetic energy makes the rotor produce a relatively high linear velocity, so that the material flies out after strong impact, crushing, centrifugal extrusion, liquid layer friction and shear between the rotor and stator gaps, and under the action of a variety of different directional forces, a strong turbulence is generated, and the material flows out from the outlet. Multiple cycles are possible.
Scope of application
[Application field]: It is suitable for the dispersion, emulsification and homogenization of product materials in biological, food, coatings, inks, textile auxiliaries, cosmetics, lubricating oils, pesticides and other industries.
[Applicable materials]: solid and liquid, liquid and liquid mixed to form a solution, colloid, suspension or emulsion can be used, such as juice, soup, dairy tissue homogenate, cosmetics, surfactants, asphalt, emulsifiers, oilfield chemicals and other materials.
Advantages
1. Strong self-priming ability, continuous dispersion and emulsification effect.
2. The speed can reach 3000 rpm, which can be adjusted by the experimental speed of energy-saving and environmental protection inverter.
3. Stainless steel body design and manufacturing, optional Siemens motor, optional stainless steel motor cover.
4. The rotor stator is made of CNC machining of the whole forging material, with high precision and high linear speed.
5. Double-end mechanical seal design, no leakage, reduce maintenance cost, jacket cooling design machine can run for a long time.
6. According to the actual needs, we can provide a variety of connection methods, flanges, quick connectors, quick assembly, etc., and can customize products with special pressure and special temperature environments, and can be equipped with imported pressure buffer and mechanical seal water shortage protection system.
