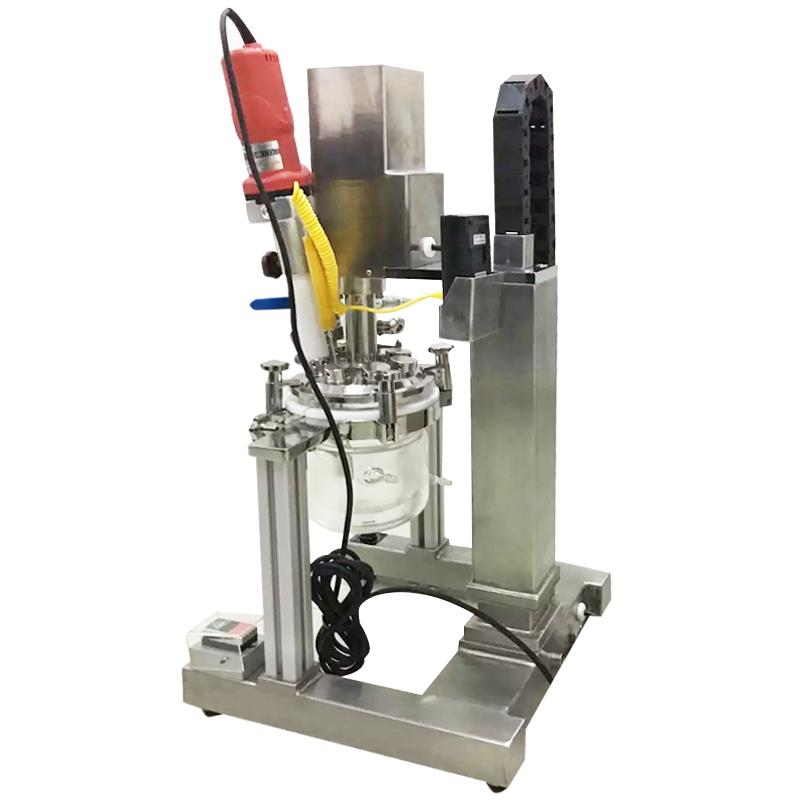

MUXUAN MS-E1 Laboratory Vacuum Homogenizing Mulser
MS-E1
MuXuan MS-E1 Laboratory Vacuum Homogenization MulserSPEC
MuXuan MS-E1 Laboratory Vacuum Homogenization MulserDetails
MuXuan MS-E1 Laboratory Vacuum Homogenization MulserPacking list
- SKU
- NB035256
- Power
- 220V/50Hz
- stirring amount
- 300ml
- Processing Capacity
- 500ml
- Processing Capacity
- 1000mL
- Operating temperature(MAX)
- 120°
- Heating mode
- Water bath, oil bath circulation
- reachable vacuum
- -0.09Mpa (positive pressure optional)
- Max. Processing Viscosity
- 100000cp
- Stirrer Power
- 120W
- Stirrer Rotation speed
- 10~230rpm
- Blade configuration
- Anchor Scraper Impeller
- Emulsification Homogenizer Power
- 500W
- Emulsification Homogenizer Rotation speed
- 10000~28000rpm
- Reaction Kettle Cover Opening
- Homogenizer port + feeding port + temperature measurement port + vacuum port + 3 spare
- Lifting method
- Electric lift (manual optional)
- Lifting stroke
- 210mm
- Contact material
- SUS316L Stainless Steel + PTEF + Borosilicate Glass Sandwich Container
- Outer diameter of vacuum port
- 10mm
- Glass container interlayer import and export
- 12mm
- Environmental temperature
- 5~40℃
- Allowable Relative Humidity
- 80%
- Packing size
- 400×390×780mm
- Weight
- 35Kg
- Encasement mode
- Encasement
- Miscellaneous
- Customizable
Equipment introduction
MS-E series laboratory vacuum homogenizing emulsifier, the standard system's processing capacity is 0.5L, 1L, 2L, 5L, 10L and other series, which can realize the dispersion, emulsification, homogenization and mixing of materials in vacuum or pressure environment and other processes. Dispersion, homogenization, emulsification, reaction, fermentation, cream preparation, polymer polymerization, synthesis reaction, etc.
Application scope
[Material viscosity]: â¤10000 cps
ãProduction capacityã:0.5-10L
[Application areas]: dispersion, stirring, homogeneous emulsification, reaction, fermentation, cream preparation, polymer polymerization, synthesis reaction, etc.
[Applicable materials]: Solids and liquids, liquids and liquids can be mixed to form solutions, colloids, suspensions or emulsions; such as juices, soups, dairy homogenates, cosmetics, surfactants, asphalt , emulsifiers, oil field chemicals and more than a thousand kinds of materials.
Features
The equipment is highly modular in design and can be equipped with various systems.
High-speed motor imported from Germany, long life design, stable operation
Emulsification system with reasonable structural design and excellent material selection
Stepless speed regulation, the speed can reach 28000rpm, providing you with a high shear line speed of 27m/s
Meet your different Operating Environments (closed, open, normal pressure, vacuum)
Overload protection, double protection insulation
The working head is made of stainless steel, reusable, and complies with GMP standards.
The equipment is modularly designed and any system can be flexibly combined. Quick disassembly and assembly of working head
Optional equipment
Reactor system
emulsification system
Stirring system
Temperature control system
lifting system
Vacuum system
Heating system
Online monitoring system
