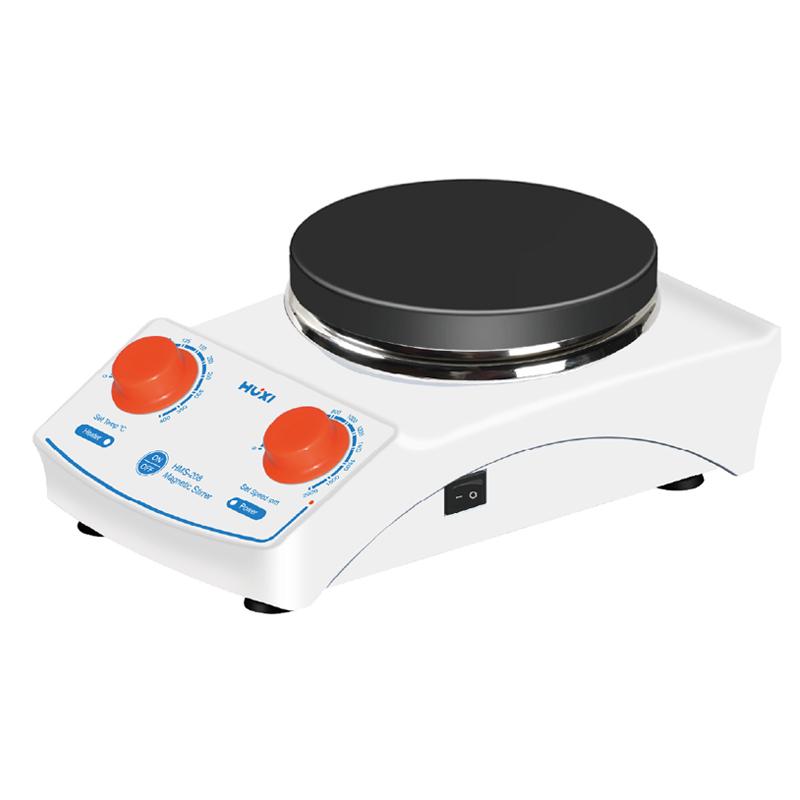

HMS-208 magneticstirrer heating tube

HMS-208

Magneticstirrer

20L, input power 20W, rotational speed range 100-2000rpm, Heating Plate size 145mm, aluminum pressure Ceramics coated table, heating method: heating tube, scale display, display accuracy ± 1, Temperature range RT + 5~ 250, Stir sub-length 20~80mm, power 900W

Applications

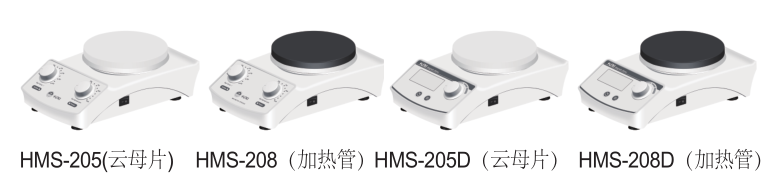

The heated magnetic stirrer is divided into two types: HMS-20 series non-digital display and HMS-20D series digital displaytype, suitable for liquid or solid-liquid mixture with not very large viscosity, mainly used in chemical synthesis,Analytical chemistry and life sciences.

Features

1. LCD display, real-time display of heating, stirring and time parameters;(HMS-20D series only);

2. LCD display screen with backlight design, convenient for parameter setting and monitoring;

3. Brushless motor driven, wide speed range, longer service life;

4. Timer function, easy to control the time of stirring and heating;(HMS-20D series only);

5. Running lock function to prevent accidental change of running state;

6. Double heating control circuit, when one heating circuit fails, it can continue to maintain temperature stability;The heating function is controlled separately, and after the heating is turned on, the button is highlighted for easy operation;

7. Pressed aluminum sealed heat-insulated shell to effectively prevent liquids and gases from entering the instrument and protect circuit componentsCorrosion-infested;

8. Ceramic coating, with extremely strong corrosion resistance, convenient for cleaning solvents, oils or other solvents that accidentally drip on the surface of the light plateHe contaminants.

Packing list：Host X1, cylindrical Stir X1, fuse X1, warranty card (including certificate of conformity) X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
