3NH YT4200-P1 Coating Thickness Gauge

3NH YT4200-P1 integrated iron-based Coating Thickness Gauge matrix Fe, probe form integrated, resolution 0.1/1 μm, Measurement range 0~1250μm, YT4200-P1 integrated iron-based Coating Thickness Gauge adopts integrated design, one-button measurement, more convenient operation.
Model：
Certificate
Contact
Details SPEC CAT

3NH YT4200-P1 Coating Thickness GaugeSPEC

3NH YT4200-P1 Coating Thickness GaugeDetails

3NH YT4200-P1 Coating Thickness GaugePacking list

SKU
NB035783
matrix material
Fe
Probe position
Integrated type
Resolution
0.1μm|1μm
Measurement range
0~1250μm
margin of error
Zero correction : +/- ( 3% H + 1) μm; two-point correction : +/- ( 1~ 3% H + 1.5) μm;
Small measurement size
10×10mm
Minimum substrate thickness
Magnetic: 0.2mm
Minimum radius of curvature
Convex radius 5mm; Concave radius 10mm
Unit display
μm
Power Supply
2 AA alkaline batteries or NiMH rechargeable batteries;
Dimensions
102*66*24mm
Weight
99G (including battery)
Operating temperature
0~40 ℃ (10~90% RH without condensation)
Storage temperature
-10~50℃
Standard Accessories
1 piece base (iron base), wrist strap, calibrated test piece
Optional accessories
Calibrated specimens (12 μm, 25 μm)
YT4200-P1
Coating Thickness Gauge

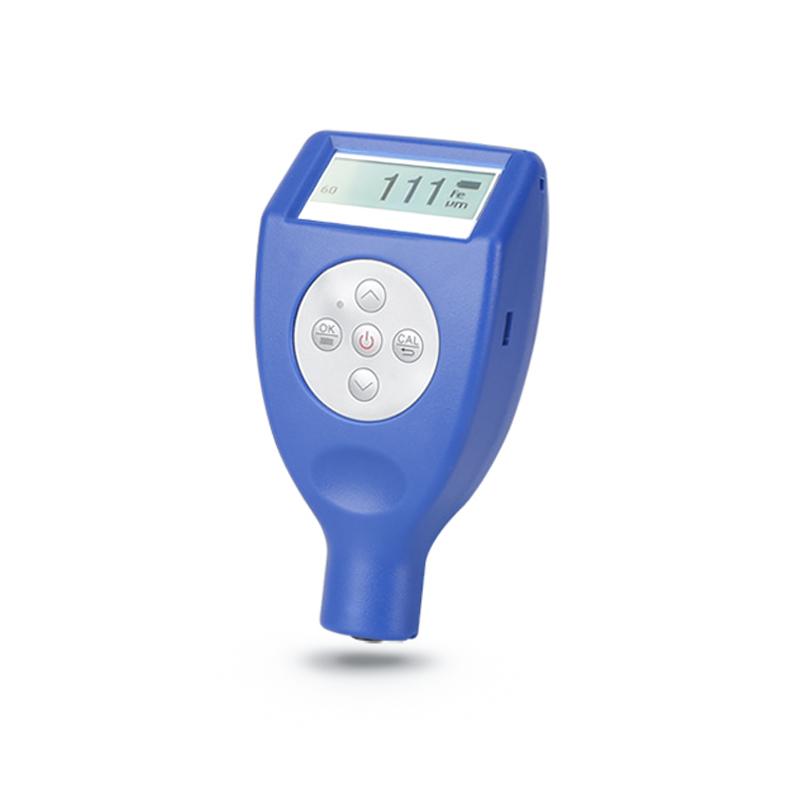

3NH YT4200-P1 Coating Thickness Gauge Picture

Introduction

YT4200 is a domestic (CN) coating Thickness Gauge manufactured by 3nh company, which can quickly and accurately non-destructively detect the thickness of various non-magnetic coatings coated on magnetic metal substrates. The instrument fully conforms to the magnetic test principle specified in ISO 2178, GB/T 4956, ASTM B499 and other standards, and is the basic equipment of the coating surface treatment industry.

Application industry

Fe-based probes can detect the thickness of various non-magnetic coatings sprayed on various magnetic substrates (such as steel), such as paint layer, powder coating layer, porcelain coating layer, chrome coating layer, copper coating layer, zinc coating layer, etc.

Features

a. It can quickly and accurately test the thickness of non-magnetic coating on a variety of magnetic metal substrates (magnetic method);

b. One-handed design, in line with the structural design of human mechanics;

c. One-click test, convenient and fast;

d. The instrument can be accurately calibrated by using two methods: single-point calibration and multi-point calibration;

e. Low power consumption is more power saving, low power alarm;

f. With backlit display, buzzer prompt;

g. High wear-resistant probe, not less than 800,000 measurements;

h. Multiple measurement modes: single point measurement, continuous measurement;

FAQ
QIs there an instrument that can measure the thickness of the coating? Copper plated on iron, glued on copper, about 10um of copper. To test the glue, the glue layer should not exceed 500um.
A The substrate environment is complex, and sample testing is recommended.
