Sanenchi/3nh YH1210 Horizontal Haze Tester φ 4mm

SE
Compliant with ASTM D1003 and ISO 13468 standards, supports full light transmitance and haze testing. Adopt PD array Detector, 7-inch touch screen, open sample compartment supports vertical and horizontal testing, suitable for a variety of samples. USB data output, equipped with professional analysis software
Certificate
Contact
Details SPEC Con CAT OI

3NH YH1210(Φ4mm) Horizontal Haze MeterSPEC

3NH YH1210(Φ4mm) Horizontal Haze MeterDetails

3NH YH1210(Φ4mm) Horizontal Haze MeterPacking list

SKU
NB035825
Lighting method
Transmission: 0/D (parallel light illumination, diffuse reflection reception)
Standards
ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K 7136
Integrating sphere size
F154mm
lighting source
400~700Nm combined LED light source
sensor
PD Array Detector with CIE V (λ) 2 Degree Visual Response
Transmittance range
0~100%
Measurement aperture
F4mm
Sample size
Film thickness less than 105mm
Other chromaticity indicators
Haze (ASTM D1003/1044, ISO 13468), light transmitance T (ISO), light transmitance T (ASTM)
Observer angle
2°
Observation light source
D65,A,C
show
Pass/Fail Results
Measurement time
About 1.5s
haze resolution
0.01 unit
Haze, sexual repeability
Φ20mm diameter, less than 0.05 (after the instrument is preheated and corrected, the standard haze sheet with a haze of about 40 is tested 30 times at an interval of 5s)
Inter-station difference
Φ20mm diameter, less than 0.4 (after the instrument is preheated and corrected, the standard deviation between the standard haze sheet and the reference value is tested at intervals of 5s)
size
Length X width X height = 487X260X298mm
Weight
Approx. 8.0kg
Power Supply
DC 24V, 3A power adapter Power
Lighting source life
5 years more than 3 million measurements
Display
TFT true color 7inch, capacitive touch screen
interface
USB, print serial port
Store data
1000 master standards, 20,000 samples
language
Simplified Chinese, Traditional Chinese, English
Operating temperature range
0~40℃（32~104°F）
Storage temperature range
-20~50℃（-4~122°F）
YH1210(Φ4mm)
Horizontal Haze Meter
Compliant with ASTM D1003 and ISO 13468 standards, supports full light transmitance and haze testing. Adopt PD array Detector, 7-inch touch screen, open sample compartment supports vertical and horizontal testing, suitable for a variety of samples. USB data output, equipped with professional analysis software

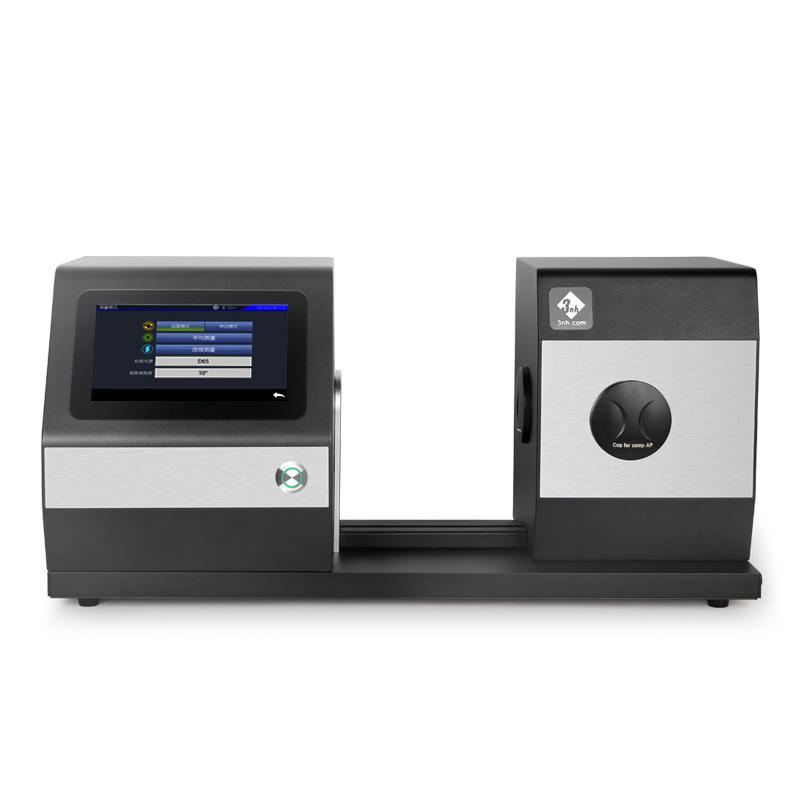

Sanenchi/3nh YH1210 Horizontal Haze Tester φ 4mm Picture

Introduction

YH1210 horizontal haze meter can easily implement ASTM D1003 non-compensation method, ISO 13468 compensation method, total light transmittance, haze test, and the open sample chamber can be tested vertically and horizontally, adapting to more samples to be tested. YH1210 haze meter adopts PD array Detector, which meets CIE V(λ)2-degree visual response, and compensation method measurement can realize high-precision and repeatable light transmittance and haze data measurement.

Advantages

1. Double standard ISO & ASTM

It can meet the test standard requirements of different users and meet the standards: ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136

2. Easy to operate, faster and more accurate measurement

The YH1210 haze meter is equipped with a large-size touch screen, which is easy and convenient to operate. It adopts a PD array Detector and meets the CIE V(λ) 2-degree visual response to achieve high-precision and repeatable transmittance and haze measurements. USB data output device, can be docked with laboratory system.

3. Dynamic measurement

Independent light source Detector and temperature sensor to monitor light source and environmental changes at all times to ensure reliable test data

4. With a compensation port to make the measurement data more accurate

Meet ASTM D1003 non-compensation method, ISO 13468 compensation method, total light transmittance, haze test, provide more accurate test results

5. The measurement is convenient and the sample is suitable for a wide range of

Open measurement area, can be tested vertically and horizontally, adapting to more samples to be tested

6. Quality management software

Provide powerful haze and light transmittance measurement and analysis software, which is suitable for quality monitoring and tabular management of haze and light transmittance data in various industries. Dataize the user's management on the PC side, compare the differences in haze and light transmittance, and generate a test report form to facilitate customer customization and management.

Applications

YH1210 haze meter is widely used in transmittance and haze detection in glass processing, plastic processing, film, display screen processing, packaging and other industries.
