Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator

Automatic small coater is used for gluing on Glass. It is a wire rod coater, also known as a gluing machine. It comes standard with Jenner ZUA2000.150 adjustable Coating Applicator. The application width is 150mm, and the film thickness of 0~3mm can be scratched. The bottom plate of TBJ-A1-XB is made of Glass.
Contact
Details SPEC VIDEO CAT OI
Similar products

zy TBJ-A1-XB+ZUA2000.150 Automatic Film ApplicatorSPEC

zy TBJ-A1-XB+ZUA2000.150 Automatic Film ApplicatorDetails

zy TBJ-A1-XB+ZUA2000.150 Automatic Film ApplicatorPacking list

SKU
NB035867
Coating speed
5~ 180Mm/s (< 5mm/s can be customized)
Coating size
300*400mm
Coating rod specification
Standard 1 1μm Accuracy China wire rod and 1 0.1μm Accuracy imported wire rod + ZUA2000.150 adjustable preparer
Spreader displacement
Digital display, different speeds, displacement Accuracy control
Host Power
220V 50Hz
Dimensions
650*410*520mm
Weight
Net Weight 45KG
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Optional
Substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader)
Customizable function
Jet system device, UV solid-containing device, automatic inking system
TBJ-A1-XB+ZUA2000.150
Automatic Film Applicator

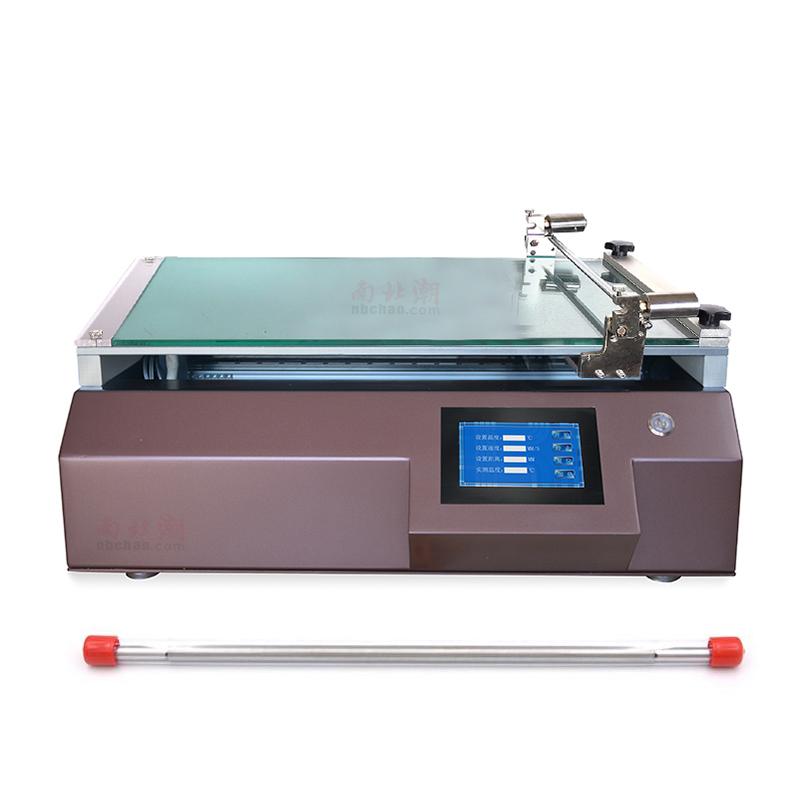

Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Picture

product description

The automatic small-scale coating machine is used for coating glue on glass. It is a wire-bar coating machine. It is equipped with a JENER adjustable applicator as standard. The coating width is 150mm and can be scraped to a film thickness of 0~3mm. TBJ- The bottom plate of A1-XB is made of glass, and the speed control is infinitely variable.

The Touch Laboratory TBJ-A1 wire rod coating testing machine is a newly upgraded product that is carefully designed for coating precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless films. After testing samples, this equipment has been favored by many familiar enterprises, R&D institutions, and colleges and universities since it was put into the market.

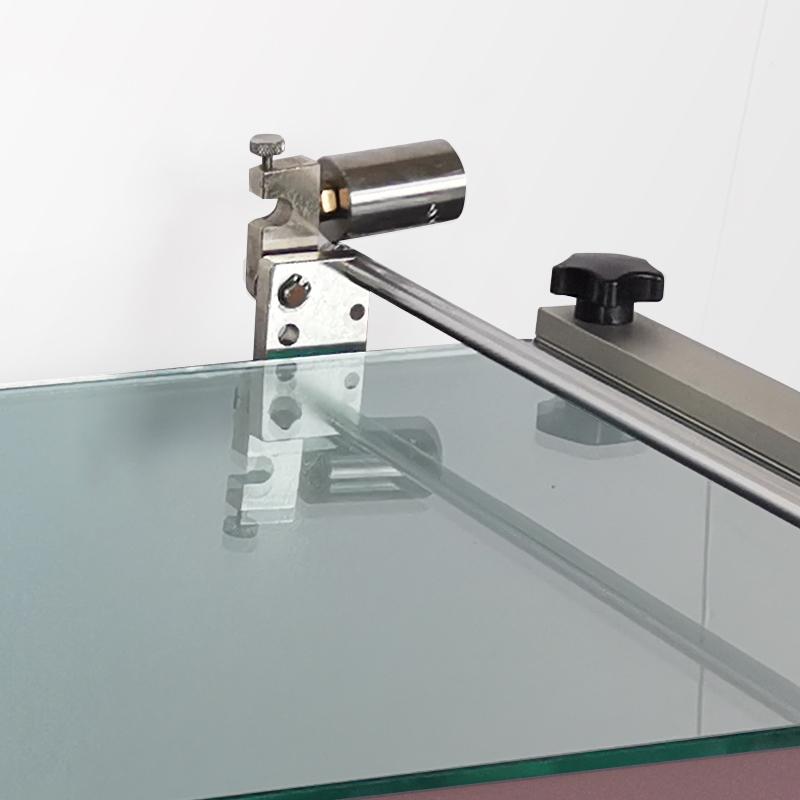

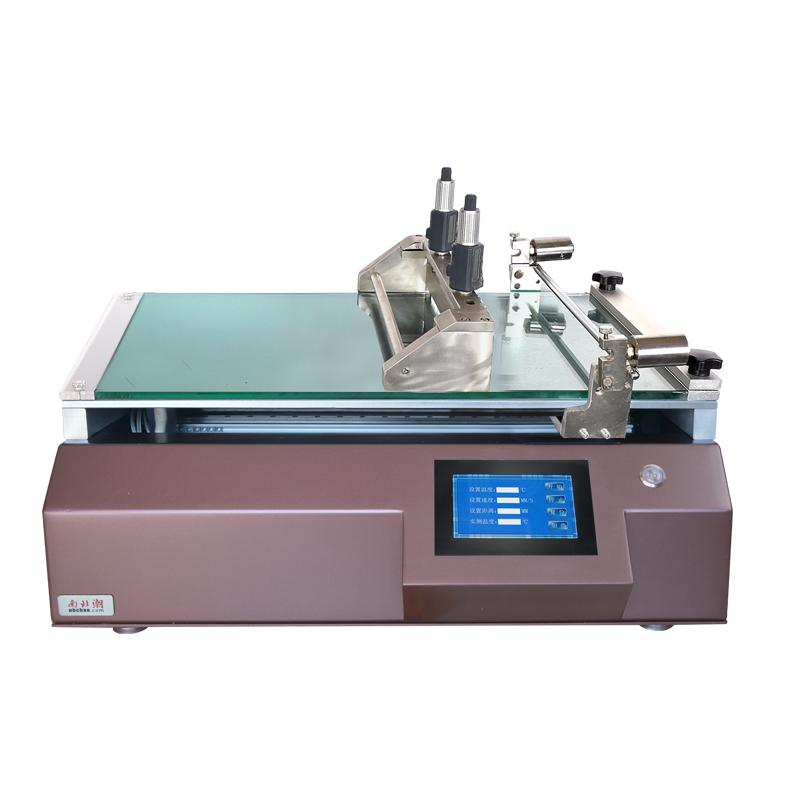

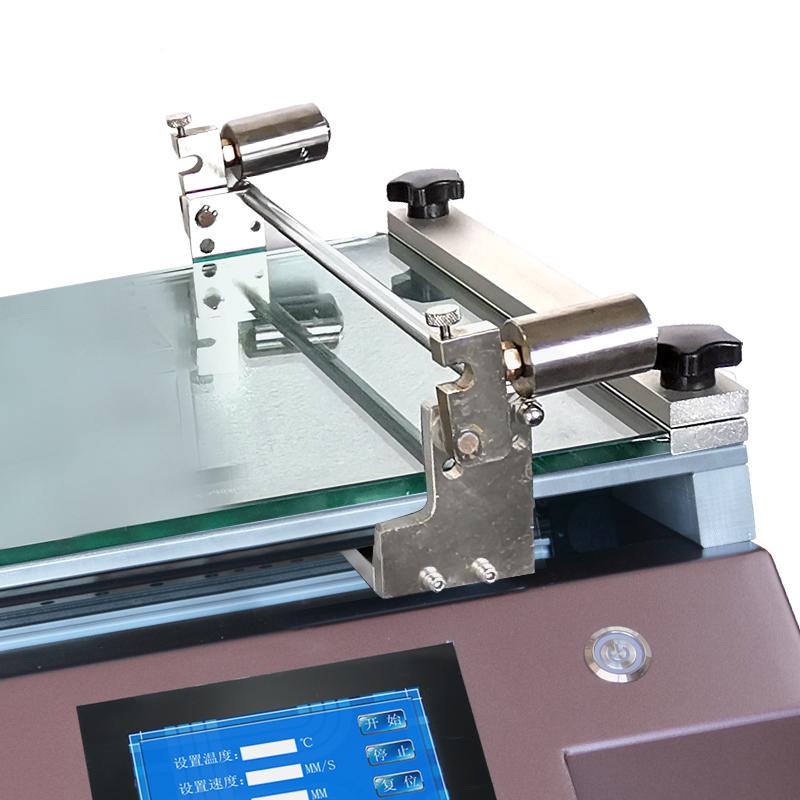

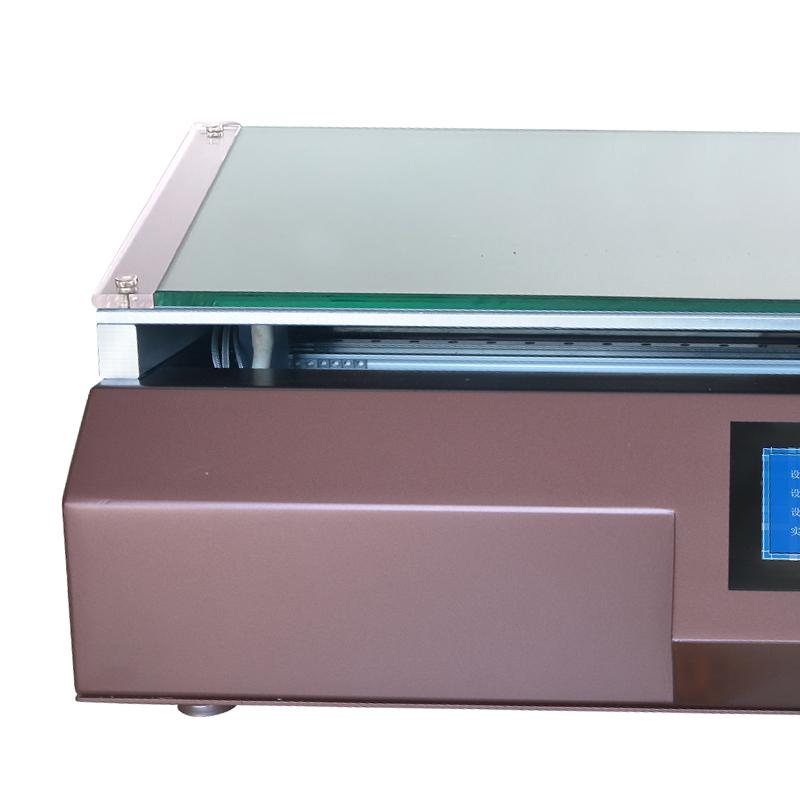

Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 1



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 2



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 3



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 4



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 5



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 6



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 7



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 8



Automatic small coater Coater Glue 2mm on Glass with Jeaner adjustable Coating Applicator Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
