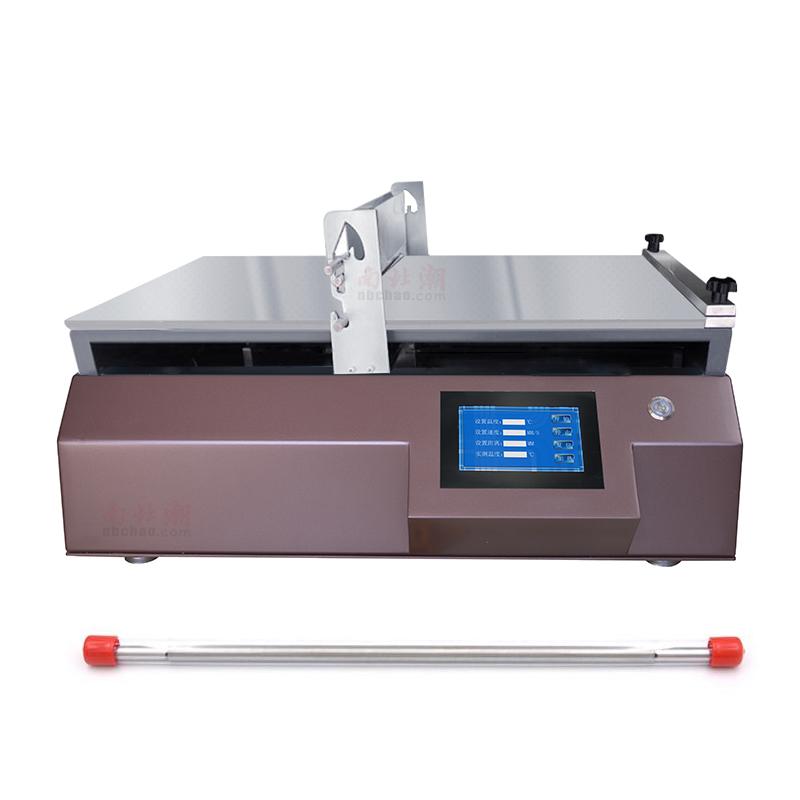

Experimental heating Film Applicator for release film scraping glue, with 6 micron imported wire rod
TBJ-X4+OSP-06/400
zy TBJ-X4+OSP-06/400 Automatic Film ApplicatorSPEC
zy TBJ-X4+OSP-06/400 Automatic Film ApplicatorDetails
zy TBJ-X4+OSP-06/400 Automatic Film ApplicatorPacking list
- SKU
- NB035868
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Coating size
- 300*400mm
- Spreader speed
- Digital display, different speeds
- Vacuum Area
- 300 * 400Mm (can be customized)
- Vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Coating rod specification
- 1 Accuracy 1μm China wire rod + 1 Accuracy 0.1μm imported wire rod, effective application width 300mm (Spreader thickness is determined according to the wire rod model)
- Host Power
- 220V 50Hz
- Dimensions
- 630*410*520mm
- Weight
- 65kg
- speed control
- Infinitely variable speed
- Bottom plate material
- aluminum alloy
- Heating temperature range
- RT+~200℃
- Temperature Uniformity
- ±3℃
- Power
- 1500W
- Vacuum pump size
- 380*180*280mm
- Optional
- Substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader)
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
product description
The experimental heating film coating machine is used to scrape-coat glue on the release film. The scraping film thickness is 6 microns, and the coating accuracy reaches 1 μm. It is a heated vacuum-type automatic coating machine. The bottom plate is made of aluminum alloy and has good thermal conductivity. sex.
The TBJ-X small coating testing machine for inspection all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.
This automatic coating machine comes standard with 1 domestic (CN) wire rod and 1 imported 6μm wire rod.
