JINGTIAN NDJ-5S digital display Rotational Viscometer with a small number of sample adapters

SE
JINGTIAN NDJ-5S digital display Rotational Viscometer measuring range 20~100000mPa·s, can display Viscosity, speed, temperature and other parameters, with eight speed, NDJ-5S Rotational Viscometer measurement accuracy is ± 1%, equipped with a small number of sample adapters, capacity 10~20mL.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-5S+SSA Digital Rotational ViscometerSPEC

JingTian NDJ-5S+SSA Digital Rotational ViscometerDetails

JingTian NDJ-5S+SSA Digital Rotational ViscometerPacking list

SKU
NB035870
Measuring range
20~100000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s)
Rotor Specifications
L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotors 1 piece each
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Capacity
10~20mL
Speed control method
Eight speed
NDJ-5S+SSA
Digital Rotational Viscometer

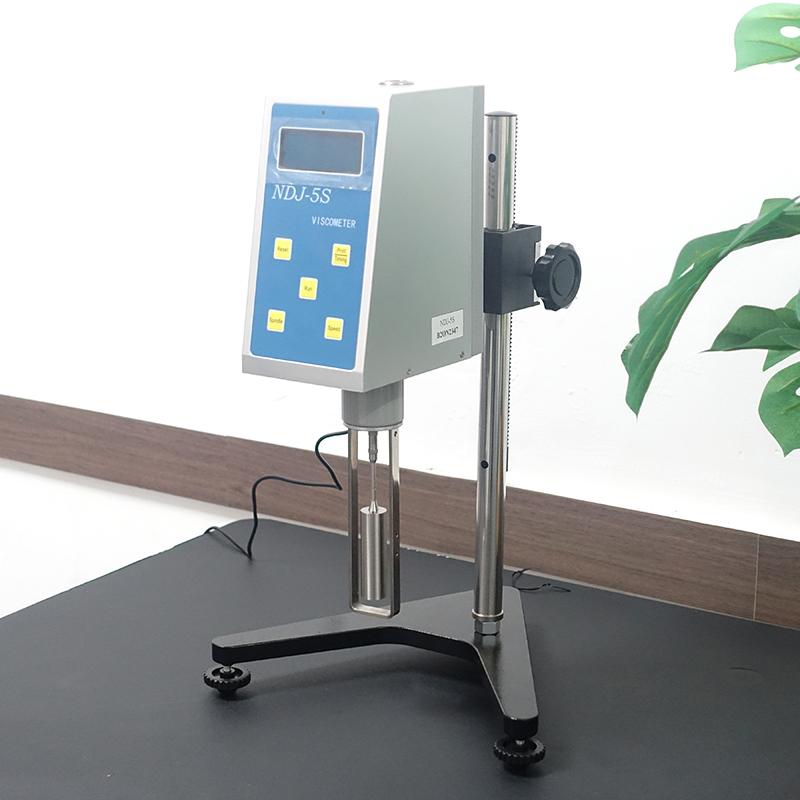

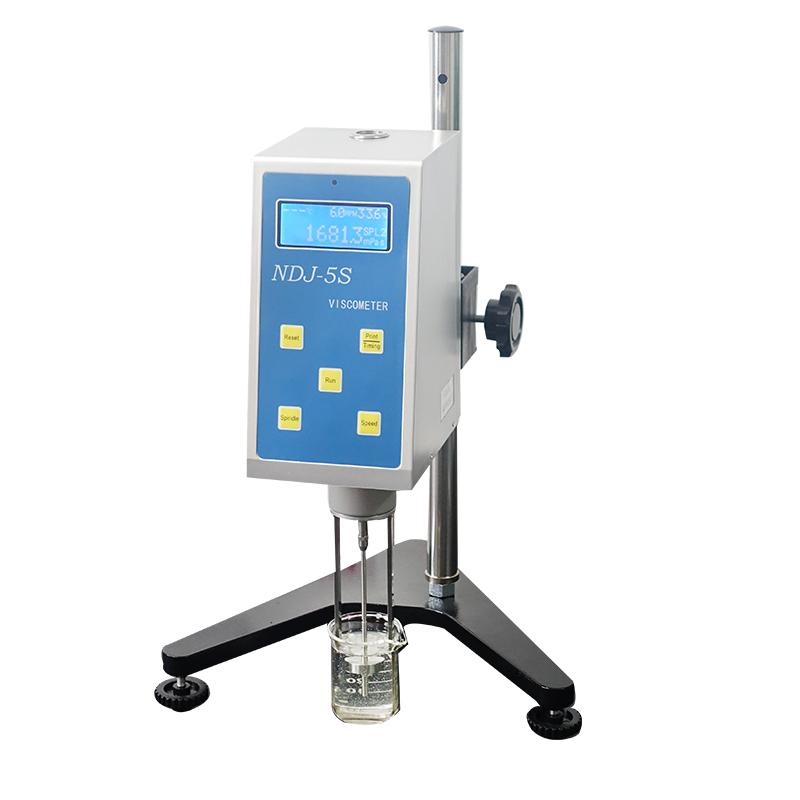

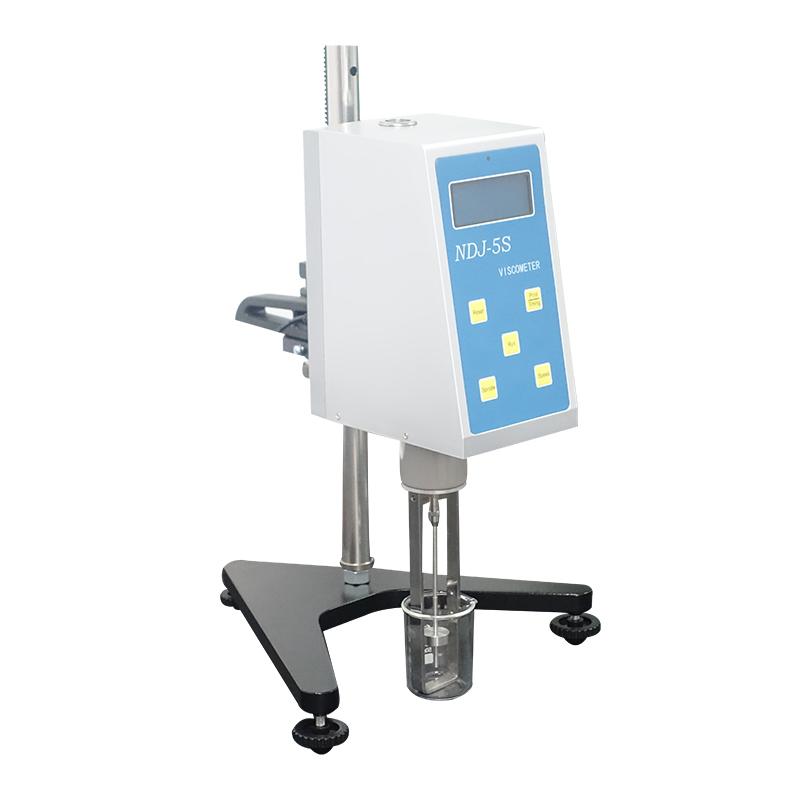

JINGTIAN NDJ-5S digital display Rotational Viscometer with a small number of sample adapters Picture

Introduction

The LCD of JINGTIAN NDJ-5S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display rotary viscometer with a measuring range of 20 to 100,000 mPa·s.

JINGTIAN NDJ-5S+SSA Digital Display Rotary Viscometer Details Figure 1

Introduction to Small Sample Adapters

  • With 21, 27, 28, 29 rotors each one

  • Small sample volume, only 10-20mL, especially suitable for expensive sample testing

  • A constant temperature bath connected with external circulation function can control the temperature of the tested sample

  • Easy to disassemble and clean

JINGTIAN NDJ-5S+SSA Digital Display Rotary Viscometer Details Figure 2

Viscometer structure diagram

JINGTIAN NDJ-5S+SSA Digital Display Rotary Viscometer Details Figure 3

FAQ
QWe do electronic wet chemicals and photoresists. The viscosity measurement requires a rotational viscometer. The range is within 2000mpas. Which Viscometer is recommended for wet chemicals can have more samples, and the photoresist sample volume is below 20ml.
A The lithography machine recommends ndj5s + ssa (a small number of sample adapters).
QDoes this have a data collection Communication interface?
A 232 interface can be installed.
QIs there any recommendation for measuring the viscosity of e-liquid?
A This one will do.
Q1~ 200,000 Viscometer for measuring cellulose, emulsion, etc. Which model is it?
A That NDJ-5S and NDJ-8S should be fine.
QThe same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?
A This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards
QMeasure the viscosity of latex, is this Viscometer suitable?
A Latex viscosity can be measured, please pay attention to choose the viscosity range suitable for your sample.
QI want to do a test on the GB/T22427.7 standard. Is this Viscometer okay?
A Sure
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
