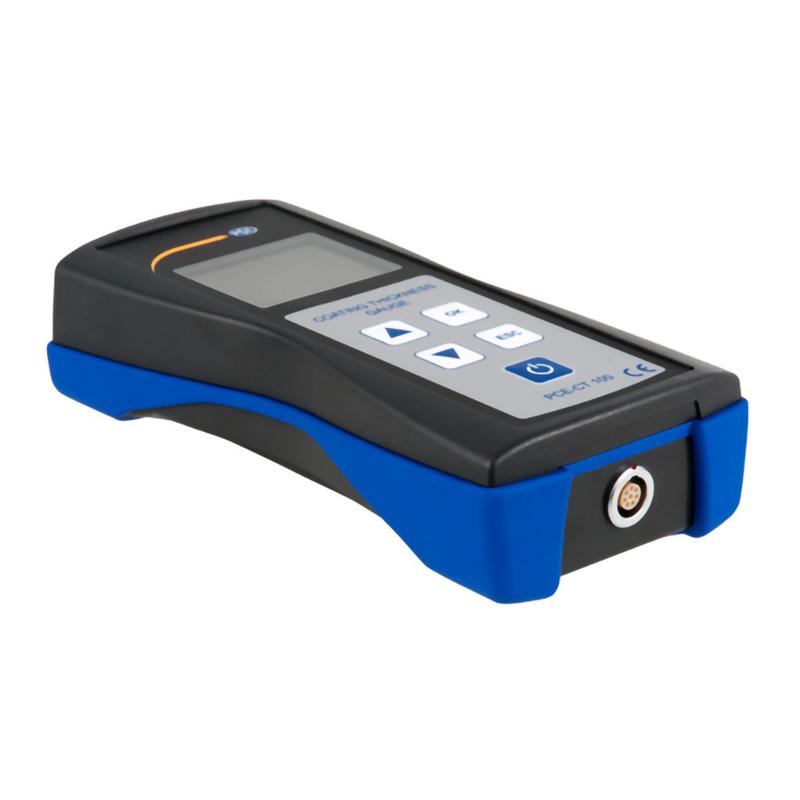

Germany PCE PCE-CT 100 Coating Thickness Gauge

Display High resolution color graphic display, backlight, operator guided menu drive, PCE-CT 100 Coating Thickness Gauge probe not included, must be booked separately.
Model：
Contact
Details SPEC

PCE PCE-CT 100 Coating Thickness GaugeSPEC

PCE PCE-CT 100 Coating Thickness GaugeDetails

PCE PCE-CT 100 Coating Thickness GaugePacking list

SKU
NB036257
Resolution
Readings of 0.1 pm or < 0.2% (detection range up to 1.5 mm) 1 pm or < 0.2% (detection range greater than 1.5 mm)
Display screen
High resolution color graphics display, backlit
system language
Menu-driven, available in English, German, French, Chinese
memory
Direct mode: F mode and N mode MAX Maximum each: 1000 readings Data file mode: MAX Maximum: 1000 readings
Calibrated mode
Engineering calibrated zero position adjustment (single point calibrated) foil calibrated (double point calibrated) double foil calibrated by Cal coating calibrated Cal-Through-Coat calibration
zero offset
Add a constant scale to the reading
statistical function
N, x^, a, Max, Min, Cp, Cpk, Kvar
Online statistics
N, x^, a, Max, Min
finite value
Debuggable audio signals and indicators on the monitor
interface
USB 2.0, Bluetooth 4.0
room temperature
0 ... 50 ℃
Power Supply
3 x batteries AAA 1.5 V
Dimensions
163*82*40mm
Weight
Approx. 290 g (including battery)
Protection level
IP52
PCE-CT 100
Coating Thickness Gauge
Display High resolution color graphic display, backlight, operator guided menu drive, PCE-CT 100 Coating Thickness Gauge probe not included, must be booked separately.

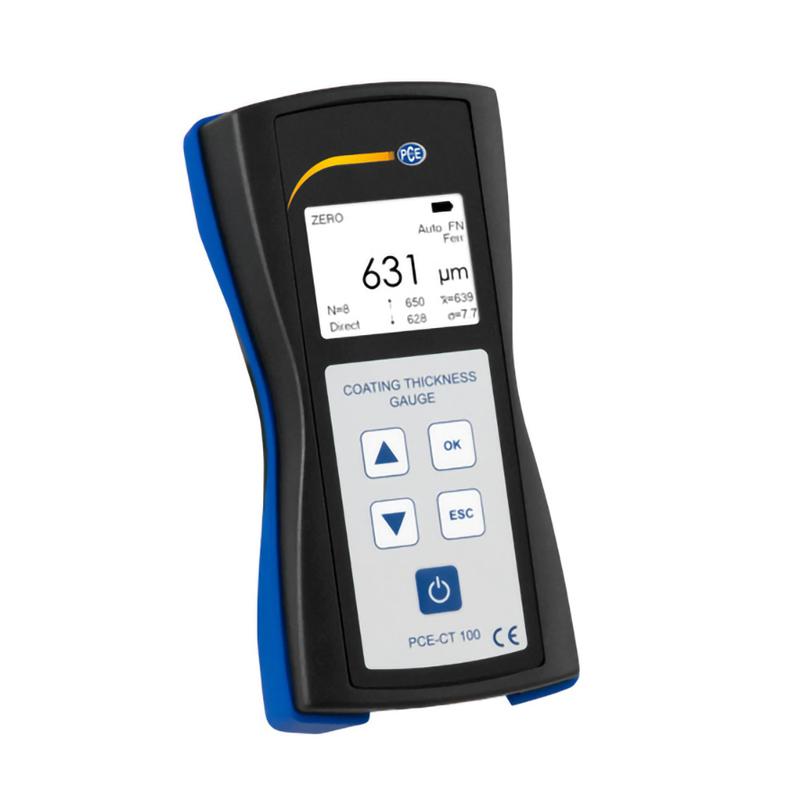

Germany PCE PCE-CT 100 Coating Thickness Gauge Picture

Introduction

The gauge meets the following coating thickness measurement standards:

DIN EN ISO 2178 ASTM B499 ISO 19840 Magnetic method: DIN EN ISO 2808


FAQ
QCan I measure the Coating thickness with oil stains on the surface?
A Measurement coatings need to remove oil from the surface for measurement.
