Germany PCE-950 Hardness Tester

The German PCE-950 Hardness Tester is used to measure the Hardness of 10 different types of metals. PCE-950 is a handheld Hardness Tester, which is suitable for the inspection of metal parts.
Model：
Contact
Details SPEC

PCE PCE-950 Hardness TesterSPEC

PCE PCE-950 Hardness TesterDetails

PCE PCE-950 Hardness TesterPacking list

SKU
NB036261
cast steel
HRC：19.8~68.5；HRB：59.6~99.6；HRA：59.1~85.8；HB：80~651；HV：83~976；HS：32.2~115
Forged steel
HB：143~650
Cold rolled steel
HRC：20.4~67.1；HV：80~898
stainless steel
HRB：45.5~101.7；HB：85~655；HV：85~802
Cast iron
HB：93~334
ductile iron
HB：131~387
aluminum alloy
HRB：23.8~84.6；HB：19~164
Brass
HRB：13.5~95.3；HB：40~173
bronze
HB：60~290
Copper alloy
HB：45~315
General Specifications Accuracy
±6HL at 730~790 HL；±10 HL at 490~570 HL
General specification repeatability
6 HL at 730~790 HL；10 HL at 490~570 HL
PCE-950
Hardness Tester

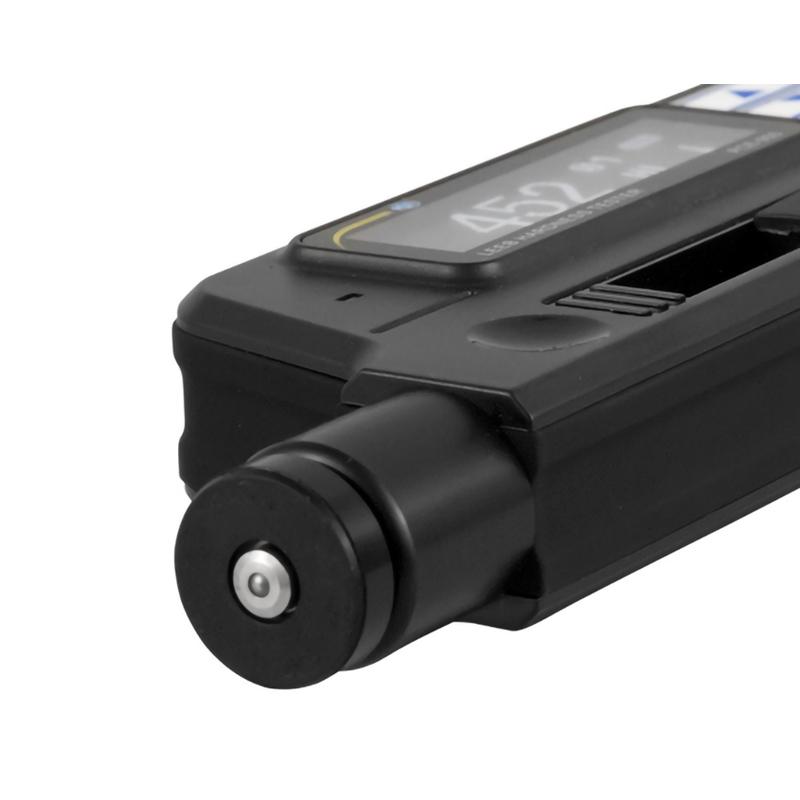

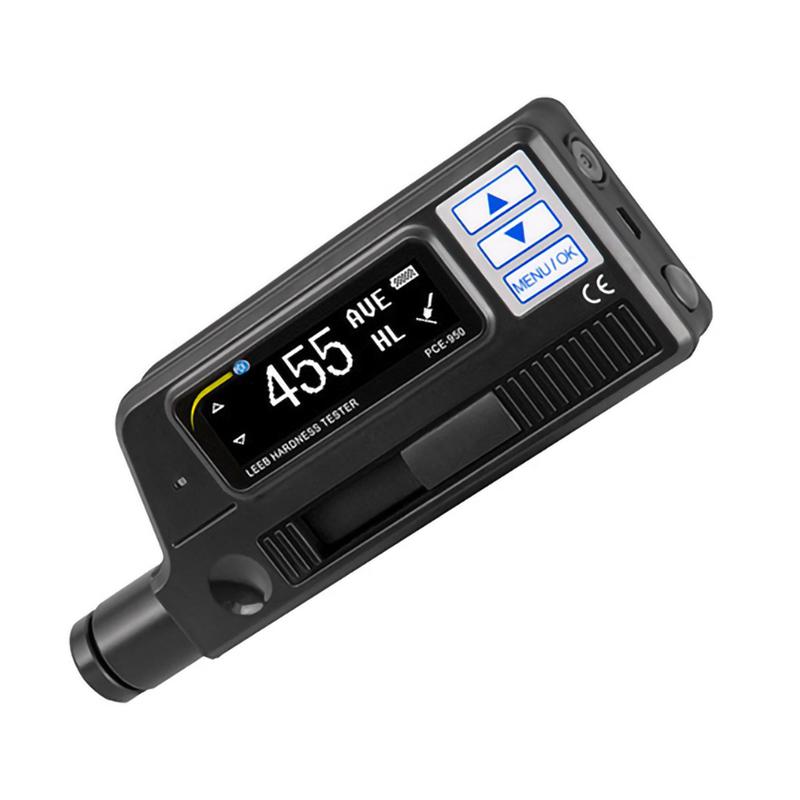

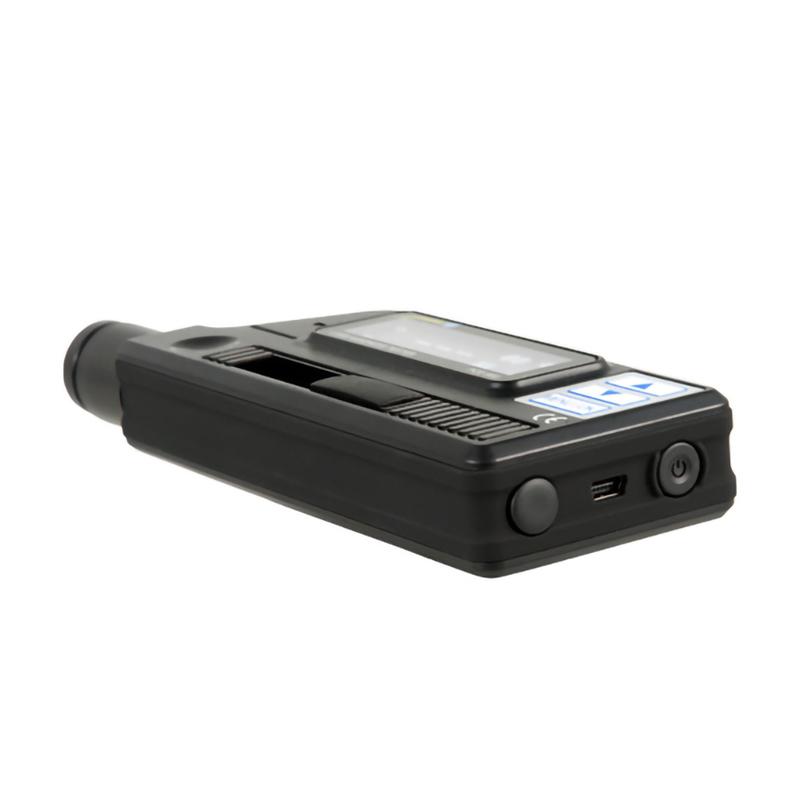

Germany PCE-950 Hardness Tester Picture

overview

The PCE-950 is a handheld Hardness Tester used to determine the hardness of 10 different types of metals. Cast steel, forged steel, cold-rolled steel, stainless steel, cast iron, ductile iron, aluminum alloy, brass, bronze and wrought copper alloys. In addition to the Leeb hardness unit (HL), the metal Hardness Tester displays hardness measurement units for hardness measurement Rockwell C, Rockwell B, Rockwell A, Brinell hardness, Vickers and Shore hardness. In this dynamic hardness testing method, a small carbide ball hits the test surface. The ratio of springback to impact velocity is directly related to the hardness of the material and can be converted to different hardness scales (i.e., HRC, HRB, HRA, HB, HV, HS).

Thanks to the gauge's compact pocket-shaped ergonomic design and integrated impact device, hardness testing can be performed quickly and easily in the field and on the production site. An internal memory provides storage of up to 600 readings and includes PC-compatible software and a USB cable allowing for simple and efficient data transfer to a computer file and analysis of hardness test results. The PCE-950 Hardness Tester is a tool needed by machinists and manufacturing quality control and assurance professionals for incoming and outgoing inspections of metal parts.

peculiarity

  • Measurement of all common hardness parameters

  • The external probe function allows the instrument to connect different probes with a specific cable and automatically identify them

  • The Bluetooth function can be connected to a Bluetooth printer to print data

  • Measuring range 170-960HLD
