Germany PCE PCE-RT 2000 Roughness Gauge
PCE-RT 2000
PCE PCE-RT 2000 Roughness GaugeSPEC
PCE PCE-RT 2000 Roughness GaugeDetails
PCE PCE-RT 2000 Roughness GaugePacking list
- SKU
- NB036264
- Detection principle
- Inductance
- Measurement range
- 200μm
- tip radius
- 5μm
- needle tip material
- diamond
- stylus force measurement
- 4mN(0.4gf)
- stylus angle
- 90°
- Longitudinal radius of guide head
- 45mm
- Maximum driving stroke
- 15mm
- Drive speed during measurement
- Sampling length = 0.25mm Vt = 0.135mm/s; sampling length = 0.8mm Vt = 0.5mm/s; sampling length = 2.5mm Vt = 1mm/s
- Drive speed on return
- V=1mm/s
- Error of indication
- Not more than +/- 10%
- Indication change
- Not more than 6%
Introduction

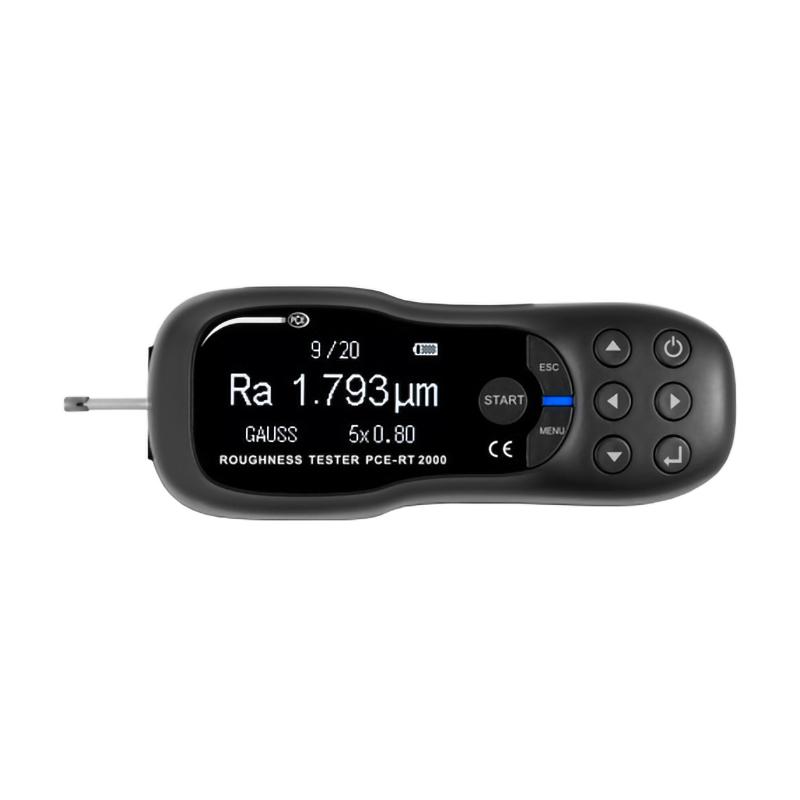

Portable surface roughness Tester for laboratories and production sites to measure the surface roughness of a wide range of machined parts,Multiple roughness parameters can be measured by simply pressing the – button, and the measurement results and contour patterns can be clearly displayed on the LCD display.
The use of rechargeable batteries facilitates fast, easy, and accurate field measurements in all environments and surfaces.
Features
Multiparameter measurements: Ra, Rq, Rsm, Rsk.: Rz, Rt, Rp, Rv, Rc
High-precision inductive sensors
GAUSS filter
Compliant with IS04287 and new DIN standards
128×64 dot matrix OLED, white
Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect, continuous working time of more than 20 hours
Mechatronics design, small size, light weight, easy to use
It has automatic shutdown, memory and various information
Curved surface sensors, small hole sensors, measuring platforms, extension rods and other accessories are optional
