Germany PCE PCE-RVI 2 V1L Viscometer/Laboratory University

PCE-RVI 2 V1L

Viscometer/Laboratory University

Measurement range 3 to 2,000,000 mPa.s/3 to 2,000,000 cP in 76 ranges; 19 to 4 spindles, temperature sensor Measurement range -15 to + 180 ℃/+ 5 to + 356 ° F, temperature resolution 0.1 ℃/0.1722 ° F, temperature accuracy +/- 0.1 ℃, accuracy +/- 1% of full scale (FS), Repeatability +/- 0.2% F. S, Power supply Voltage 100~240 V/50~60 Hz, current consumption 0.2 A, Operating temperature + 10~ + 40 ℃/+ 50~104 ° F, Relative Humidity < 80%, maximum altitude 2000 m/6,561 ft, size 3

Introduction

Rotational viscometers with temperature sensors measure liquid viscosity according to BS, ISO and ASTM standards

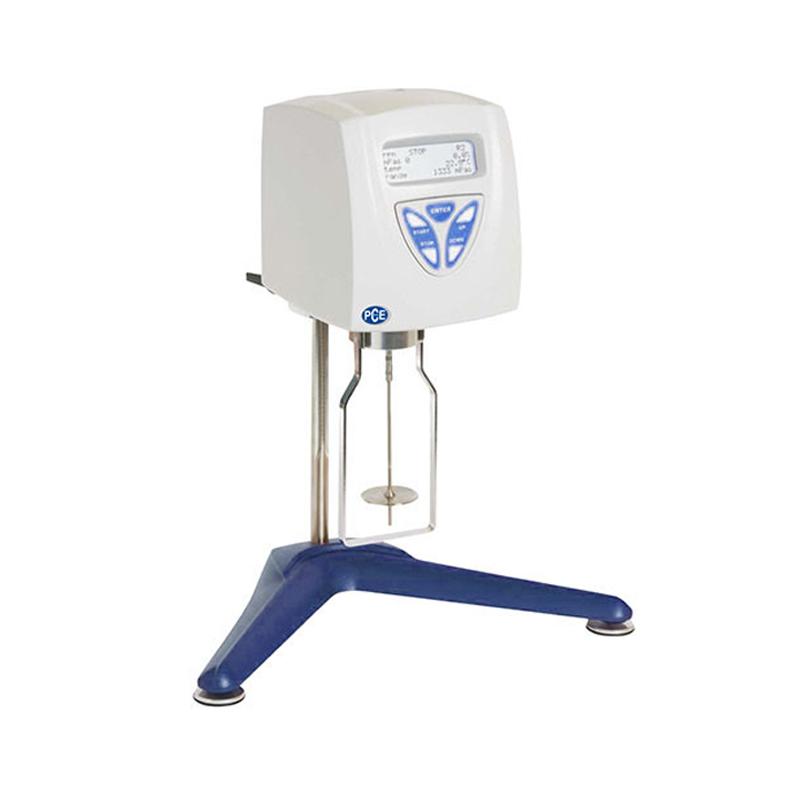

The PCE-RVI 2 V1L is a Rotational Viscometer for industrial and research applications to measure viscosity according to BS, ISO and ASTM standards. This digital viscometer is equipped with a plug-and-play sensor for temperature control to ensure accurate test results and is available with spindles L1, L2, L3 and L4 and the measurement results are displayed in millipascal seconds (mPa.s) or centipoise (cP), depending on the rotational speed and the type of spindle used.

Basic operations

Press the main switch to turn on the viscometer. Once the display shows the new saved parameters (spindle and rate), press the up or down button to find the applicable spindle and press the enter button to select it. Next, use the up and down buttons to find the rpm (rpm) and press the enter button to select it. The parameter "Range" informs you of the maximum measurable viscosity value for the selected spindle and speed. A "Press start" notification will appear. Make sure your sample is in place before pressing the start button, as the start button starts rotating the spindle and starts measuring.

Features

The PCE-RVI 2 Viscometer is used for testing, development, manufacturing, and quality control of coatings, coatings, paints, varnishes, adhesives, pastes, and liquid inks:

Testing, development, manufacturing and quality control as well as material research and viscometers for the food, chemical, coatings and cosmetics industries:

This classic viscometer is suitable for testing, development, manufacturing and quality control in the food, chemical and cosmetic industries, as well as in materials research:

Contains a bright, easy-to-read LCD digital display

A protective foam-filled hard plastic suitcase is included

Equipped with a temperature sensor for measuring the temperature of the sample or air

An integrated RS-232 interface or communication port is provided for sending results to the printer

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
