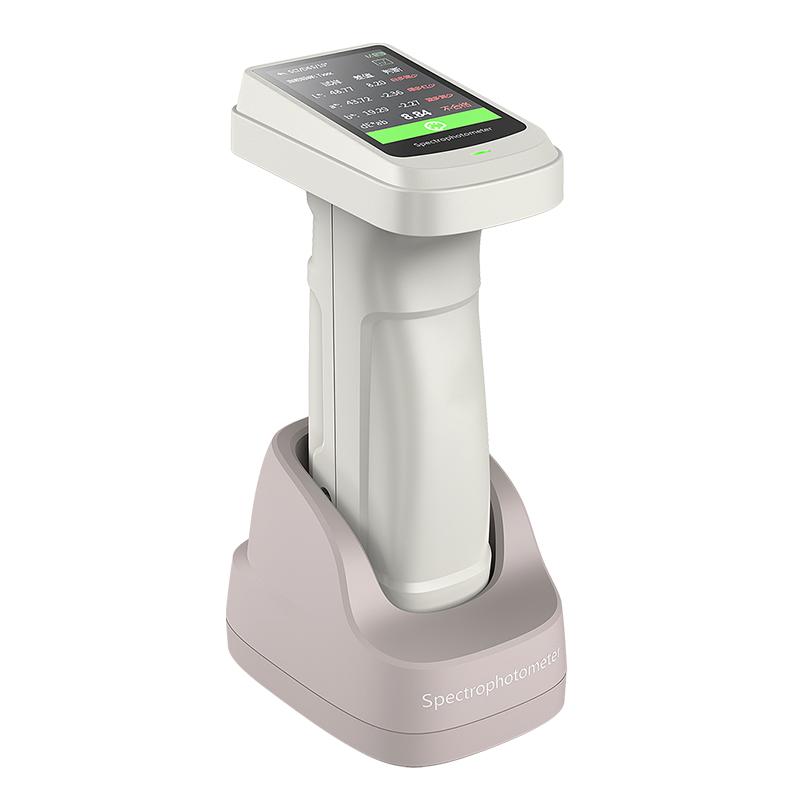

CHNSPEC DS-700D Portable Colorimeter 3 Calibers, Level 1 Measurement Certificate high-precision

DS-700D

Colorimeter

DS-700D has excellent inter-table difference and Repeatability. It adopts 360-700nm full-band LED Light source and is equipped with 3 measurement diameters to meet various measurements. It supports connecting computers to process data, and also supports Android, iOS and WeChat Mini Programs for data storage anytime and anywhere.

Spectrophotometer DS-700D has good inter-stage difference and repeatability, and the measurement data is accurate and reliable. It adopts 360-700nm full-band LED light source and is equipped with 3 measurement apertures to meet the measurement of various samples. It not only supports connecting to a computer to process data, but also supports android, ios and WeChat applets for data storage anytime, anywhere. Suitable for industries such as plastics, coatings, printing, food, textiles, printing and dyeing.

1)  Very good repeatability and inter-station difference : maximum repeatability: dE*ab≤ 0.04 , inter-station difference ≤ 0.25

The data is accurate and reliable, ensuring the consistency of measurement data from multiple devices, and can be used for color matching and accurate color transfer.

2)  Qualified through the first level of measurement

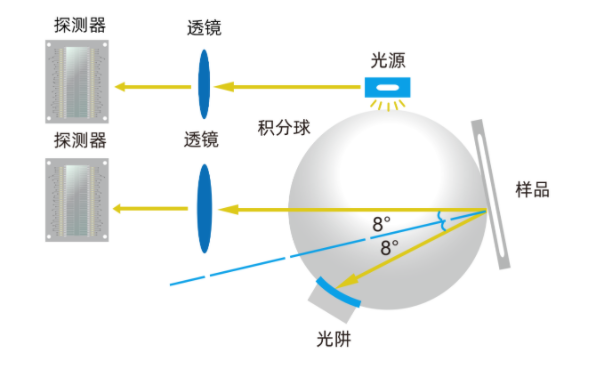

3)  Dual optical path array sensor

The dual optical path design monitors the energy fluctuation of the light source while measuring the sample signal, reduces interference during measurement, and obtains higher measurement stability. The use of large-area dual-array sensors provides higher spectral response sensitivity and ensures high standards for instrument measurement speed, accuracy, stability, and inter-stage difference consistency.

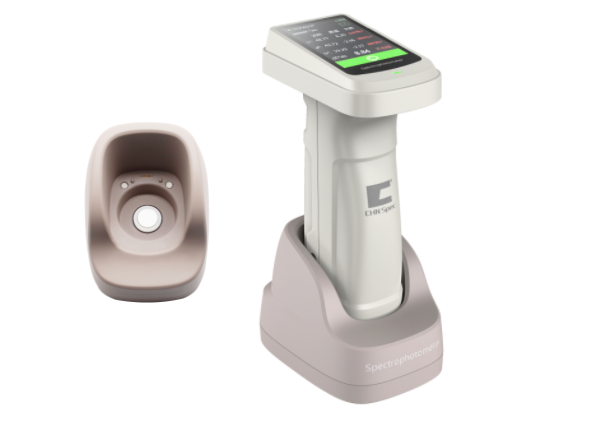

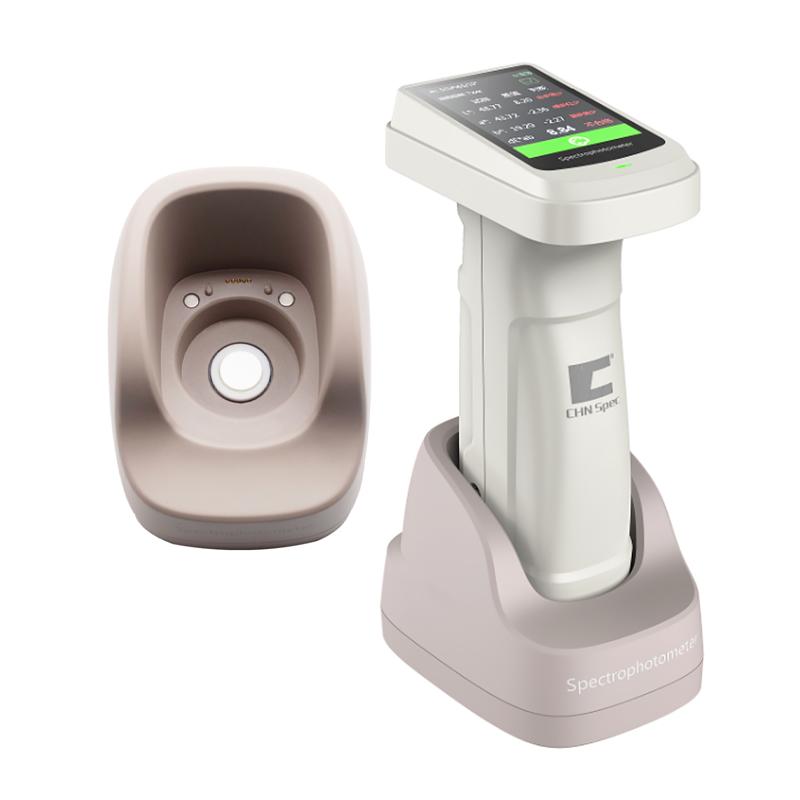

4)  Intelligent automatic calibration, the reference is ZrO2 with a reflectivity greater than 90% , no need for frequent whiteboard calibration

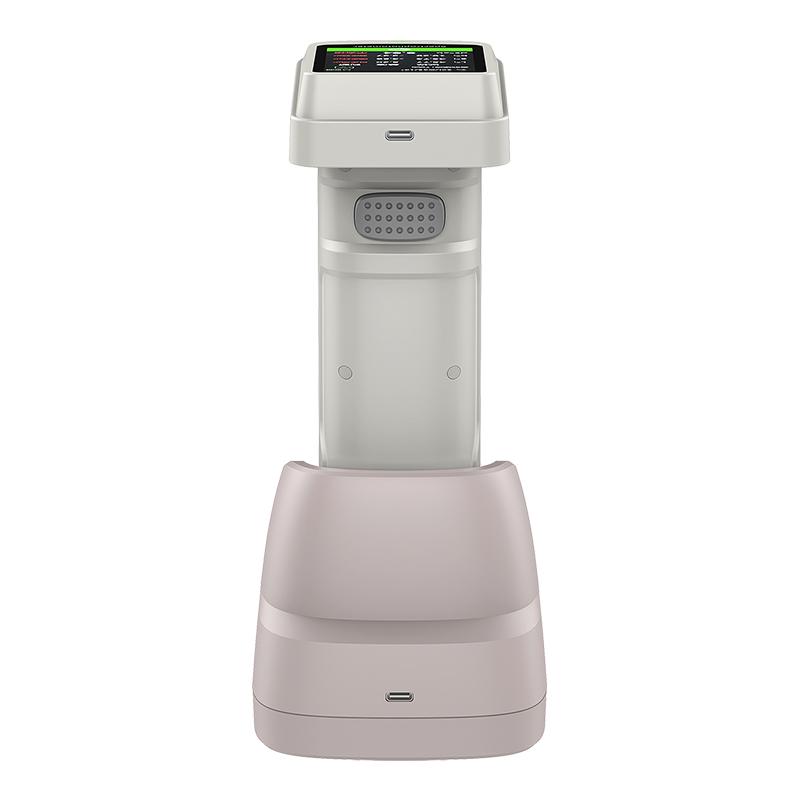

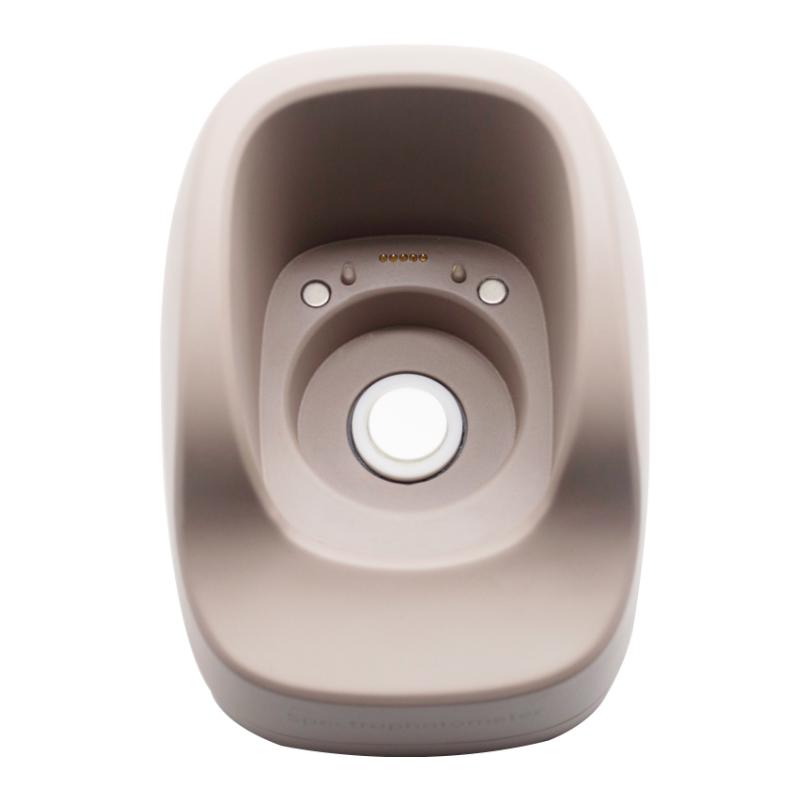

The instrument is placed on the intelligent calibration base, and the instrument can be automatically calibrated without manual intervention through the whiteboard on the base. It has changed the current situation that traditional instruments need to be calibrated manually by white board. The whiteboard made of ZrO2 with reflectivity R%>90% is used as the calibration standard, which ensures excellent mechanical strength and weather resistance, and will not cause scratches or discoloration after long-term use.

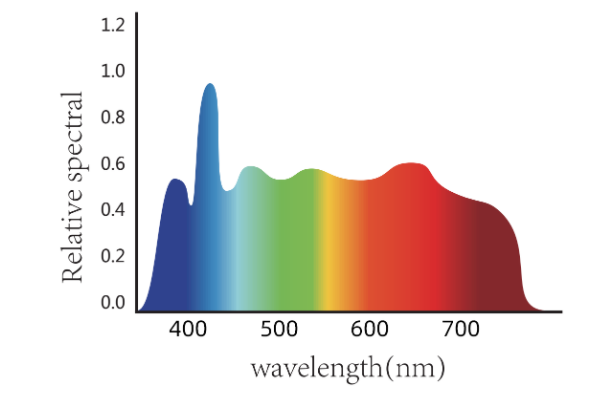

5)  360-700 nm full-band balanced LED light source and ultraviolet UV light source

The instrument uses a full-band balanced LED light source and UV light source as the lighting source, which ensures sufficient spectral distribution in the visible and ultraviolet ranges, and materials with fluorescent components can also be measured.

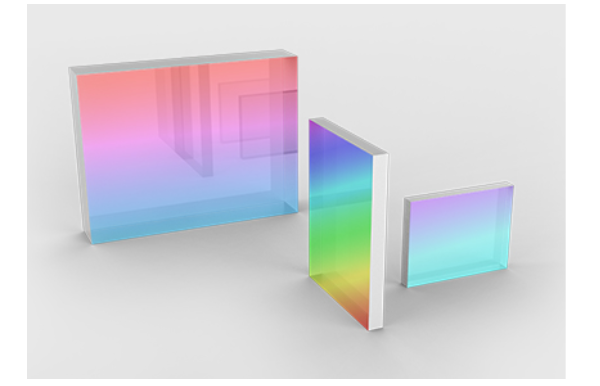

6)  10nm resolution grating spectroscopic technology

The grating combined with array sensor made by innovative MEMS technology makes color measurement more accurate based on 10nm spectral resolution.

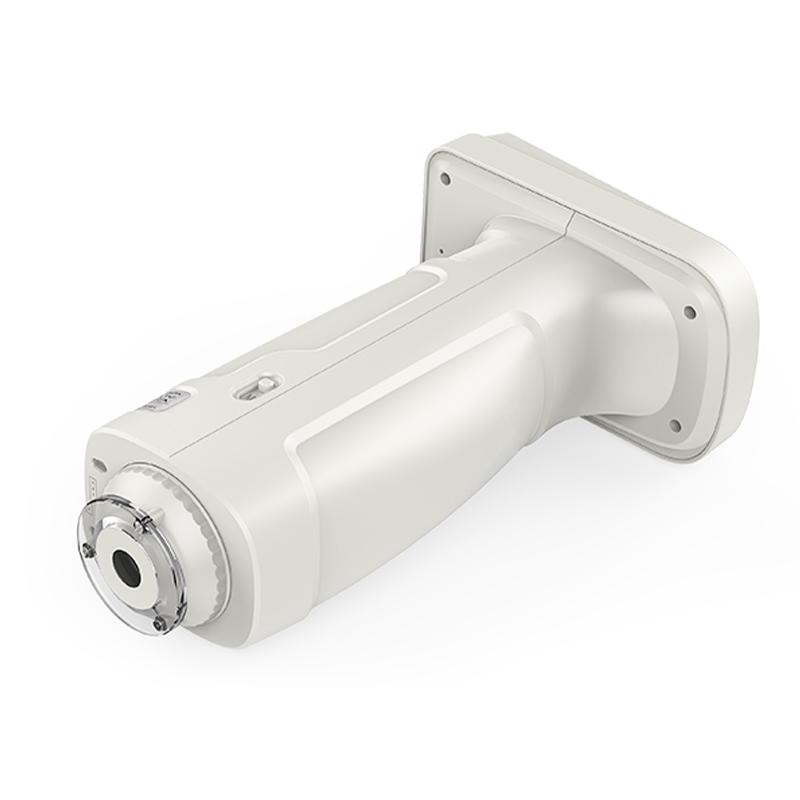

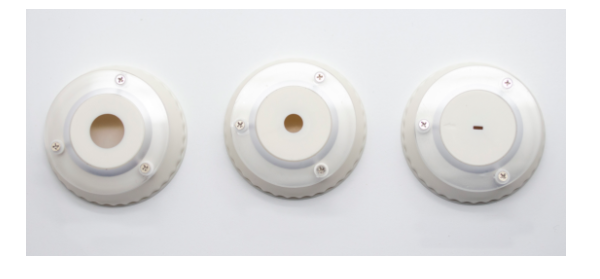

7)  Equipped with three measuring calibers, which can be replaced at any time without tools , meeting the measurement needs of various samples

The Spectrophotometer DS-700D comes standard with three measurement apertures of 8mm/4mm/1*3mm.

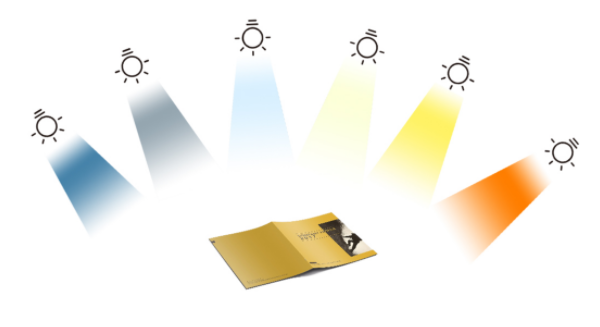

8)  Provide 30+ measurement parameters and 37 evaluation light sources

Provides a variety of measurement parameters and evaluation light sources that meet international standards. A variety of light sources and measurement indicators can be flexibly added through the mobile or PC program.

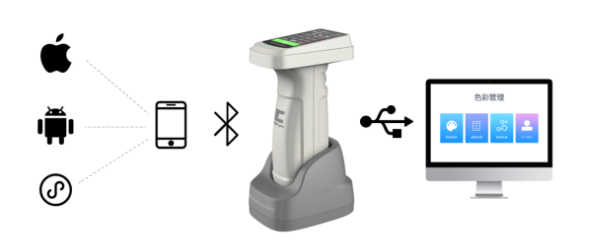

9)  Support Android , IOS , WeChat applet , Windows program

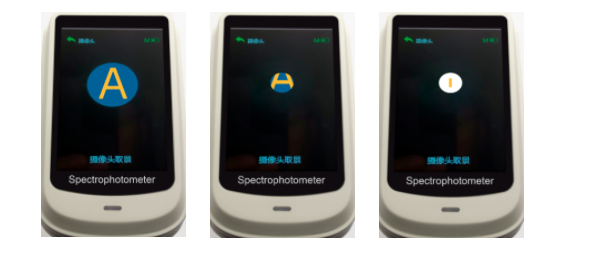

10)  Camera framing and positioning, can clearly observe the measured area

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
