YOUKE YK3051 horizontal and vertical combustion Tester (touch screen)

SE
YOUKE YK3051 horizontal and vertical combustion Tester is suitable for inspection and evaluation of combustion characteristics of plastic materials, YK3051 horizontal and vertical combustion Tester box volume ≥ 0.5 cubic meters, with Glass observation door, flame time 0~999.9 seconds can be set.
$1794.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

YouKe YK3051 Horizontal and vertical combustion Tester (touch screen)SPEC

YouKe YK3051 Horizontal and vertical combustion Tester (touch screen)Details

YouKe YK3051 Horizontal and vertical combustion Tester (touch screen)Packing list

SKU
NB036464
test space
≥ 0.5 cubic meters with Glass observation door
afterflame time
0~999.9 seconds can be set
afterflame time
0~999.9 seconds can be set
Combustion angle
20 °, 45 °, 90 ° (ie 0 °) adjustable
Combustion dimension parameters
The inner diameter of the nozzle is Ø 9.5mm, the effective length of the nozzle is 100mm, and there are air conditioning holes.
flame height
Adjustable from 20mm to 175mm according to standard requirements
Sample method
The front and rear of the motor drive are aligned with the spline up and down.
Control mode
PLC + touch screen automatic control and manual control + print test results (optional)
Safety Devices
The machine is equipped with a gas detection alarm device. When the gas concentration exceeds the normal value, the alarm device emits a sound and light alarm, cuts off the gas supply and starts the exhaust system to discharge the gas in the test chamber until the air Mass in the box returns to the normal value. The exhaust stops, and the Bunsen lamp returns to the origin.
Power
AC 220V/50H
Control mode
Touch screen control.
insulation grade
Class F
Protection class
IP20 (suitable for indoor use)
Fan noise
Below 45 decibels
Exhaust gas emission method
Side wind, top wind
Operating Mode
Can work continuously
Applicable environment temperature
-10℃～+50℃
Mobile mode
Adopt load-bearing universal casters, 2 at the front and rear
Applicable Relative Humidity
≤95%
altitude
≤ 2500 meters
YK3051
Horizontal and vertical combustion Tester (touch screen)

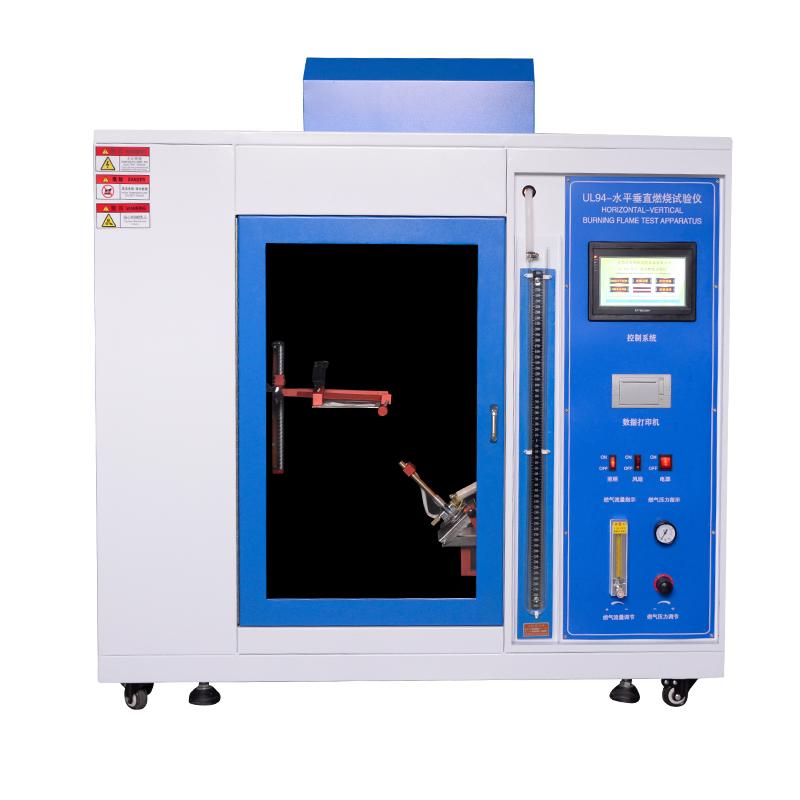

YOUKE YK3051 horizontal and vertical combustion Tester (touch screen) Picture

Guideline

UL94, GBT2408

Technical Description

This Tester is suitable for inspecting and evaluating the combustion characteristics of plastic materials. It is designed and manufactured according to the relevant provisions stipulated in the US UL94 standard and GBT2408 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". Carry out horizontal and vertical flammability tests, and is equipped with a gas flow meter to adjust the size of the flame, and the operation is simple and safe. This instrument can evaluate the flammability of materials or plastics, such as: V-0, V-1, V-2, HB, VTM-0 and other combustion levels.


FAQ
QI want to test the flame retardancy of plastic materials, such as V-0 and V-1. What instrument should I use?
A YK3051 horizontal and vertical combustion tester is specially designed according to UL94 and national standard GBT2408, which can automatically complete horizontal and vertical combustion tests, accurately evaluate common flame retardant grades such as V-0, V-1, V-2, HB, etc. The operation is simple and safe.
QWhat industries or scenarios is this instrument suitable for?
A It is mainly used in the Electronics, automotive parts and building materials industries, such as testing the flammability of materials such as plastic casings and connectors. Because these products have high safety standards, they must pass UL94 and other certifications to ensure that the material can self-extinguish or slow combustion in case of fire.
