YOUKE YK3659 Touch screen single column tensile machine 5KG

SE
YOUKE YK3659 touch screen single column tensile machine test capacity 5KG, force Precision is better than +/- 1.0%, force resolution 1/10000, effective force range 1~ 100% F. S, YK3659 touch screen single column tensile machine can test various materials and finished products, work in progress of physical performance.
$1387.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

YouKe YK3659 Touch screen single column tensile machineSPEC

YouKe YK3659 Touch screen single column tensile machineDetails

YouKe YK3659 Touch screen single column tensile machinePacking list

SKU
NB036468
display
liquid crystal display
Force measurement Accuracy
Better than +/- 1.0%
Force resolution
1/10，000
Effective force range
1~100%FS
Deformation indication Accuracy
Better than +/- 1.0%
Test speed range
50~500mm/min, can be adjusted arbitrarily
Test maximum stroke
Up to 600mm without fixture
Effective test space
Front and rear 120mm, left and right < unk >
Force unit
kgf, gf, N, kN, Ibf
stress unit switching
MPa，kPa，kgf/cm2，Ibf/in2
Deformation unit switching
mm，cm，in
Downtime mode
Upper and lower limit safety settings, emergency stop button, specimen damage sensing
Machine size
50×45×130cm(W×D×H)
Machine Weight
About 75kg
Power System
AC speed control motor
Power
AC220V, 50/60Hz, 10A or specified
YK3659
Touch screen single column tensile machine

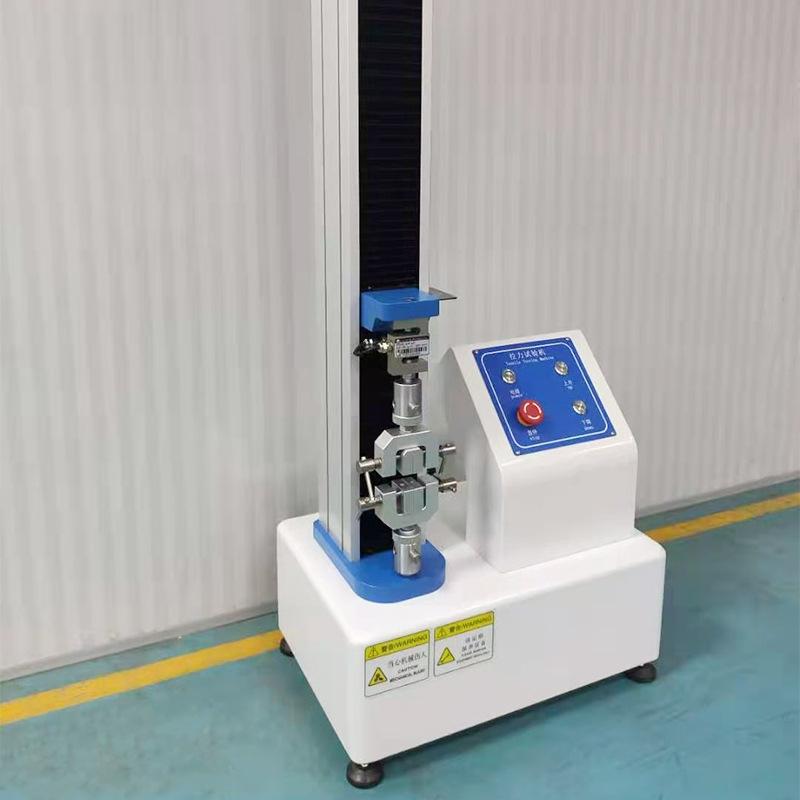

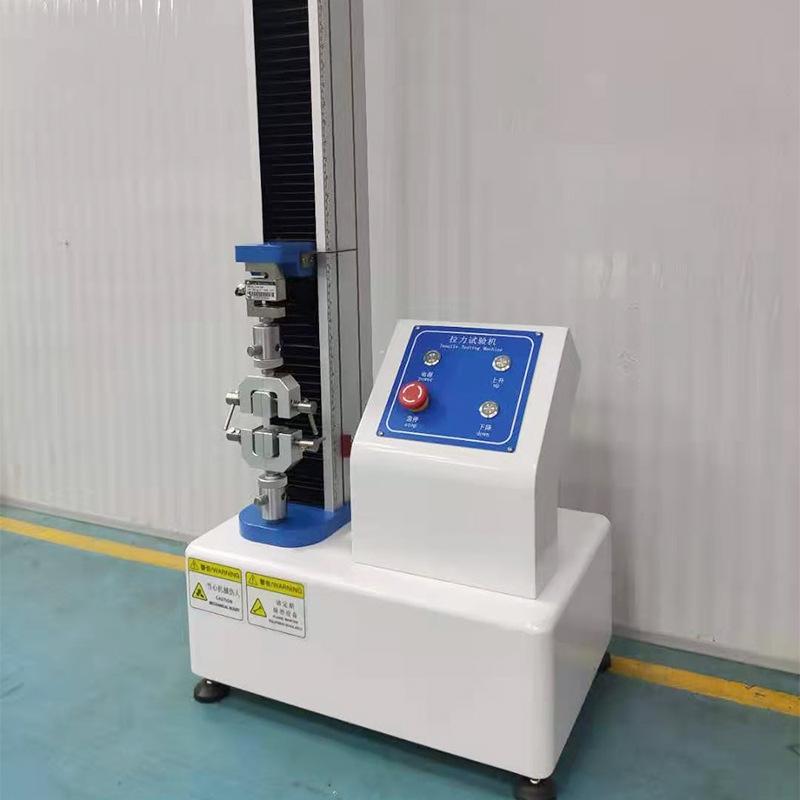

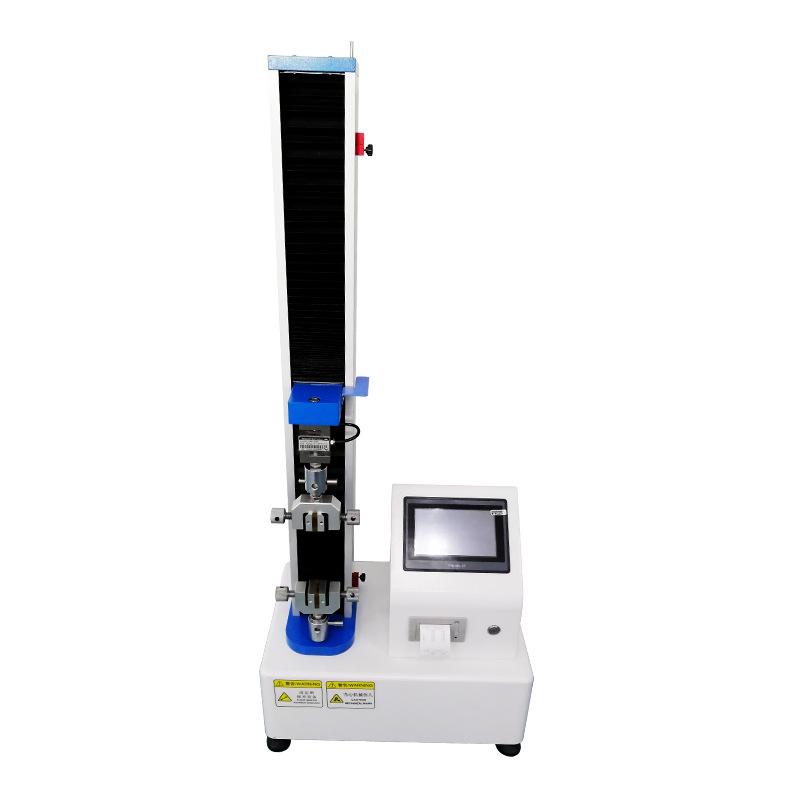

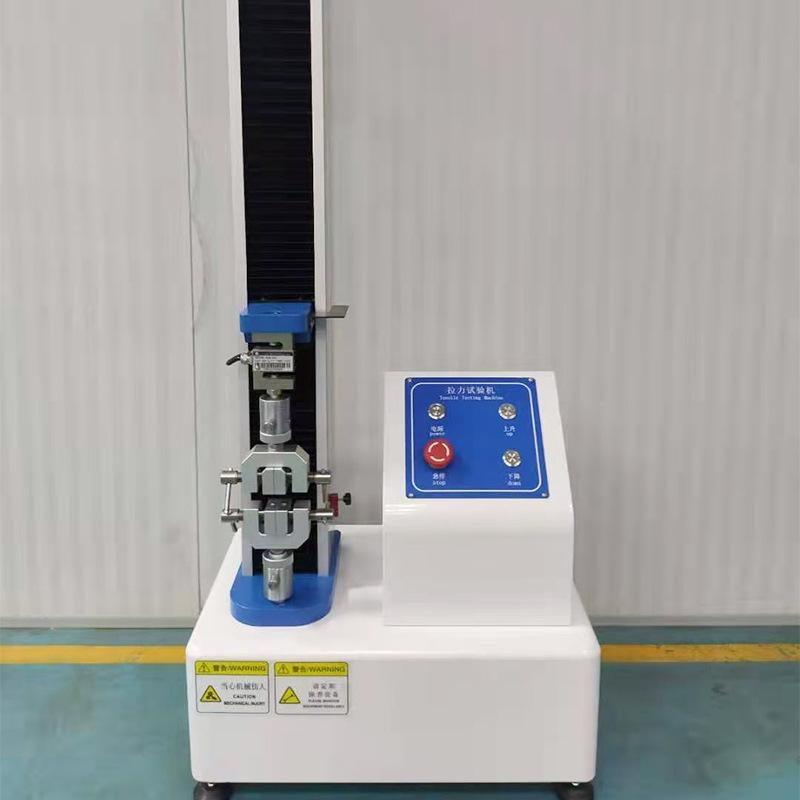

YOUKE YK3659 Touch screen single column tensile machine 5KG Picture

Functional Overview

This machine is suitable for industries such as rubber and plastics, paper products, color printing and packaging, adhesive tapes, bags and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. It can test the physical properties of various materials, finished products, and semi-finished products. You can choose various fixtures to do tensile, compressive, holding, holding, bending, tearing, peeling, adhesion, and shear tests.

This product changes the shortcomings of traditional material testing machines, such as bulky machine, complicated operation, and single performance. The calculation speed is high, and the test results can be displayed on the LCD or printed out by the printer. The product performance is stable and reliable, the measurement accuracy is high, and the operation is simple and easy to understand.


FAQ
QOur factory mainly does adhesive tape Peel Strength test, is this YK3659 UTM suitable?
A Suitable. YK3659 Touchscreen single column UTM is easy to operate and has high Test accuracy. Standard or optional disbonding fixture can accurately measure the adhesive force and disbonding force of the adhesive tape to meet your testing needs.
QOur laboratory space is limited and we need to measure the tensile strength of Spinning & weaving fabrics. Will this machine be too large?
A No. This machine is compact in design, with a body size of only 50 * 45 * 130cm and a weight of about 75kg, which saves space compared to traditional bulky models. It effectively travels up to 600mm and can meet the physical performance tests such as stretching and tearing of materials such as Spinning & weaving fabrics.
QWe need to test the tensile and voltage holding performance of the wire connector, is it functional?
A Yes. YK3659 can perform a variety of tests such as tensile, tensile, compression, and pressure through the selection of different fixtures. Its measurement and control system has high accuracy and adjustable speed, which is suitable for the inspection of mechanical properties of finished products and joints working in progress in the wire and electronics industry.
