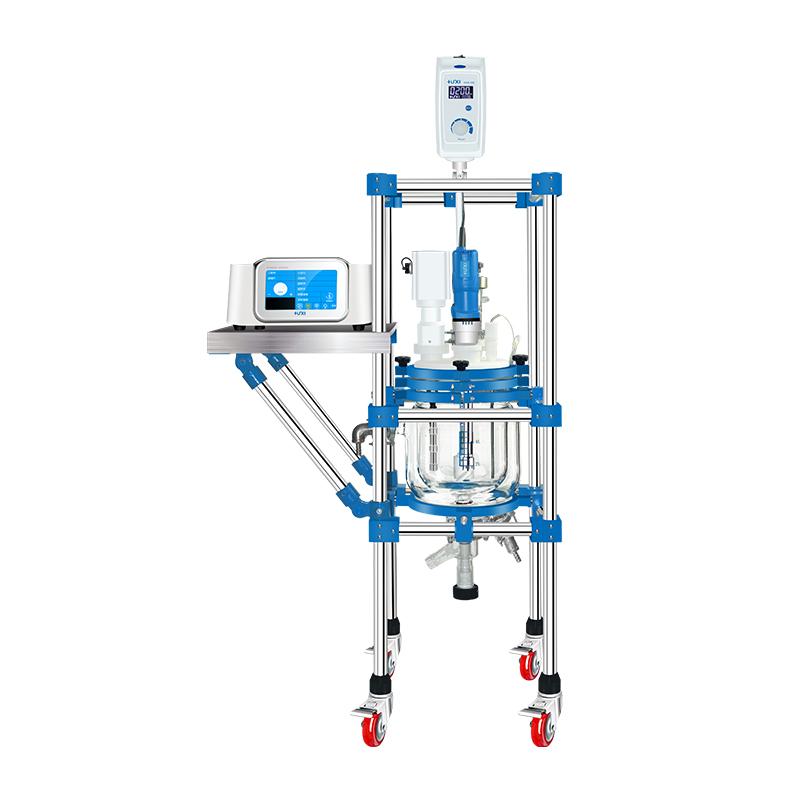

HX-CF5 Ultrasonic Reactor 5L

HX-CF5

Ultrasonic Reactor

220V50HZ, kettle body capacity 5L, kettle mouth number 5, kettle cover diameter 180mm, kettle body length 400mm, Stir power 60W, speed 50~600rpm, ultrasonic power 1800W, horn φ20 * length 260mm

Applications

Ultrasonic reactor is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquids and ultrasonicize substances, which can be used for the fragmentation of a variety of animal and plant cells and virus cells, and can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions. It is widely used in biochemistry, microbiology, chemistry, surface chemistry, physics, zoology and other fields.

Features

• Ultrasonic has high security, with overtemperature, overload and time alarm functions, and has user password protection function;

• Ultrasonic intelligent storage, which can create and store up to 20 sets of operating programs;

• Flexible parameters, ultrasonic time, continuously adjustable power, good stability, to meet the needs of different crushing capacity;

• Remote control, the ultrasonic host is equipped with a remote monitoring communication interface, which can realize the remote control of the machine start and stop on the computer;

• Wide processing range, different types of instruments can be adapted to the needs of different customers, with 5-50L capacity options;

• The mixer has a timing function, and the brushless motor is noiseless and not hot;

• The homogenizing emulsifier can be used for up to 4 hours, no need to use intermittently, and the A-G gear adjustment is convenient and fast;

• The process is intuitive, there is no obstruction in front of the glass reactor, and the reaction process is clear at a glance;

• Space-saving, stacked stand design saves lab space;

• The glass parts are made of high borosilicate glass, which has excellent corrosion resistance, high-low temperature resistance. At the same time, the linear expansion coefficient is low and can withstand large thermal shock;

• Detachable discharge valve to facilitate the discharge of reactor materials;

• All parts in contact with the liquid are made of high borosilicate glass or PTFE material, which has excellent corrosion resistance;

• Homogenization emulsification, sonication, vortex stirring can be performed at the same time, or any function can be turned on separately.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
