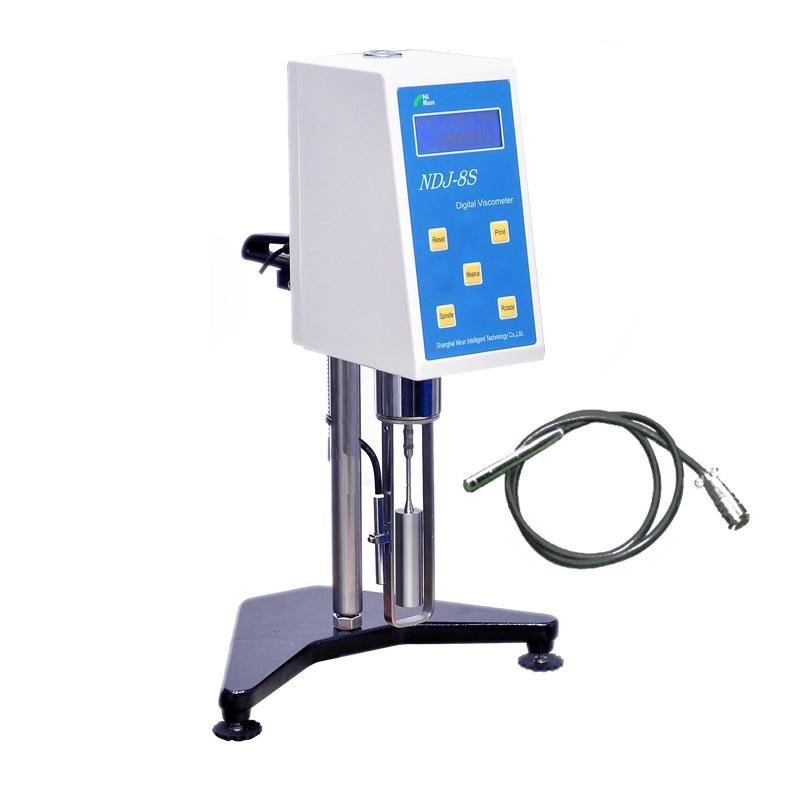

NIRUN NDJ-8S Digital Viscometer with RTD Temperature Probe

NIRUN NDJ-8S digital Viscometer is an upgraded replacement of the original mechanical NDJ-4 Viscometer. The machine is equipped with an RTD temperature probe for more accurate temperature measurement, 10~2 million mPa • s, and the digital viscosity meter is equipped with a variety of rotors.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

NiRun NDJ-8S+RTD Digital ViscometerSPEC

NiRun NDJ-8S+RTD Digital ViscometerDetails

NiRun NDJ-8S+RTD Digital ViscometerPacking list

SKU
NB036711
Display
digital display
Measuring range
10~2000000mPa·s
Rotor Specifications
1#、2#、3#、4#
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Display
Digital LCD liquid crystal with blue backlight
Temperature transducer
RTD temperature probe
Weight
7kg
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~400ml
Capacity
400Ml (self-prepared)
Lifting system
PE lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
Encasement
aluminum alloy
NDJ-8S+RTD
Digital Viscometer
NIRUN NDJ-8S Digital Viscometer with RTD Temperature Probe Picture

Technical advantages

  1. Applying NIRUN 's patent, it overcomes the disadvantage of domestic (CN) instruments that can only sample once in one revolution, and realizes the technology of multiple sampling in one revolution.

  2. High subdivision drives the stepper motor to rotate, the speed is accurate and stable, and the frequency change of AC Voltage does not affect the accuracy of viscosity measurement.

  3. For thixotropic non-Newtonian liquids, the timing function of the instrument can ensure good consistency data.

  4. Direct drive by stepping motor, no noise, convenient speed change, clear speed display, good reliability, no jitter phenomenon.

  5. LCD liquid crystal with blue backlight function, directly displays the viscosity, speed, percent torque, and the maximum viscosity value of the rotor that can be measured at the current speed. Viscosity values show a continuous change. There is an alarm sound prompt when the measurement range is exceeded.

  6. Computer full scale linear calibration, measurement accuracy is ±1.0% of full scale.

  7. Switching power adapter, wide power input, good anti-interference.

  8. Optional RTD temperature probe, real-time monitoring of sample temperature.

  9. Optional RS232 interface, real-time printing of sample measurement data through a micro-printer, saving labor.

Application

NDJ-8S digital viscometer is suitable for ink, glue, latex , solvent - based adhesive , polymer solution , petroleum , paint , solvent , cosmetic , milk product , medicine , fruit juice and so on.

Pictures

NIRUN NDJ-8S+RTD Digital Viscometer Details Figure 1

Optional

Ultra Low Viscosity Adapter (Spindle 0)

micro printer

Special viscosity constant temperature Water Tank

RTD temperature probe

standard oil

remote control

FAQ
QAdhesive viscosity, water-based glue
A Test glue, no special requirements, NDJ-8S can
QCan the Viscometer run continuously for a long time? Prepare for measurement Coatings over time, changes in viscosity, continuous measurement for 12 hours
A No.
QDo you have a suitable model for the viscometer in the cosmetics industry?
A You can contact customer service to provide more detailed selection information, so as to help you better choose the right Viscometer.
QIs the temperature detection on this NDJ Viscometer external or internal?
A external
QIs there a recommended viscosity test for sauces?
A You can use NDJ-8S for this.
